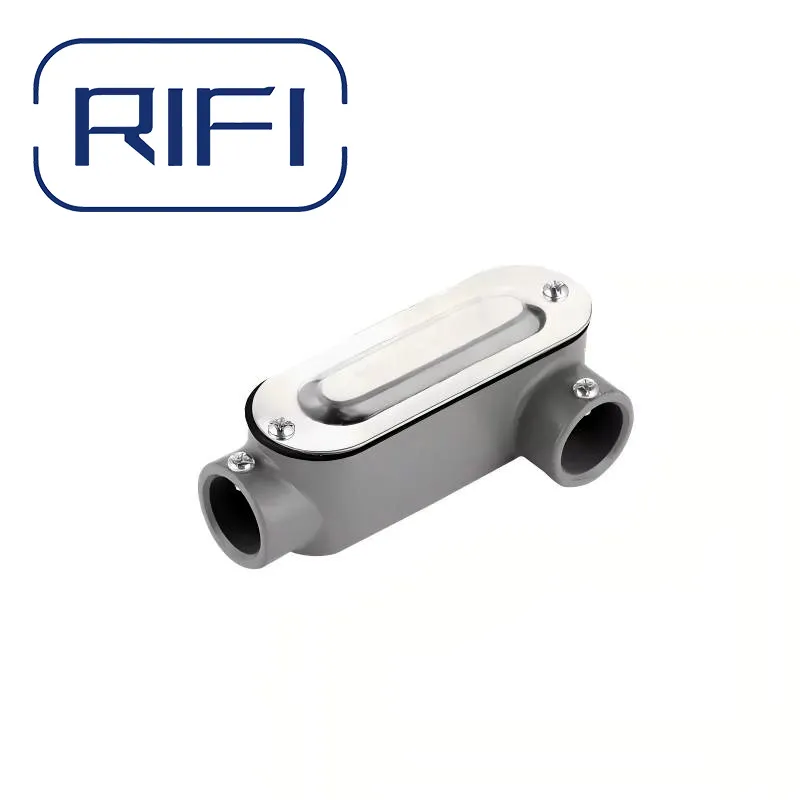

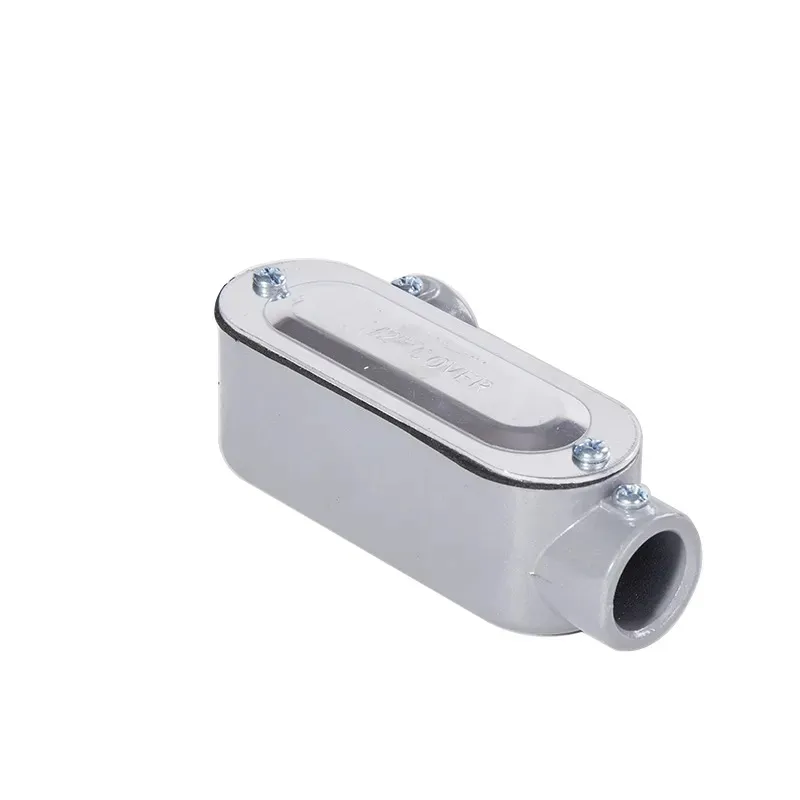

EMT Conduit Body LL Type
Product Description
The LL Type EMT Conduit Body is an essential electrical conduit fitting designed for left-hand 90-degree conduit turns while providing easy access for wire pulling, inspection, and maintenance.
It is widely used in industrial, commercial, and infrastructure electrical systems, especially where space is limited and frequent cable access is required.
Manufactured from high-quality metal materials, the LL conduit body ensures mechanical strength, corrosion resistance, and long service life, making it suitable for both indoor and outdoor installations.
.
Specification
Product Type: EMT Conduit Body – LL Type
Outlet Direction: Left-hand
Material: Die-cast Aluminum / Malleable Iron
Size Range: 1/2"-4"
Type: Set Screw Type
Cover: Removable with screw fixing
Gasket: Optional (weatherproof use)
Finish Options:Powder coated/Electro-galvanized
| CAT# | Trade Size |
| ELL050 | 1/2" |
| ELL075 | 3/4" |
| ELL100 | 1" |
| ELL125 | 1-1/4" |
| ELL150 | 1-1/2" |
| ELL200 | 2" |
| ELL250 | 2-1/2" |
| ELL300 | 3" |
| ELL400 | 4" |
Application
- Industrial electrical conduit systems
- Commercial buildings and data centers
- Power distribution and control wiring
- Outdoor electrical installations
- Cable routing in confined or complex layouts
Packing
- Standard export carton packing
- Pallet packing available
- Customized packaging with logo and labels (OEM / ODM supported)
- Suitable for sea freight and long-distance transportation
Advantages
- Optimized internal space for smooth wire pulling
- Precise threading ensures secure conduit connection
- Strong corrosion resistance for harsh environments
- Easy installation and maintenance
- Ideal for wholesalers, contractors, and electrical distributors
