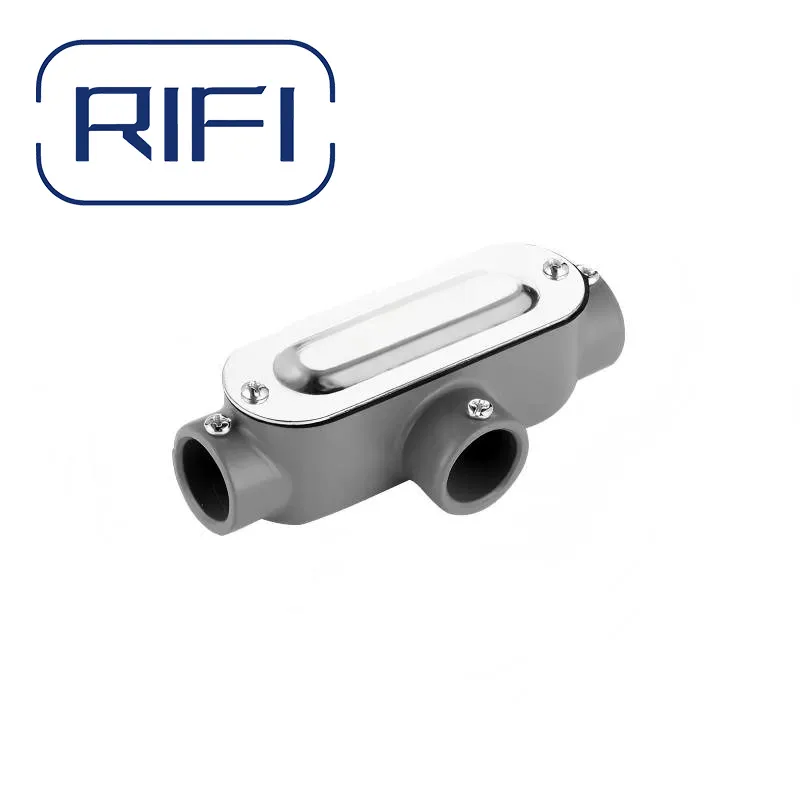

EMT Conduit Body T Type
Product Description
The T Type EMT Conduit Body allows three-way conduit connections, enabling flexible cable branching while providing convenient access for installation and inspection.
Specification
Product Type: EMT Conduit Body – T Type
Connection: Three-way
Material: Die-cast Aluminum / Malleable Iron
Size Range: 1/2"-4"
Type: Set Screw Type
Cover: Removable with screw fixing
Gasket: Optional (weatherproof use)
Finish Options:Powder coated/Electro-galvanized
| CAT# | Trade Size |
| ELT050 | 1/2" |
| ELT075 | 3/4" |
| ELT100 | 1" |
| ELT125 | 1-1/4" |
| ELT150 | 1-1/2" |
| ELT200 | 2" |
| ELT250 | 2-1/2" |
| ELT300 | 3" |
| ELT400 | 4" |
Application
- Industrial electrical conduit systems
- Commercial buildings and data centers
- Power distribution and control wiring
- Outdoor electrical installations
- Cable routing in confined or complex layouts

Packing
- Standard export carton packing
- Pallet packing available
- Customized packaging with logo and labels (OEM / ODM supported)
- Suitable for sea freight and long-distance transportation

Advantages
- Optimized internal space for smooth wire pulling
- Precise threading ensures secure conduit connection
- Strong corrosion resistance for harsh environments
- Easy installation and maintenance
- Ideal for wholesalers, contractors, and electrical distributors
