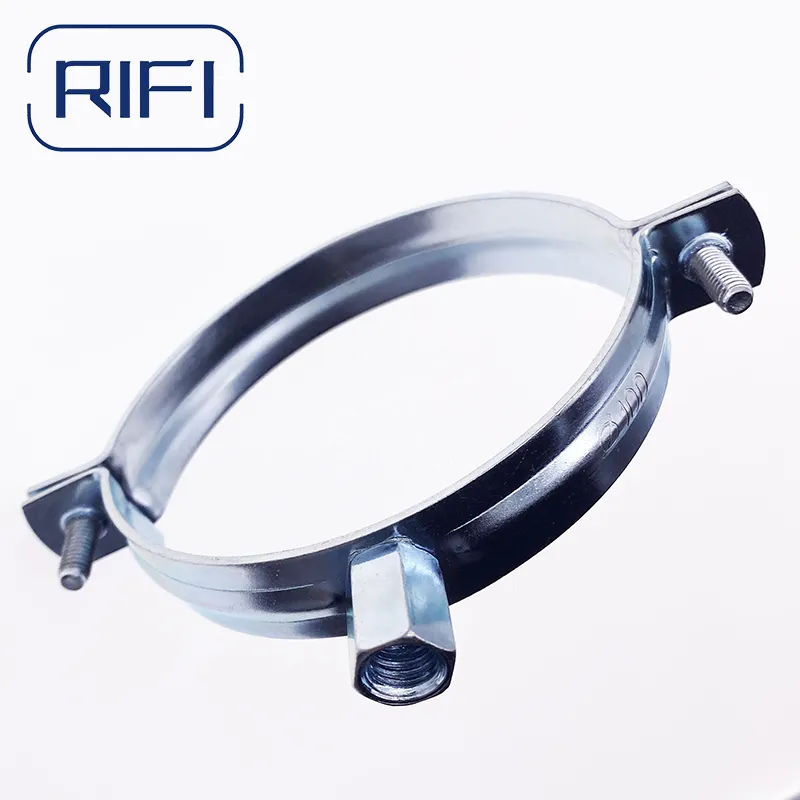

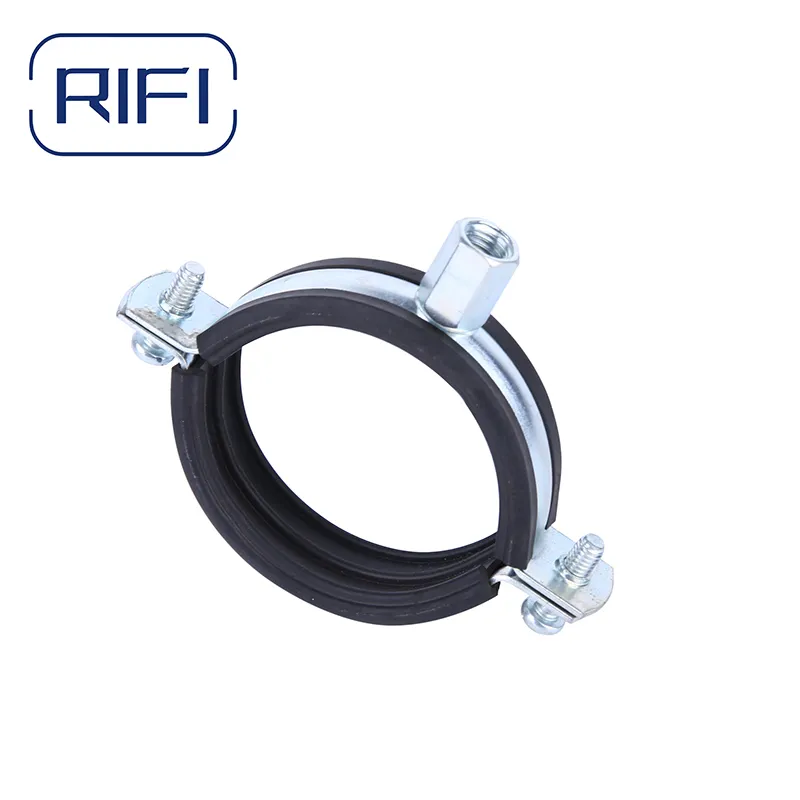

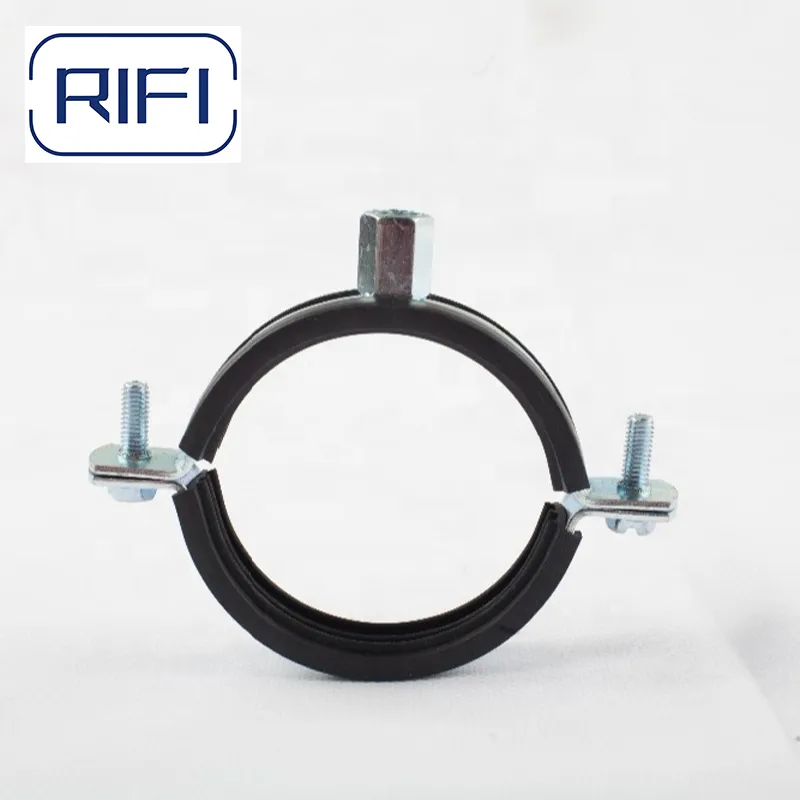

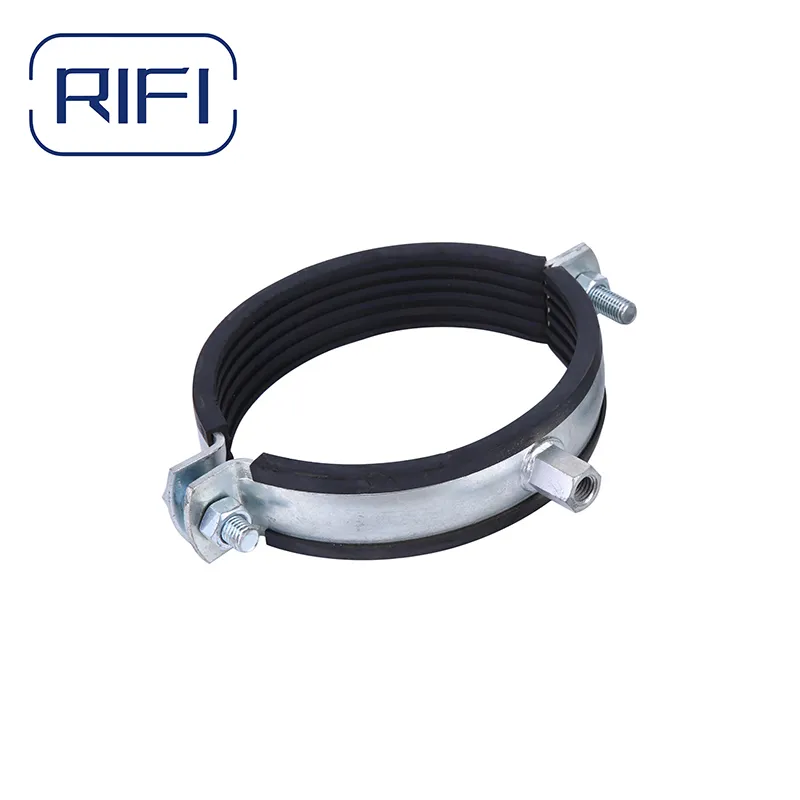

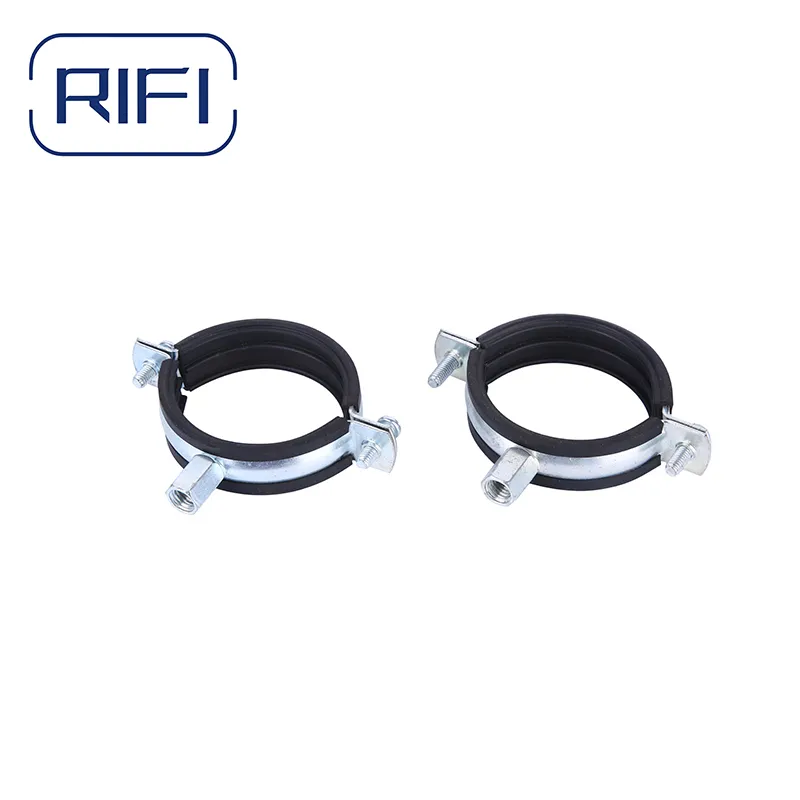

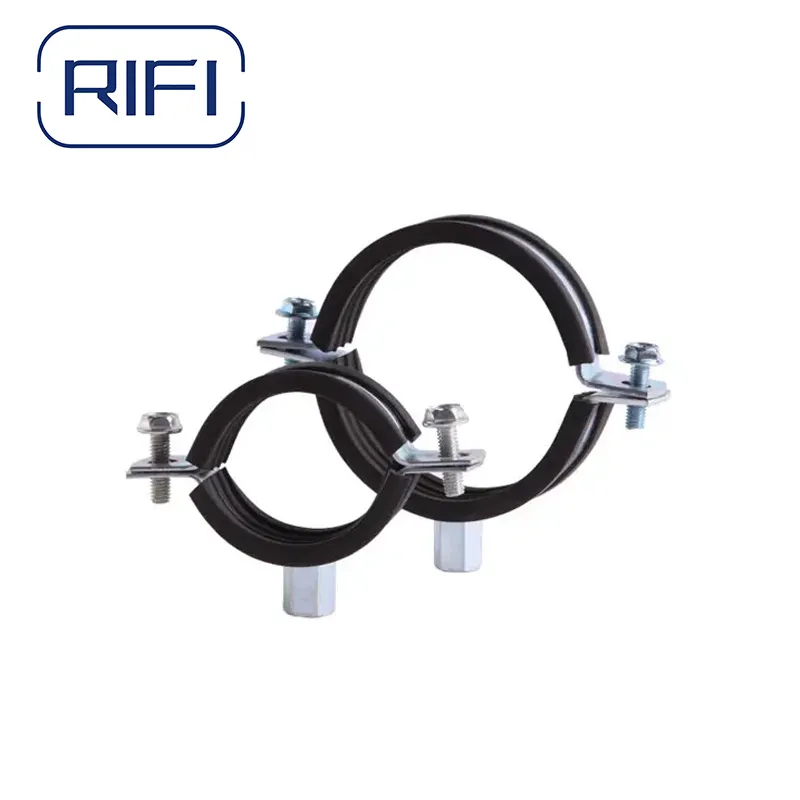

Metal Pipe Clamp with EPDM Rubber
Description
The Metal Pipe Clamp Pipe Hanger with EPDM Rubber is designed for secure and stable installation of pipes in mechanical, electrical, and plumbing (MEP) systems. Made from high-quality carbon steel and lined with EPDM rubber, it provides strong support while reducing vibration and noise during operation.
The EPDM rubber lining improves grip on the pipe surface and offers effective insulation, preventing metal-to-metal contact and protecting the pipe from damage. The clamp is equipped with M8/M10 combination nuts for flexible installation with threaded rods or suspension systems, making it widely used in HVAC, plumbing, and industrial piping installations.
Specification
Product Name: Metal Pipe Clamp Pipe Hanger with EPDM Rubber
Material: Carbon Steel
Rubber Material: EPDM
Thread Connection: M8 / M10 Combination Nut
Pipe Size Range: 1/2" – 8"
Finish: Zinc Plated
Temperature Resistance: -40°C to +120°C (EPDM Rubber)
| CAT# | Trade Size | D (mm) | WidthxThickness (mm) | Side Screw (mm) | Top Thread (mm) |
|---|---|---|---|---|---|
| PCE-19 | 3/8" | 15-19 | 20x1.5 | M6x20 | M8+M10 |
| PCE-25 | 1/2" | 20-25 | 20x1.5 | M6x20 | M8+M10 |
| PCE-30 | 3/4" | 26-30 | 20x1.5 | M6x20 | M8+M10 |
| PCE-36 | 1" | 32-36 | 20x1.5 | M6x20 | M8+M10 |
| PCE-43 | 1 1/4" | 38-43 | 20x1.5 | M6x20 | M8+M10 |
| PCE-51 | 1 1/2" | 47-51 | 20x1.5 | M6x20 | M8+M10 |
| PCE-58 | / | 53-58 | 20x1.5 | M6x20 | M8+M10 |
| PCE-64 | 2" | 60-64 | 20x1.5 | M6x20 | M8+M10 |
| PCE-72 | / | 68-72 | 20x1.5 | M6x20 | M8+M10 |
| PCE-80 | 2 1/2" | 75-80 | 20x1.5 | M6x20 | M8+M10 |
| PCE-86 | / | 81-86 | 20x1.5 | M6x20 | M8+M10 |
| PCE-92 | 3" | 87-92 | 20x1.5 | M6x20 | M8+M10 |
| PCE-105 | 3 1/2" | 99-105 | 20x1.5 | M6x20 | M8+M10 |
| PCE-112 | / | 107-112 | 20x1.5 | M6x20 | M8+M10 |
| PCE-118 | 4" | 113-118 | 20x1.5 | M6x20 | M8+M10 |
| PCE-130 | / | 125-130 | 20x1.5 | M6x20 | M8+M10 |
| PCE-142 | 5" | 138-142 | 20x1.5 | M6x20 | M8+M10 |
| PCE-166 | 6" | 159-166 | 20x1.5 | M6x20 | M8+M10 |
| PCE-212 | 8" | 200-212 | 20x1.5 | M6x20 | M8+M10 |
Application
HVAC piping systems
Plumbing installations
Fire protection piping
Industrial pipe support systems
Cable tray and conduit suspension
Mechanical equipment piping

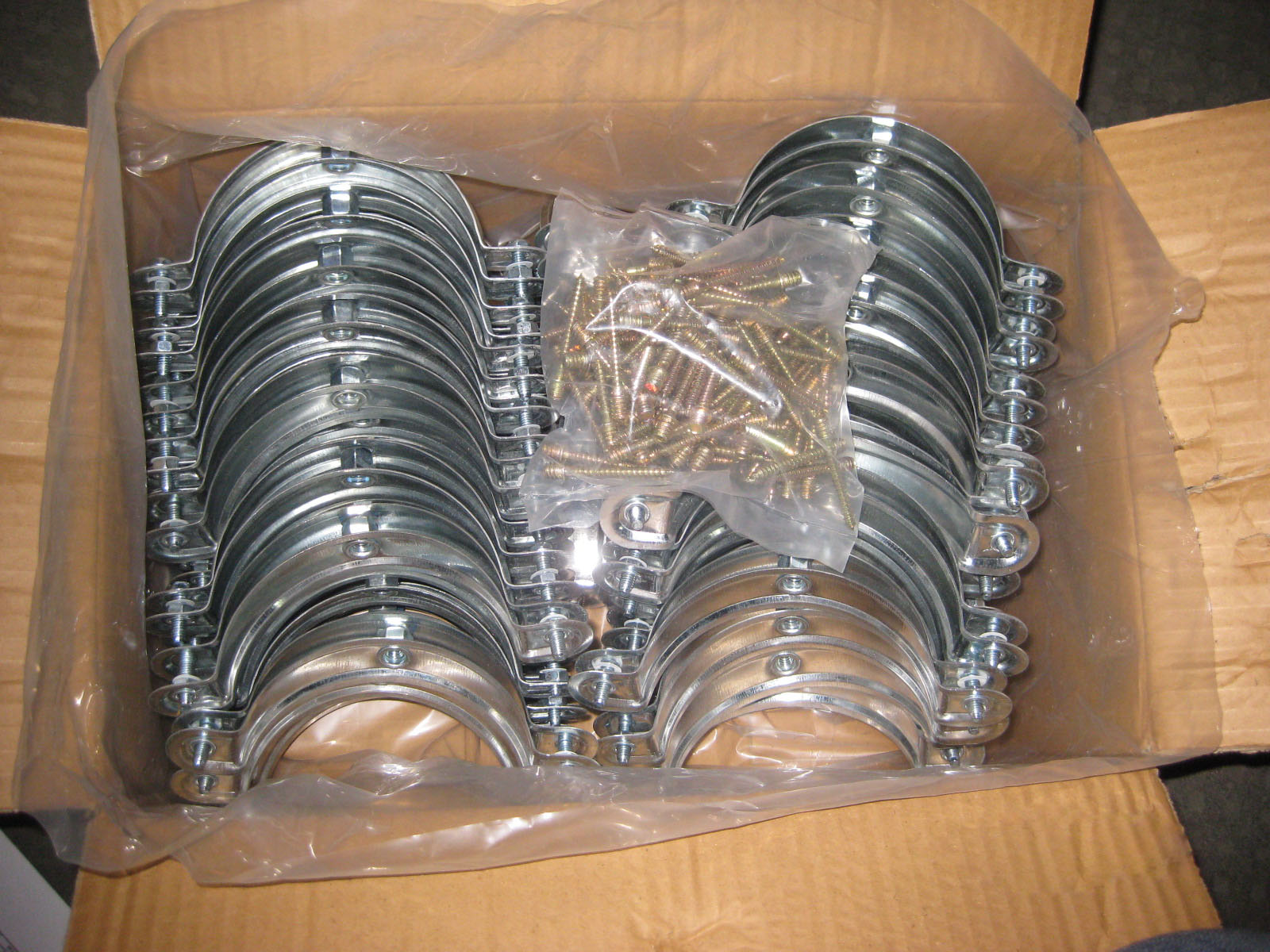

Packing
Bulk carton packing
Plastic bag inner packing available
Pallet packing available
Customized packaging supported
Advantage
EPDM rubber lining reduces vibration and noise
Prevents pipe surface damage
M8/M10 dual-thread design for flexible installation
Strong load-bearing capacity
Corrosion-resistant surface treatment
Easy and fast installation
Suitable for a wide range of piping systems
