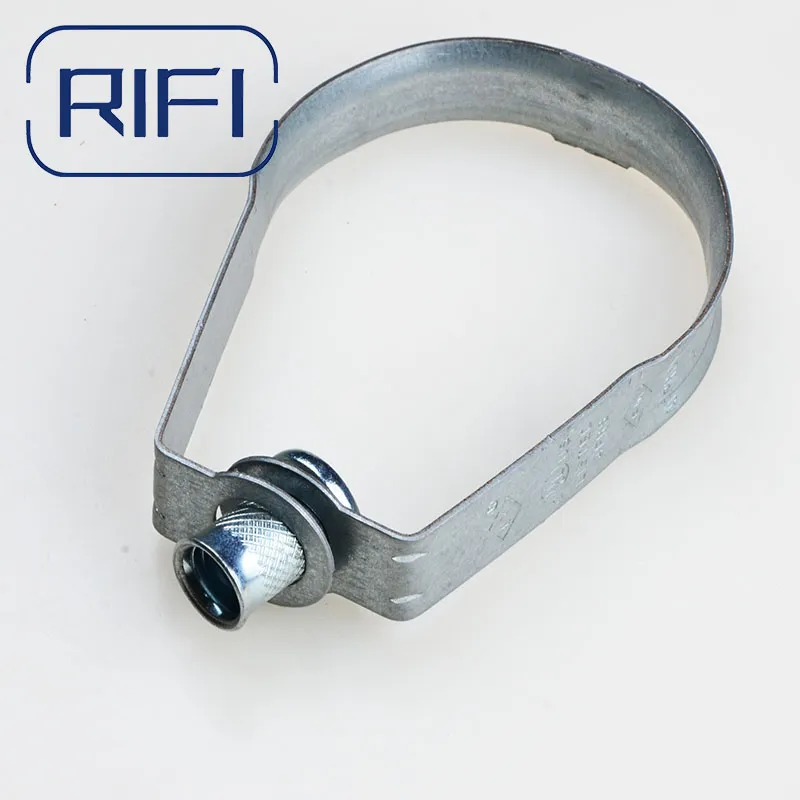

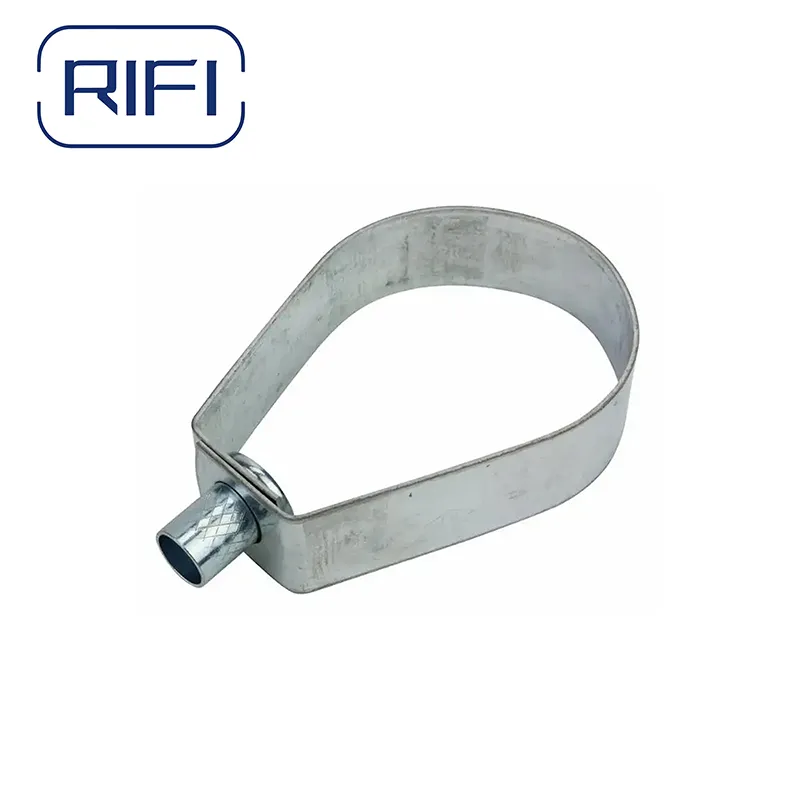

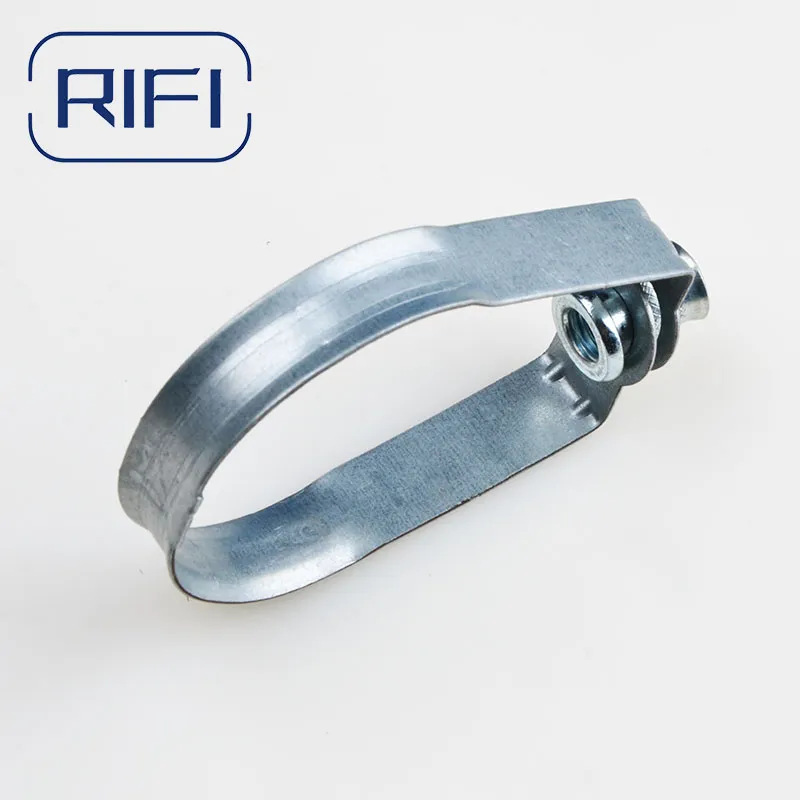

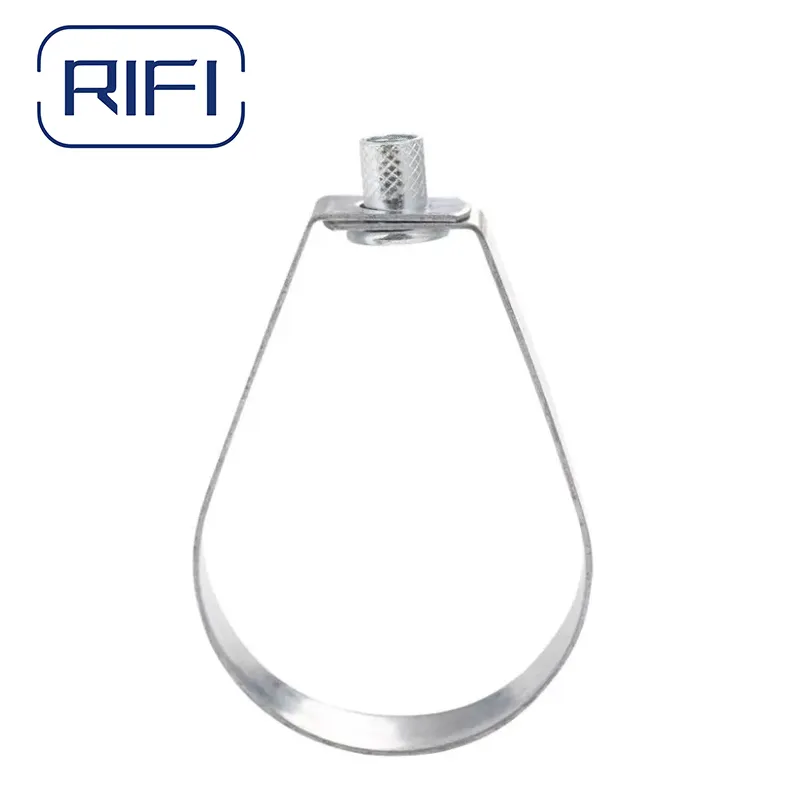

Swivel Loop Hanger
Description
The Swivel Loop Hanger is designed for supporting stationary pipes in overhead suspension systems. It features a swivel mechanism that allows the hanger to adjust automatically to the pipe position, ensuring proper alignment during installation.
Manufactured from high-quality carbon steel, the swivel loop hanger provides reliable strength and durability for piping installations. It is widely used in plumbing, HVAC, and fire protection systems where threaded rods are used for suspension. The design allows the pipe to expand and contract slightly while maintaining stable support.
Specification
Product Name: Swivel Loop Hanger
Material: Carbon Steel
Pipe Size Range: 1/2" – 8"
Thread Connection: Compatible with Threaded Rods
Finish: Electro Galvanized/ Pre-galvanized
Load Type: Stationary Pipe Support
OEM/ODM: Supported
| CAT# | Conduit Size | Rod Size | O.D. mm |
|---|---|---|---|
| RFS-050 | 1/2" | M10 | 21.34 |
| RFS-075 | 3/4" | M10 | 26.67 |
| RFS-100 | 1" | M10 | 33.4 |
| RFS-125 | 1 1/4" | M10 | 42.16 |
| RFS-150 | 1 1/2" | M10 | 48.26 |
| RFS-200 | 2" | M10 | 60.33 |
| RFS-250 | 2 1/2" | M10 | 73.03 |
| RFS-300 | 3" | M10 | 88.9 |
| RFS-350 | 3 1/2" | M10 | 101.6 |
| RFS-400 | 4" | M10 | 114.3 |
| RFS-500 | 5" | M12 | 141.3 |
| RFS-600 | 6" | M12 | 168.3 |
| RFS-800 | 8" | M12 | 219.1 |
Application
Plumbing piping systems
HVAC installations
Fire protection piping systems
Industrial pipe suspension
Mechanical piping support systems

Packing
Bulk carton packing
Pallet packing available
Customized packaging supported
Advantage
Swivel design for flexible installation
Strong load-bearing capacity
Durable carbon steel construction
Corrosion-resistant surface treatment
Suitable for threaded rod suspension systems
Easy and quick installation
Reliable support for stationary pipes
