U-Bolt Beam Clamp
Description

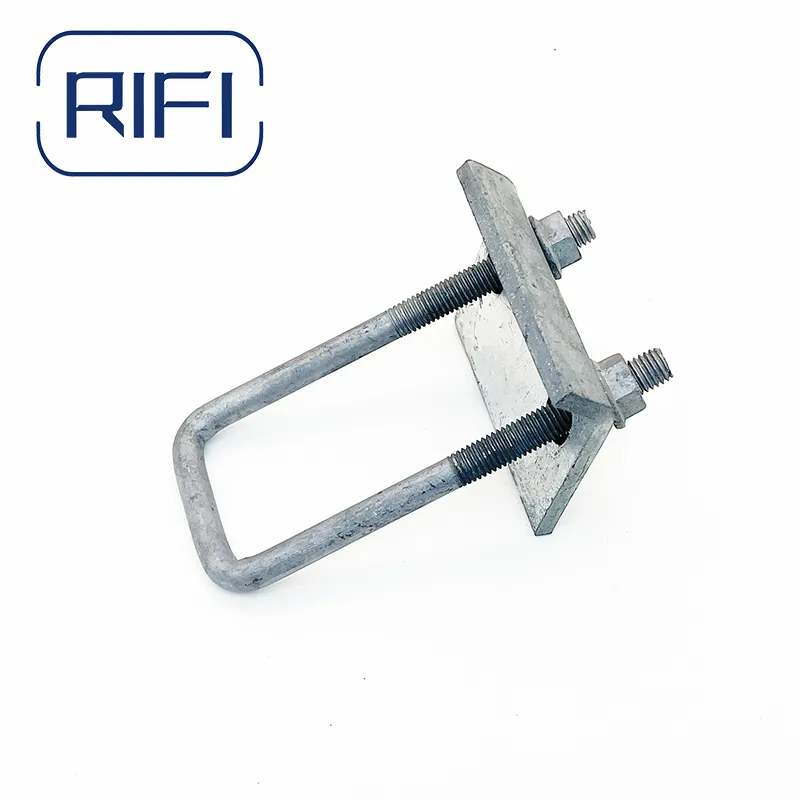

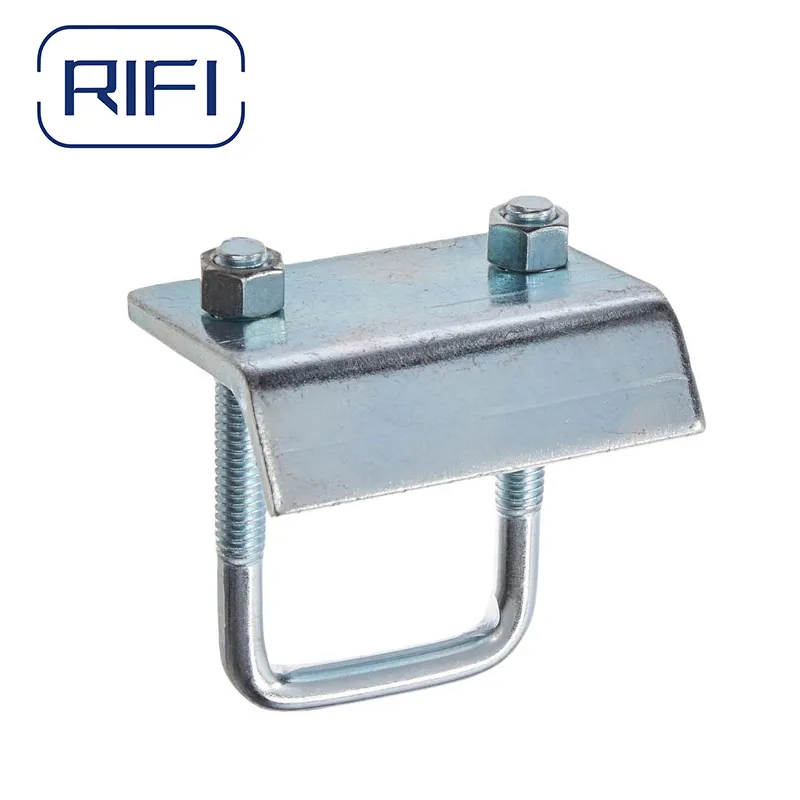

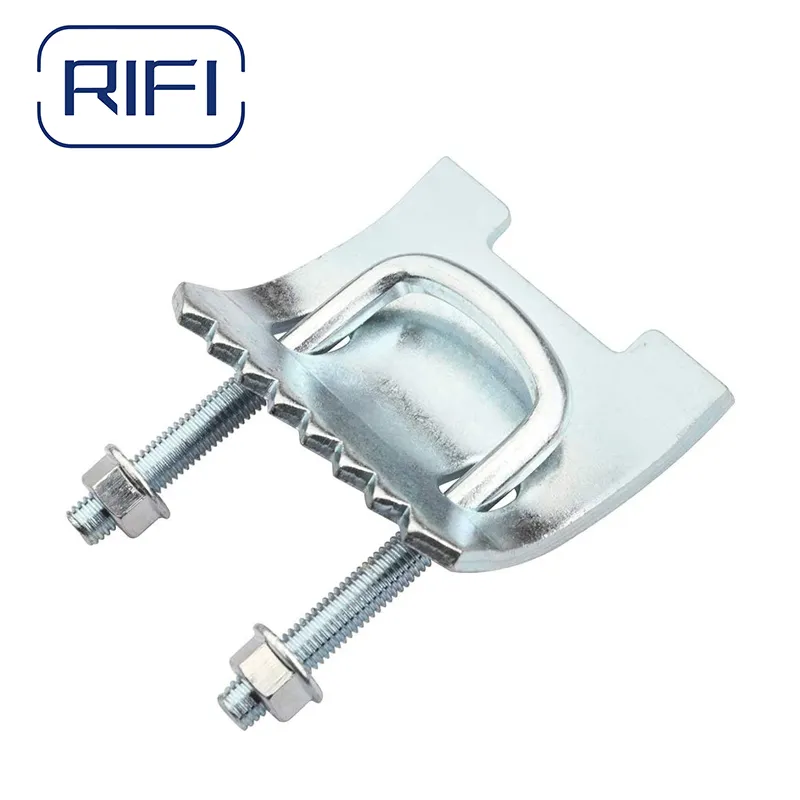

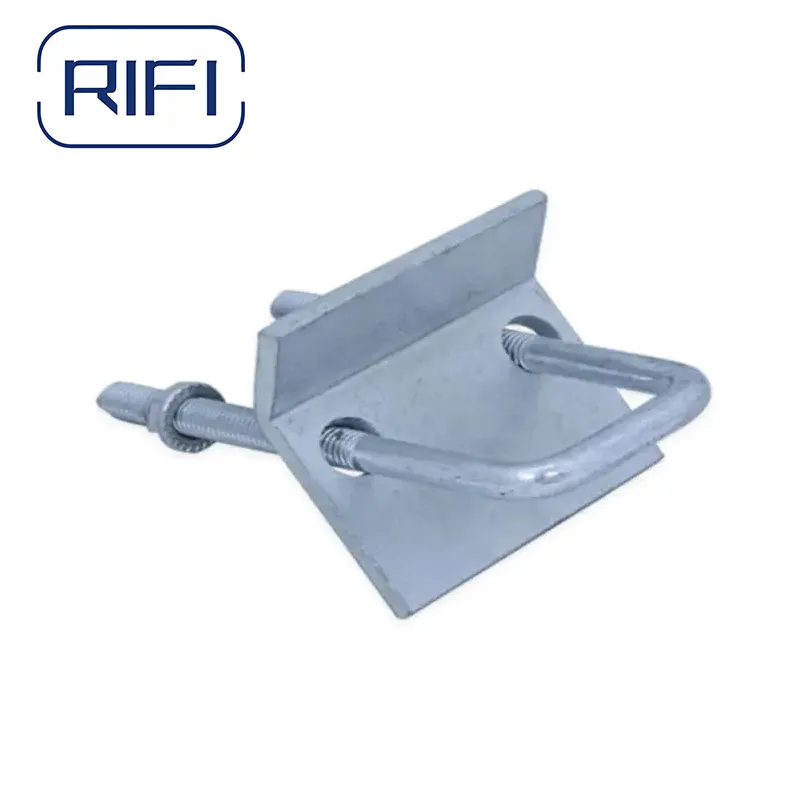

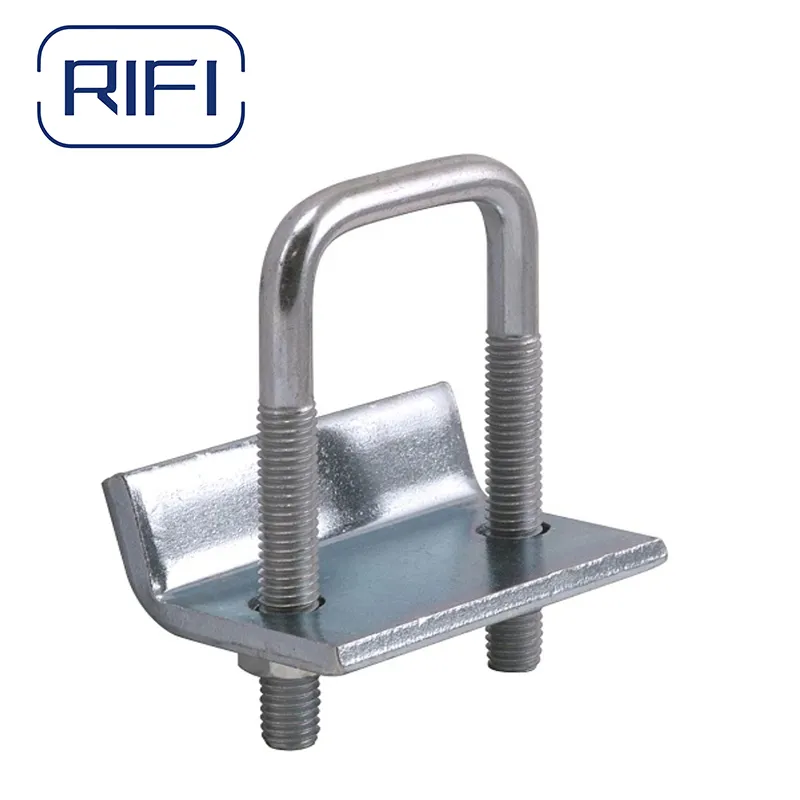

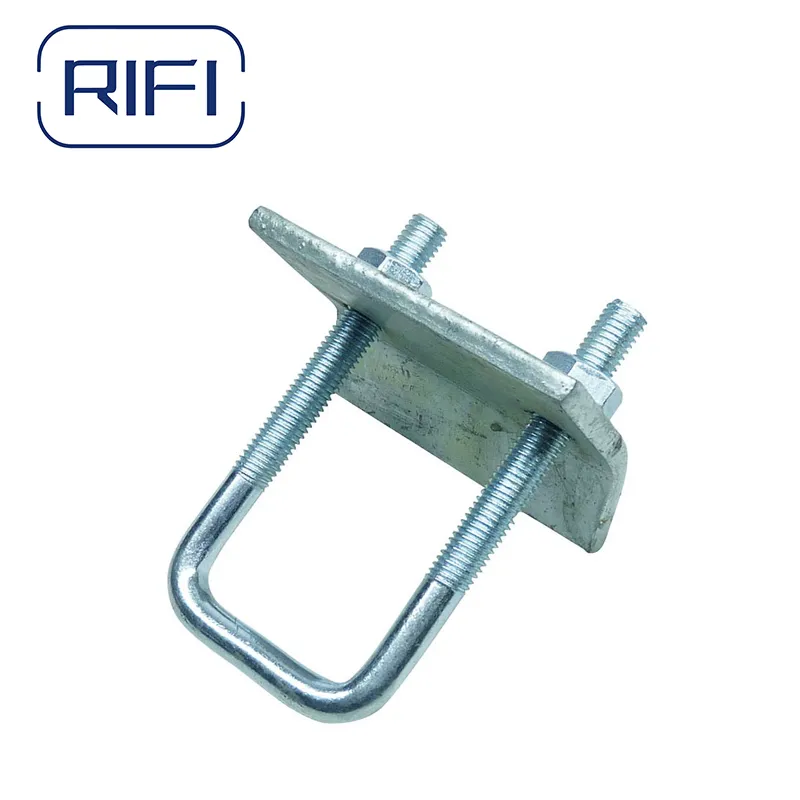

The U-Bolt Beam Clamp is a versatile fastening solution designed to attach threaded rods, pipe hangers, or strut channels to steel beams securely. It features a U-shaped bolt that wraps around the beam flange, providing a strong and adjustable connection without drilling or welding.
Manufactured from high-quality carbon steel or stainless steel, the U-Bolt Beam Clamp offers excellent durability, load-bearing capacity, and corrosion resistance. It is widely used in mechanical, electrical, and plumbing (MEP) installations, including pipe support systems, cable tray suspension, and strut channel frameworks.
Specification
Product Name: U-Bolt Beam Clamp
Material: Carbon Steel / Stainless Steel
Thread Size: M8 – M12 / 3/8"
Beam Thickness: Adjustable depending on model
Finish: Zinc Plated / Hot Dip Galvanized / Stainless Steel
Installation Type: Clamp-on Beam Mounting
Compatibility: Threaded Rod, Strut Channel, Pipe Hanger
OEM/ODM: Supported
| CAT# | H Size | Use |
|---|---|---|
| MCBC-1 | 3-3/8" | For 13/16" & 1-5/8" Strut Channel |
| MCBC-2 | 5" | For 2-7/16" & 3-1/4" Strut Channel |
Application
Pipe hanger suspension systems
Cable tray support systems
Strut channel installations
Electrical conduit support
HVAC duct support
Industrial and structural fastening
Packing
Bulk carton packing
Pallet packing available
Customized packaging supported
Advantage
No drilling or welding required
Quick and easy installation
Strong load-bearing capacity
Durable carbon steel or stainless steel construction
Corrosion-resistant surface treatment
Compatible with threaded rods, pipes, and strut systems
Suitable for various steel beam sizes
