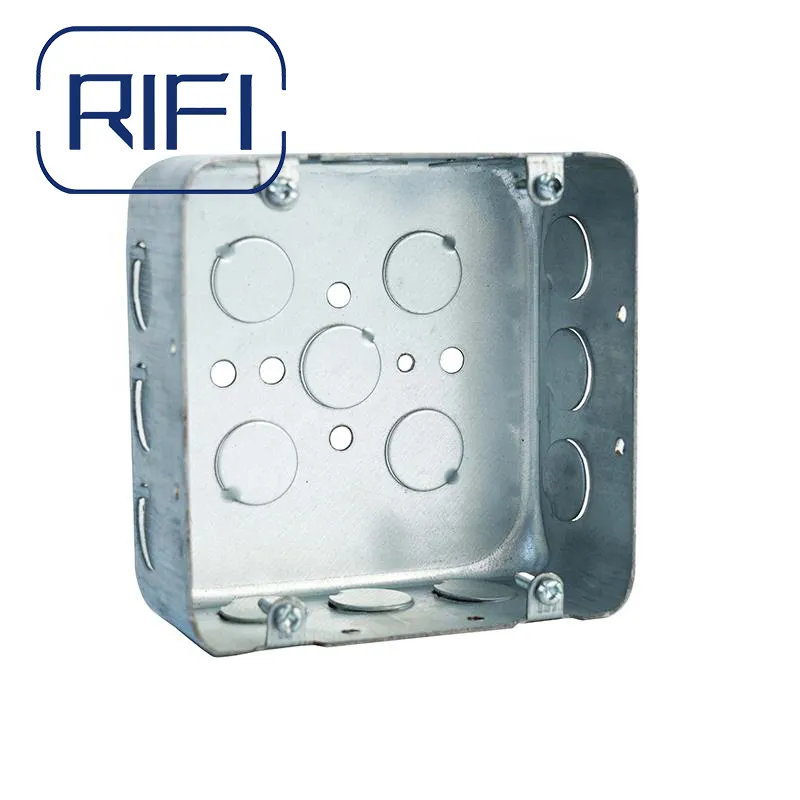

4-11/16" × 4-11/16" Square Steel Electrical Box
Description
The 4-11/16" × 4-11/16" Square Steel Electrical Box is designed for electrical conduit installations requiring larger wiring capacity and multiple conduit entries. Manufactured from high-quality pre-galvanized steel, this square box provides strong mechanical protection and secure enclosure for wire splicing, device mounting, and distribution connections.
With its expanded internal space compared to standard 4" × 4" boxes, it is widely used in commercial and industrial electrical systems where higher conductor fill capacity is required. Suitable for EMT conduit installations and heavy-duty applications.
Specification
Product Name: 4-11/16" × 4-11/16" Square Steel Electrical Box
Material: Pre-Galvanized Steel / Galvanized Steel
Size: 4-11/16" × 4-11/16"
Depth:2-1/8"
Thickness: 1.0mm – 1.6mm
Knockouts: 1/2", 3/4", 1"
Installation Type: Surface mounted
Finish: Zinc coated
Standard: UL
OEM/ODM: Supported
| CAT# | Size | Depth | Hole Size | Knockouts | Thickness | ||
|---|---|---|---|---|---|---|---|
| Sides | Ends | Bottom | mm | ||||
| SB550218 | 4-11/16"x4-11/16" | 2-1/8" | 1/2" | 6x1/2" | 6x1/2" | 5x1/2" | 1.0-1.6 |
| SB575218 | 4-11/16"x4-11/16" | 2-1/8" | 3/4" | 4x3/4" | 4x3/4" | 3x1/2"&2x3/4" | 1.0-1.6 |
| SB5M218 | 4-11/16"x4-11/16" | 2-1/8" | 1/2"&3/4" | 4x1/2"&2x3/4" | 4x1/2"&2x3/4" | 3x1/2"&2x3/4" | 1.0-1.6 |
| SB5100218 | 4-11/16"x4-11/16" | 2-1/8" | 1" | 4x1" | 4x1" | 3x1/2"&2x3/4" | 1.0-1.6 |
| SB5M1218 | 4-11/16"x4-11/16" | 2-1/8" | 3/4" | 2x3/4"&2x1" | 2x3/4"&2x1" | 3x1/2"&2x3/4" | 1.0-1.6 |
Application
EMT conduit systems
Commercial building wiring
Industrial electrical installations
Junction and wire splicing projects
Packing
Standard export carton
Pallet packing available
Customized packaging supported
Advantage
Integrated grounding solution
Strong galvanized steel construction
Corrosion-resistant surface
Precise stamping and smooth edges
Stable bulk production capacity
