| Place of Origin: | China |
|---|---|
| Brand Name: | RIFI |
| Certification: | ISO |
| Model Number: | GFA |
| Minimum Order Quantity: | 1000 meter |
| Price: | 0.01-2 |
| Packaging Details: | plastic bag packing |
| Delivery Time: | 15-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500000 meter per month |
| Type: | Electrical Galvanized Gi Flexible Conduit | Trade Size: | 3/8"-4" |
|---|---|---|---|
| Transport Package: | Voven Plastis Bag; Foam Film Pack | Specification: | 1/2"-4" |
| Supply Ability: | 100000 Meter /Month | Color: | Silver |
| Surface Treatment: | Galvanized Steel | Application: | Wiring |
| Material: | Galvanized Steel | ||
| Highlight: | Galvanized Gi Flexible Conduit,Electrical Gi Flexible Conduit,Electrical Flexible Conduit And Fittings |
||
Product Description

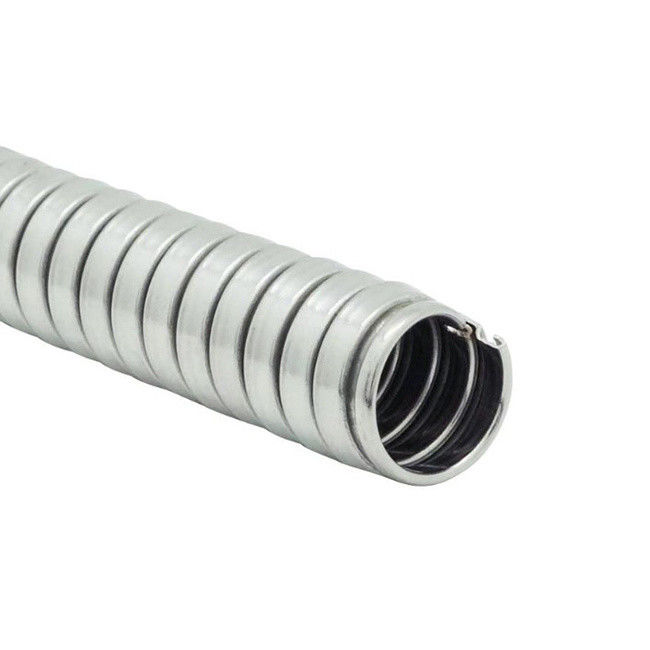

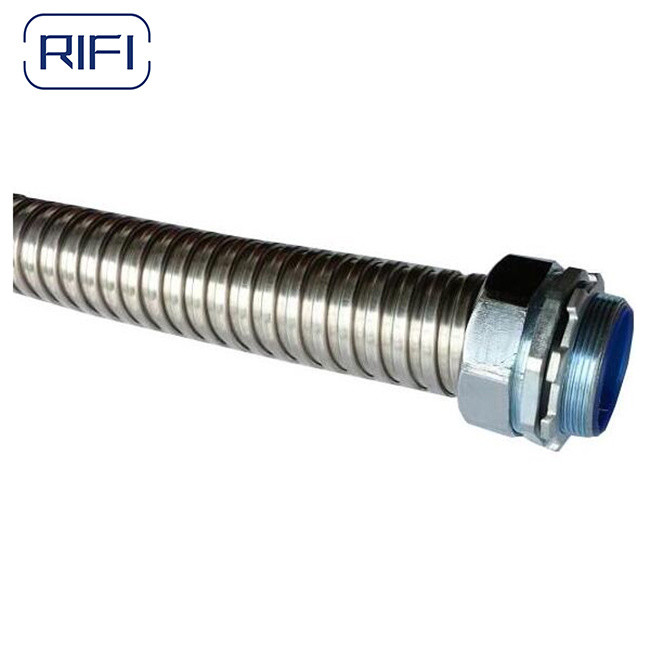

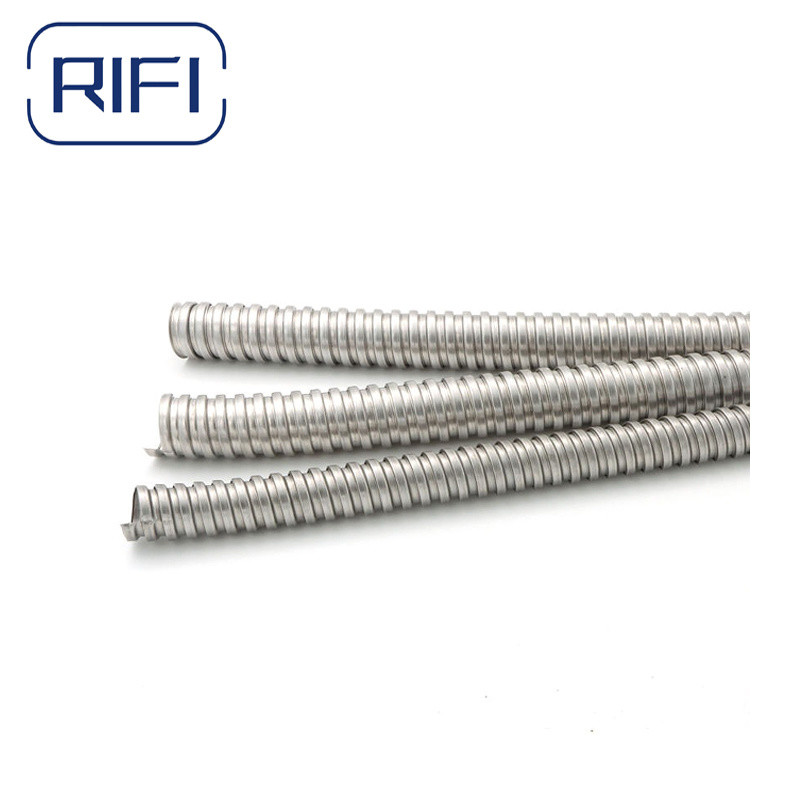

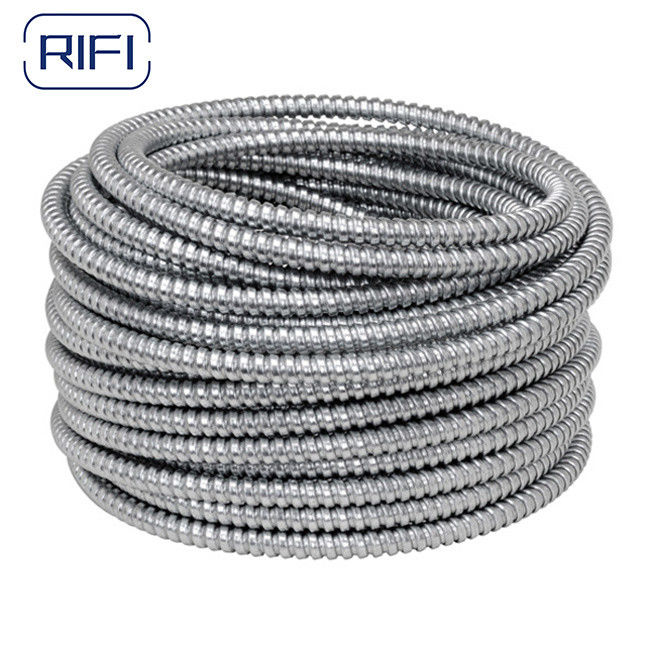

Galvanized Steel Electrical Flexible Conduit for Wire and cable protection
Galvanized steel electrical flexible conduit is a type of electrical conduit used for protecting and routing electrical wires and cables in various applications. It is made from galvanized steel, which is steel coated with a layer of zinc to provide corrosion resistance. Here are some key characteristics and uses of galvanized steel electrical flexible conduit
Material: The conduit is primarily made from galvanized steel. Galvanization involves applying a zinc coating to the steel to protect it from rust and corrosion. This makes it suitable for both indoor and outdoor applications, including areas exposed to moisture.
Flexibility: Like other types of flexible conduit, galvanized steel flexible conduit is designed to be flexible, allowing it to bend and adapt to the installation's needs. This flexibility is useful for routing wires through tight spaces and around corners.
Corrosion Resistance: Galvanized steel is highly resistant to corrosion, which is especially important in outdoor and harsh environments where the conduit may be exposed to moisture, chemicals, or other corrosive substances.
| Trade size | Inside Diameter(mm) | Outside Diameter(mm) | Bending radius(mm) | ||
| Min | Max | Min | Max | Min | |
| 3/8" | 12.30 | 12.8 | 15.7 | 16.20 | 50 |
| 1/2" | 15.80 | 16.30 | 19.20 | 19.70 | 65 |
| 3/4" | 20.70 | 21.20 | 24.50 | 25.10 | 75 |
| 1" | 26.00 | 26.60 | 30.40 | 31.00 | 100 |
| 1-1/4" | 34.70 | 35.40 | 39.60 | 40.30 | 125 |
| 1-1/2" | 40.00 | 40.60 | 45.20 | 45.80 | 150 |
| 2" | 51.30 | 51.90 | 56.50 | 57.10 | 175 |
| 2-1/2" | 63.00 | 63.60 | 70.20 | 70.80 | 200 |
| 3" | 78.00 | 78.70 | 85.20 | 85.90 | 225 |
| 4" | 101.60 | 102.60 | 108.50 | 109.50 | 275 |
Application:

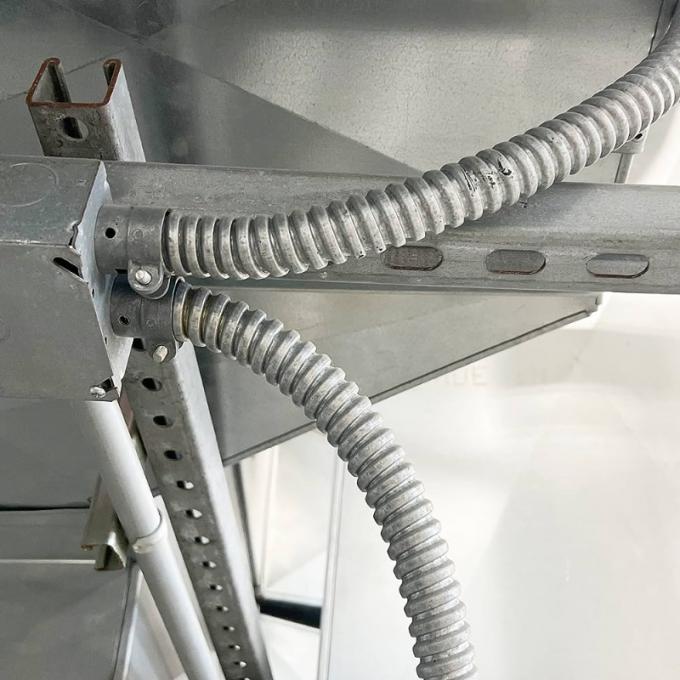

Galvanized Steel Electrical Flexible Conduit for Wire and cable protection Protecting wires and cable in Power plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.
