| Place of Origin: | China |
|---|---|
| Brand Name: | RIFI |
| Certification: | ISO |
| Model Number: | CTL |
| Minimum Order Quantity: | 500 meter |
| Price: | $0.8-$10 |
| Packaging Details: | Stretch film |
| Delivery Time: | 10-20 days |
| Payment Terms: | TT, L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 500 Tons per month |
| Material: | Steel /stainless Steel/fireproof Spray /aluminum Alloy | Side Rail Height: | 50mm-200mm; As Customer Request |
|---|---|---|---|
| Width: | 50mm-800mm | Thickness: | 0.8mm-3mm |
| Surface Treatment: | Pre-galvanized/Hot-dip Galvanized/Powder Coated/Painted | Size: | Customized |
| Length: | 1 Meter; 2 Meter ; 3 Meter ; 6 Meter;Customized | Mounting Type: | Wall/Floor/Ceiling |
| Color: | Red,white,blue,orange,green | Accessories: | Elbow,Bend,Reducer,Cross,Tee,Couplers,etc |
| OEM: | Acceptable | Packing: | Stretch Film Or According To Clients' Requirements |
| Highlight: | Ladder Type Cable Tray System,Customizable Ladder Type Cable Tray System,HDG Galvanized Electrical Cable Tray |
||

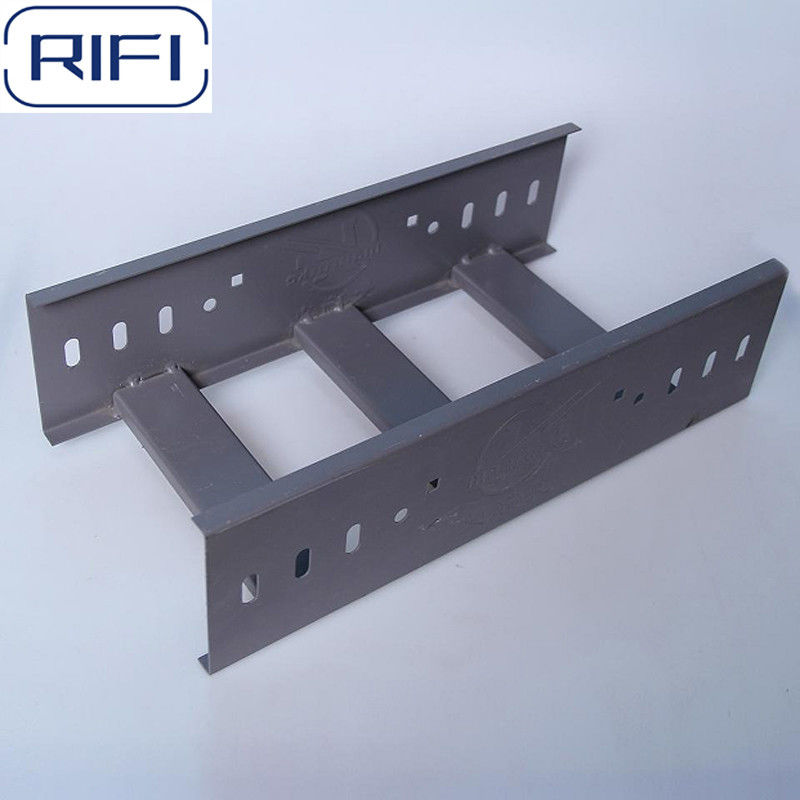

cable ladder tray is a type of support system used in the construction and installation of electrical cables in industrial and commercial settings. It provides a structured pathway for cables, helping to organize and support them throughout a building or facility.
Design:
The tray is typically made of metal (such as steel or aluminum) and consists of a series of side rails connected by rungs, forming a ladder-like structure.
The open design allows for easy access to cables, facilitates air circulation (which can be important for cooling), and simplifies maintenance and troubleshooting.
Installation:
Cable ladder trays are installed overhead, usually suspended from ceilings or mounted on walls. They can also be placed in an underfloor capacity.
They are often adjustable, allowing for flexibility in the layout and configuration of cable runs.
Materials:
Cable ladder trays are commonly made of materials that offer durability and corrosion resistance, ensuring a long lifespan.
Some trays are also available with various finishes or coatings to provide additional protection against environmental factors.
Support and Load Capacity:
Cable ladder trays are designed to support the weight of electrical cables and other associated equipment. The rungs and side rails are structured to handle the load without bending or sagging.
Load capacities can vary, and trays are selected based on the anticipated weight and number of cables to be supported.
Ventilation:
The open design of cable ladder trays facilitates ventilation around the cables. This is particularly important in installations where heat dissipation is a concern, such as data centers.
Accessories:
Various accessories, such as bends, tees, crosses, and dividers, are available to help create a customized cable management system based on specific installation requirements.
| Product Feature | Cable Tray ladder type |
| Color | White/ Black/ Grey/ Yellow/ Blue/ Green |
| Height | 50mm-200mm; as customer request |
| Surface Treatment | pre-galvanized/Hot-dip Galvanized/Powder Coated/Painted |
| Thickness | 0.8mm-3.0mm;Customized |
| Width | 50mm-800mm |
| Shape | Rectangular/ Trapezoidal/ Ladder/ Channel |
| Size | Customized |
| Length | 1 meter; 2 meter ; 3 meter ; 6 meter;Customized |
| Mounting Type | Wall/Floor/Ceiling |
Applications:
Cable ladder trays are commonly used in industrial settings, commercial buildings, data centers, and other environments where a structured and organized cable management system is essential.
