| Place of Origin: | China |
|---|---|
| Brand Name: | RIFI |
| Certification: | ISO |
| Minimum Order Quantity: | 1000pcs |
| Price: | $0.6-$20/PCS |
| Packaging Details: | Bundle |
| Delivery Time: | 15-30days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 100000pcs/Month |
| Highlight: | RIFI Strut Channel Threaded Rod,60 Degree Strut Channel Threaded Rod |
||
|---|---|---|---|

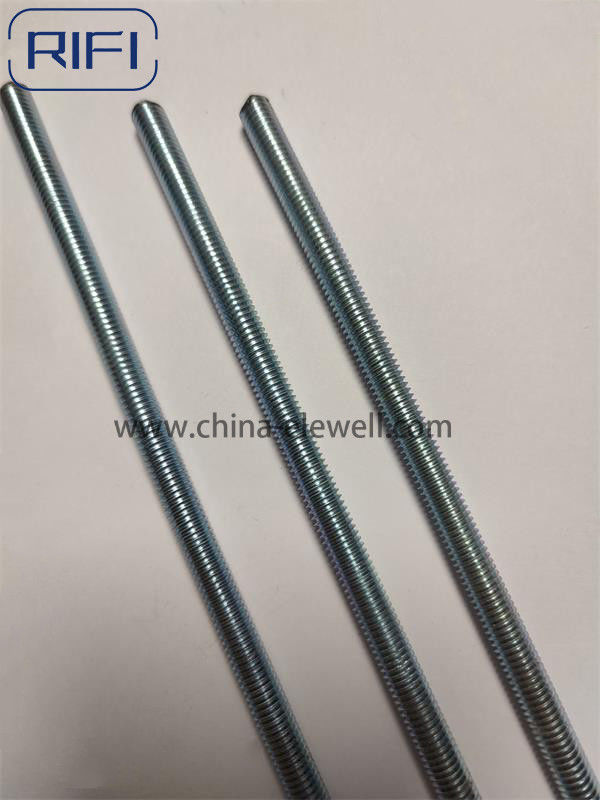

Threaded rod:The main function is to convert rotational motion into linear motion, or to convert torque into axial repeated force Brings versatility to jobsite.Can fit Unistrut channel to act as support form hanging and mounting to retrofitting and bracing.Have zinc plated 40degree and 60degree,Class 4.6 and Class 4.8.
| Product Name | Steel Threaded rod |
| Place of origin | China |
| Material | Carbon Steel |
| Surface Finish | electro-galvanized |
| Size | 1/4"-1/2",M6-M36 |
| Function | Brings versatility to jobsite,from hanging and mounting to retrofitting and bracing |
| Trade size | diameter | Thread size | specification | Length(meter) | Strength(PSI) | Each bundle | |||
| inch | mm | Yield | tensile | QTY | Wt.(KG) | ||||
| 1/4" | 0.250 | 6.3 | 1/4"-20 | ASTM A307 Grade 2 | 3 | 40000 | 60000 | 50 | 25 |
| 3/8" | 0.375 | 9.53 | 3/8"-16 | ASTM A307 Grade 2 | 3 | 40000 | 60000 | 25 | 30 |
| 1/2" | 0.500 | 12.70 | 1/2"-13 | ASTM A307 Grade 2 | 3 | 40000 | 60000 | 10 | 22 |
| M6 | 0.236 | 6 | 1 | DIN975class4.6 | 3 | 34000 | 58000 | 50 | 23 |
| M8 | 0.315 | 8 | 1.25 | DIN975class4.6 | 3 | 34000 | 58000 | 25 | 20 |
| M10 | 0.394 | 10 | 1.5 | DIN975class4.6 | 3 | 34000 | 58000 | 20 | 25 |
| M12 | 0.472 | 12 | 1.75 | DIN975class4.6 | 3 | 34000 | 58000 | 15 | 29 |
| M14 | 0.551 | 14 | 2 | DIN975class4.6 | 3 | 34000 | 58000 | 10 | 25 |
| M16 | 0630 | 16 | 2 | DIN975class4.6 | 3 | 34000 | 58000 | 10 | 34 |
| M18 | 0.709 | 18 | 2.5 | DIN975class4.6 | 3 | 34000 | 58000 | 5 | 23 |
| M20 | 0.787 | 20 | 2.5 | DIN975class4.6 | 3 | 34000 | 58000 | 5 | 29 |
| M22 | 0.866 | 22 | 2.5 | DIN975class4.6 | 3 | 34000 | 58000 | 3 | 22 |
| M24 | 0.945 | 24 | 3 | DIN975class4.6 | 3 | 34000 | 58000 | 3 | 25 |
| M27 | 1.063 | 27 | 3 | DIN975class4.6 | 3 | 95000 | 120000 | 3 | 32 |
| M30 | 1.181 | 30 | 3.5 | DIN975class4.6 | 3 | 95000 | 120000 | 2 | 27 |
| M33 | 1.299 | 33 | 3.5 | DIN975class4.6 | 3 | 95000 | 120000 | 1 | 17 |
| M36 | 1.17 | 36 | 4 | DIN975class4.6 | 3 | 95000 | 120000 | 1 | 19 |
