| Place of Origin: | China |
|---|---|
| Brand Name: | RIFI |
| Certification: | UL |
| Model Number: | EE |
| Minimum Order Quantity: | 1000 |
| Price: | 0.03-2 |
| Packaging Details: | Carton packing |
| Delivery Time: | 15-30 days |
| Payment Terms: | TT |
| Supply Ability: | 50000000 pcs/ month |
| Features: | Corrosion Resistant | Other EMT Conduit Fittings: | EMT Elbow, EMT Pull Elbow , Service Entrance Cap, EMT One Hole Strap , EMT 2 Hole Strap, Etc |
|---|---|---|---|
| Standard: | UL 797 | Application( EMT Coupling): | For Use To Couple Two Ends Of EMT To Form 90 Degree Bend |
| Material: | Steel Galvanized | Product Name (coupling) ): | EMT Conduit Elbow 90 Degree |
| Color: | Silver | Application: | Electric Cable Wire Protection,Connect Pipes |
| Size: | 1/2"-4" | ||
| Highlight: | Hot Dip Galvnaized EMT Elbow,UL EMT Conduit Fititngs,Pre-Galvanized EMT Elbow |
||

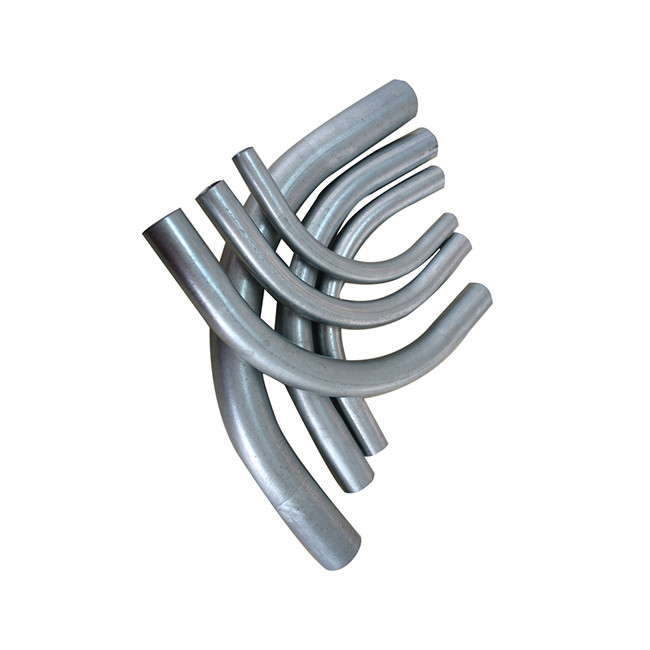

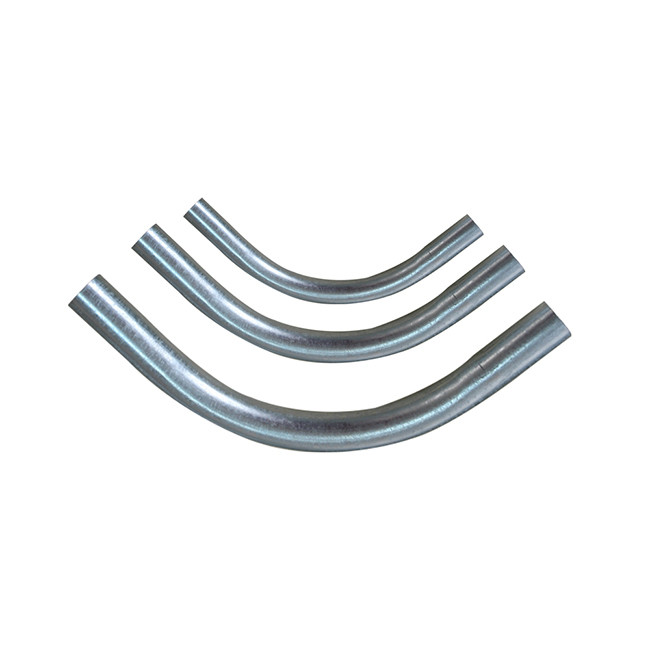

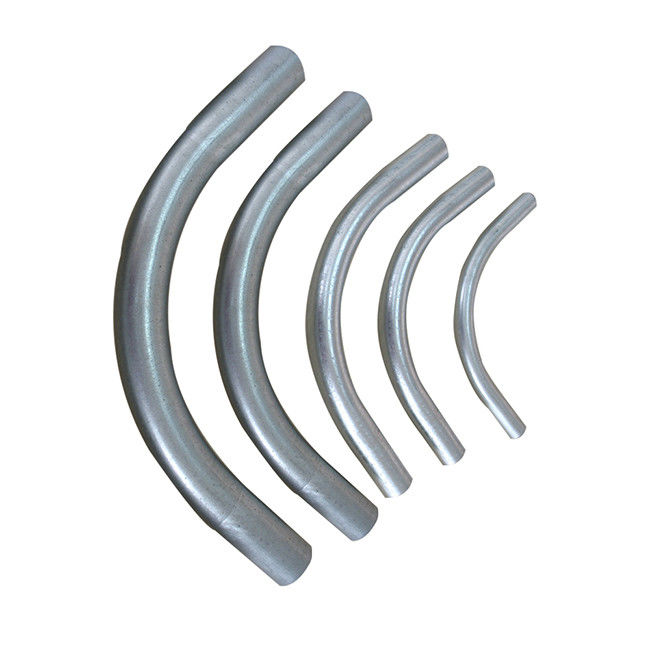

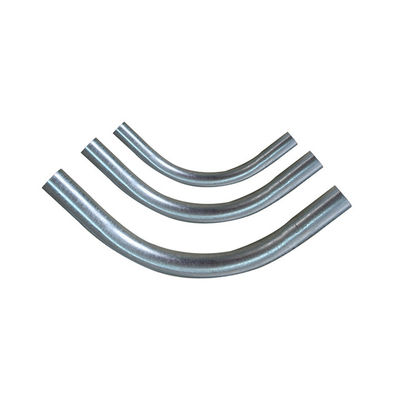

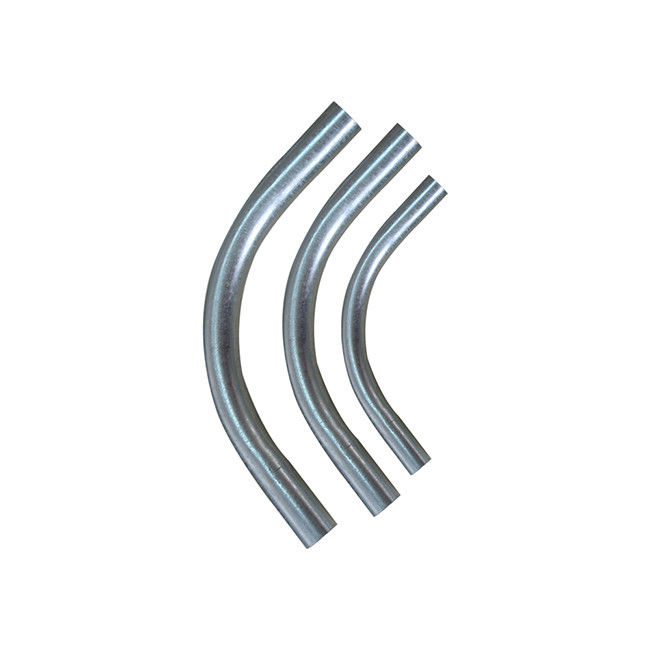

The Steel EMT Elbow is an essential component for electrical conduit systems, specifically designed to allow for smooth and efficient directional changes in EMT (Electrical Metallic Tubing) installations. Manufactured from high-quality steel, this elbow ensures durability, ease of installation, and reliable performance in various applications.
| Property | Details |
|---|---|
| Angle | 90 degrees |
| Material | Galvanized steel |
| Conduit Type | Electrical Metallic Tubing (EMT) |
| Available Sizes | 1/2", 3/4", 1", 1 1/4", 1 1/2", 2" |
| Finish | Zinc-coated |
| Standards | UL 797, ANSI C80.3 |
| Temperature Rating | -40°F to 140°F (-40°C to 60°C) |
| Weight | Varies by size (see datasheet) |
| Package Quantity | 10 per box |
| Size | Inner Diameter (ID) | Outer Diameter (OD) | Bend Radius | Weight (lbs/unit) |
|---|---|---|---|---|
| 1/2" | 0.622" | 0.706" | 4.0" | 0.30 |
| 3/4" | 0.824" | 0.922" | 6.0" | 0.45 |
| 1" | 1.049" | 1.163" | 8.0" | 0.70 |
| 1 1/4" | 1.380" | 1.510" | 10.0" | 1.10 |
| 1 1/2" | 1.610" | 1.740" | 12.0" | 1.50 |
| 2" | 2.067" | 2.197" | 16.0" | 2.30 |
UL File Number: E540045
Our EMT conduit fittings are carefully packaged to ensure safe and secure delivery to our customers.wrapped in plastic and then placed in a sturdy, corrugated cardboard box. The box is labeled with the product name, size, and quantity for easy identification.
For more information or to place an order, please contact our customer service team or visit our website.
Note: Product availability and specifications are subject to change without notice. Please consult our latest catalog or website for current information.
