| Place of Origin: | China |
|---|---|
| Brand Name: | RIFI |
| Certification: | UL |
| Model Number: | 1/2"-4" |
| Minimum Order Quantity: | 1000pcs |
| Price: | $0.08-3/pcs |
| Packaging Details: | Carton |
| Delivery Time: | 15-30days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/Month |
| Use: | Electrical Metallic Conduit | System: | Electrical Cable Conduit System |
|---|---|---|---|
| Type: | EMT Conduit Compression Connector | Products Name: | EMT Conduit Connector And Conduit Coupling |
| Specification: | 1/2"-4" | Trademark: | RIFI |
| Material: | Zinc Die Cast | Application: | Connect Pipes And Boxes |
| Size: | 1/2"-4" | ||
| Highlight: | Zinc Die Cast EMT Conduit Connector,Ul 514b EMT Conduit Connector |
||

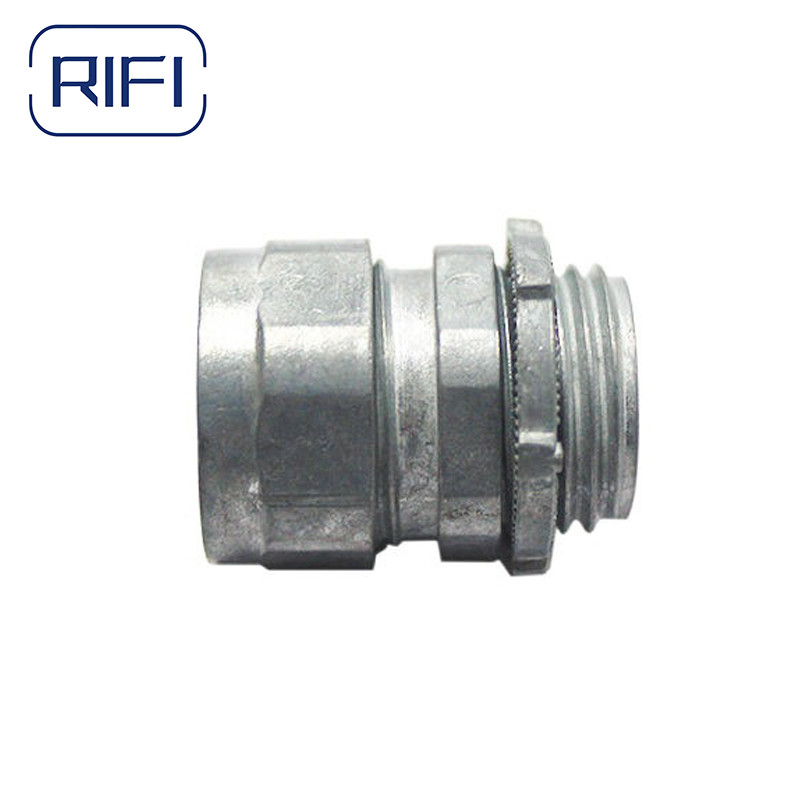

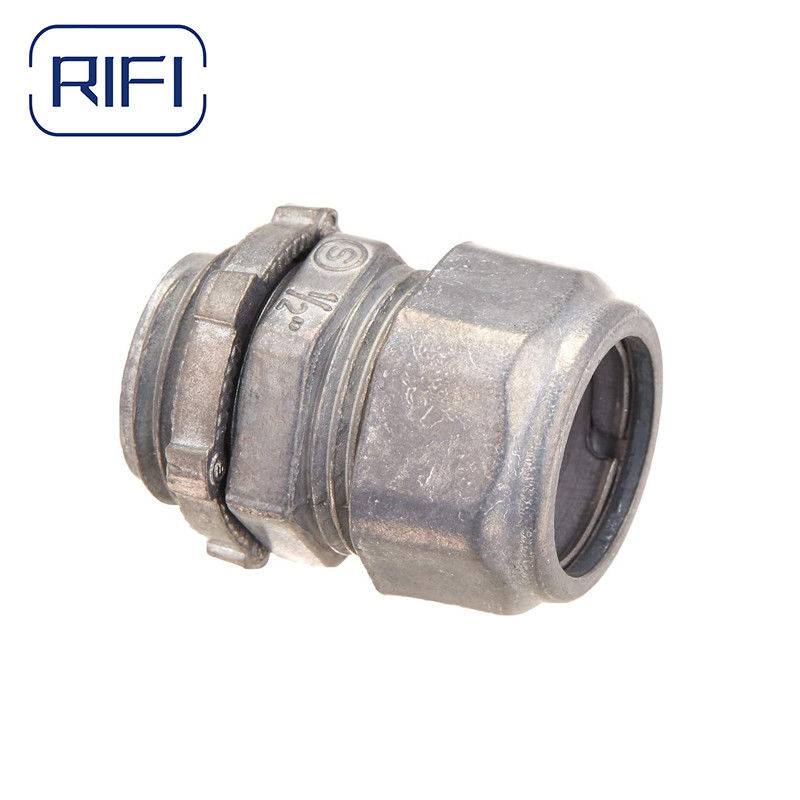

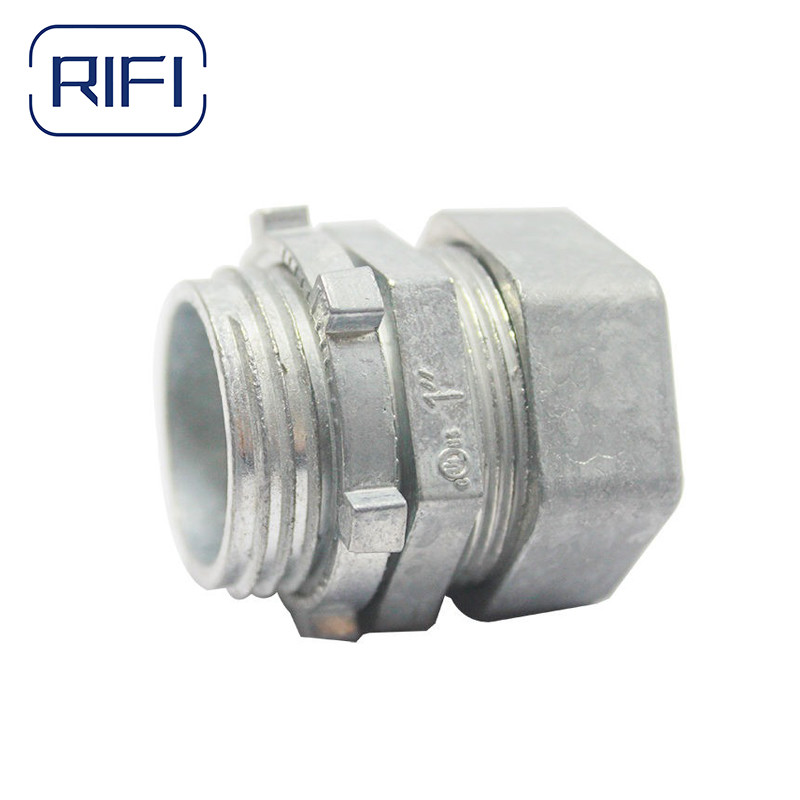

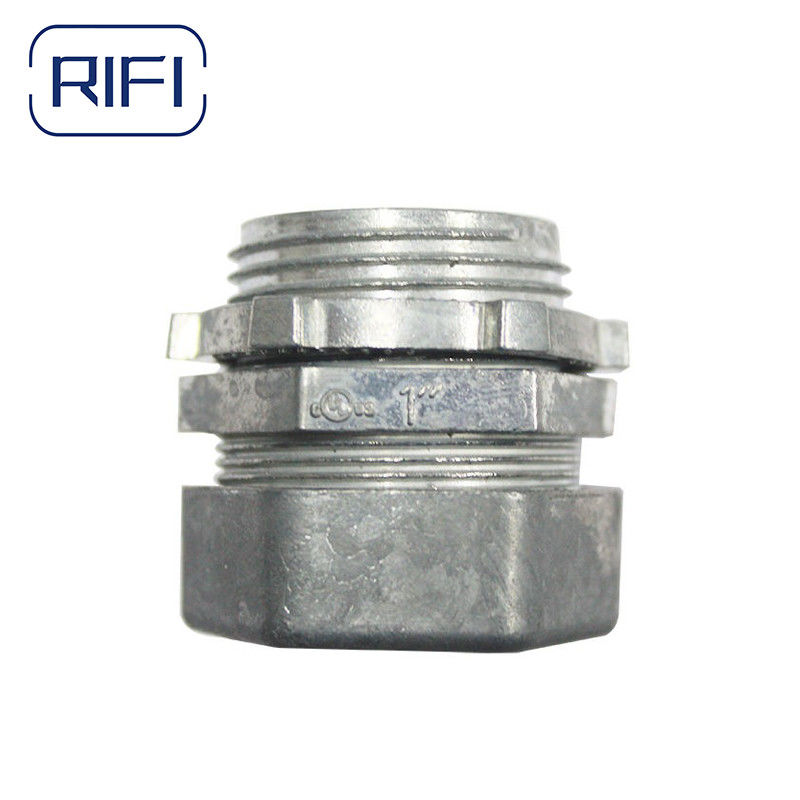

The EMT Conduit Connector Compression Type is a high-quality fitting designed to provide a secure and reliable connection between Electrical Metallic Tubing (EMT) and electrical boxes or enclosures. Made from durable zinc die-cast material, this connector is engineered for both indoor and outdoor use, ensuring long-lasting performance and compliance with UL 514B standards.
| Property | Details |
|---|---|
| Material | Zinc die-cast |
| Connector Type | Compression |
| Conduit Type | Electrical Metallic Tubing (EMT) |
| Available Sizes | 1/2", 3/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 3 1/2", 4" |
| Finish | Corrosion-resistant coating |
| Standards | UL 514B, CSA C22.2 No. 18.3 |
| Temperature Rating | -40°F to 140°F (-40°C to 60°C) |
| Package Quantity | 25 per box (varies by size) |
| Size | Inner Diameter (ID) | Outer Diameter (OD) | Weight (lbs/unit) | Torque Rating |
|---|---|---|---|---|
| 1/2" | 0.622" | 0.706" | 0.15 | 35 in-lbs |
| 3/4" | 0.824" | 0.922" | 0.20 | 40 in-lbs |
| 1" | 1.049" | 1.163" | 0.25 | 45 in-lbs |
| 1 1/4" | 1.380" | 1.510" | 0.30 | 50 in-lbs |
| 1 1/2" | 1.610" | 1.740" | 0.35 | 55 in-lbs |
| 2" | 2.067" | 2.197" | 0.50 | 60 in-lbs |
| 2 1/2" | 2.469" | 2.875" | 0.75 | 65 in-lbs |
| 3" | 3.068" | 3.500" | 1.00 | 70 in-lbs |
| 3 1/2" | 3.548" | 4.000" | 1.25 | 75 in-lbs |
| 4" | 4.026" | 4.500" | 1.50 | 80 in-lbs |
