Name: Red / White / Orange PVC Coated BS4568 GI Electrical Conduits With 1.2mm-1.6mm Thickenss
Brand: CHANGSHA ELEWELL IMPORT&EXPORT CO.,LTD
SKU: BS4568
Price: 2.60 USD
Availability: InStock

Red / White / Orange PVC Coated BS4568 GI Electrical Conduits With 1.2mm-1.6mm Thickenss

Basic Information

Place of Origin:	China
Brand Name:	RIFI
Certification:	BS
Model Number:	BS4568

Minimum Order Quantity:	1000 pcs
Price:	$0.6-$5/ PCS
Packaging Details:	plastic bag packing
Delivery Time:	15-30 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	500000 pcs per month

Contact Now

Size:

20mm-50mm

Class:

Class 3 ;Class 4

Thickness:

1.2mm-1.6mm

Length:

3.75 Meter

Standard:

BS4568 BS En61386

Finish:

Pre-Galvanized ; Hot DIP Galvanized

Type:

Steel Gi Conduit

Product Name:

Class 3 Conduits Class 4 Conduits Pipes

Highlight:

1.6mm BS4568 GI Electrical Conduits

White BS4568 GI Electrical Conduits

Red BS4568 GI Electrical Conduits

Red / White /orange PVC Coated BS4568 GI Electrical Conduits With 1.2mm-1.6mm Thickenss

Quick Detail:

BS4568 BSEN61386 BS31 Conduit orange Powder Coated GI conduit expoxy color conduit pipe
Standard:BS, BS 4568, BS 31
Grade:Q195-Q345, Q235, Q195
Thickness:1.2 - 1.6 mm
Section Shape:ROUND
Outer Diameter:20 - 50 mm
Place of Origin:Hunan, China
Application:Structure Pipe
Technique:pre-galvanized
Surface Treatment:galvanized and color powder coated
Special Pipe:EMT pipe; EMT conduit
Length:3.75M
Usage:Electrical Wiring
Quality:Competitive
Hot Tags:color coated conduit , orange conduit , expoxy conduit , powder coated conduit , 25mm gi conduit pipe class 3, China, manufacturers, suppliers, wholesale, price

Specifications:
BS4568 BSEN61386 BS31 Conduit orange Powder Coated GI conduit expoxy color conduit pipe

Outside Diameter					Length of Thread
Pipe Size	Min	Max	Wall Thickness(mm)	Length(m)	Min	Max
20	19.7mm	20mm	1.2-1.6	3.75	13mm	15mm
25	24.6mm	25mm	1.2-1.6	3.75	16mm	18mm
32	31.6mm	32mm	1.2-1.6	3.75	18mm	20mm
40	39.6mm	40mm	1.2-1.6	3.75	19mm	22mm
50	49.6mm	59mm	1.2-1.6	3.75	19mm	22mm

Applications:
RIFI BS4568 Bsen61386 BS31 Conduit Orange Powder Coated Gi Conduit Expoxy Color Conduit Pipe used to protect and route electrical wiring in a building or construction,Steel Conduit suppliers. It provides very good protection to enclosed conductors from impact, moisture, and chemical vapors. Varying number, size and types of conductors can be pulled into a conduit, which simplifies design and construction compared to multiple runs of cables or the expense of customized composite cable.

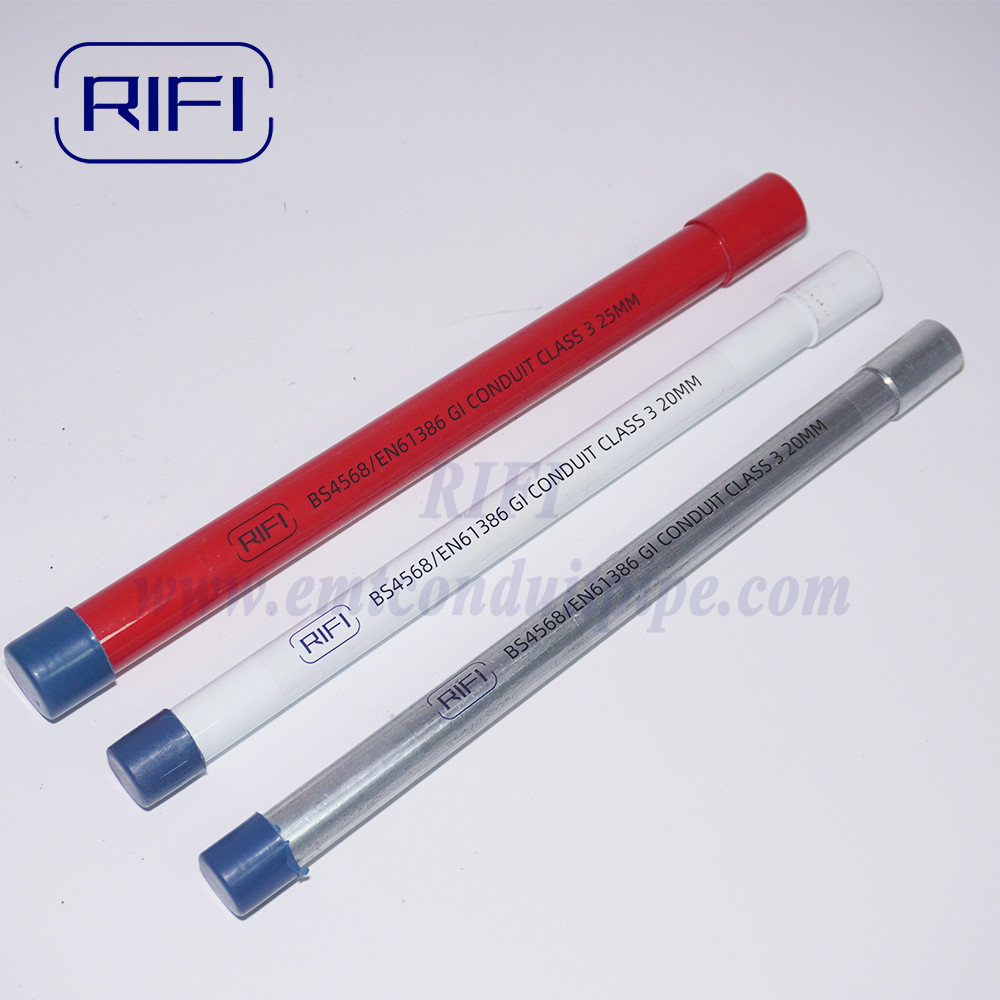

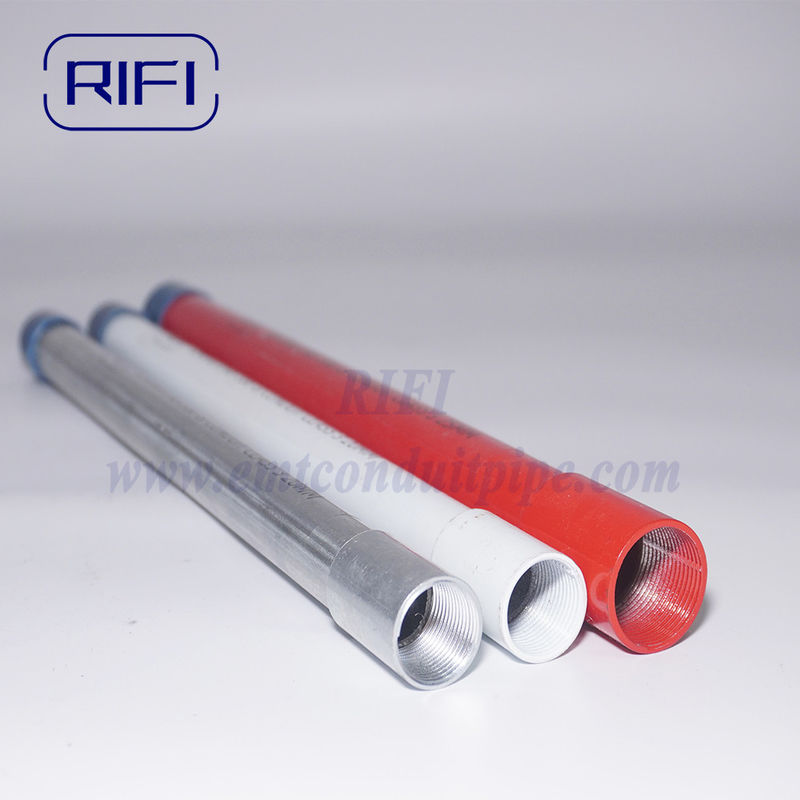

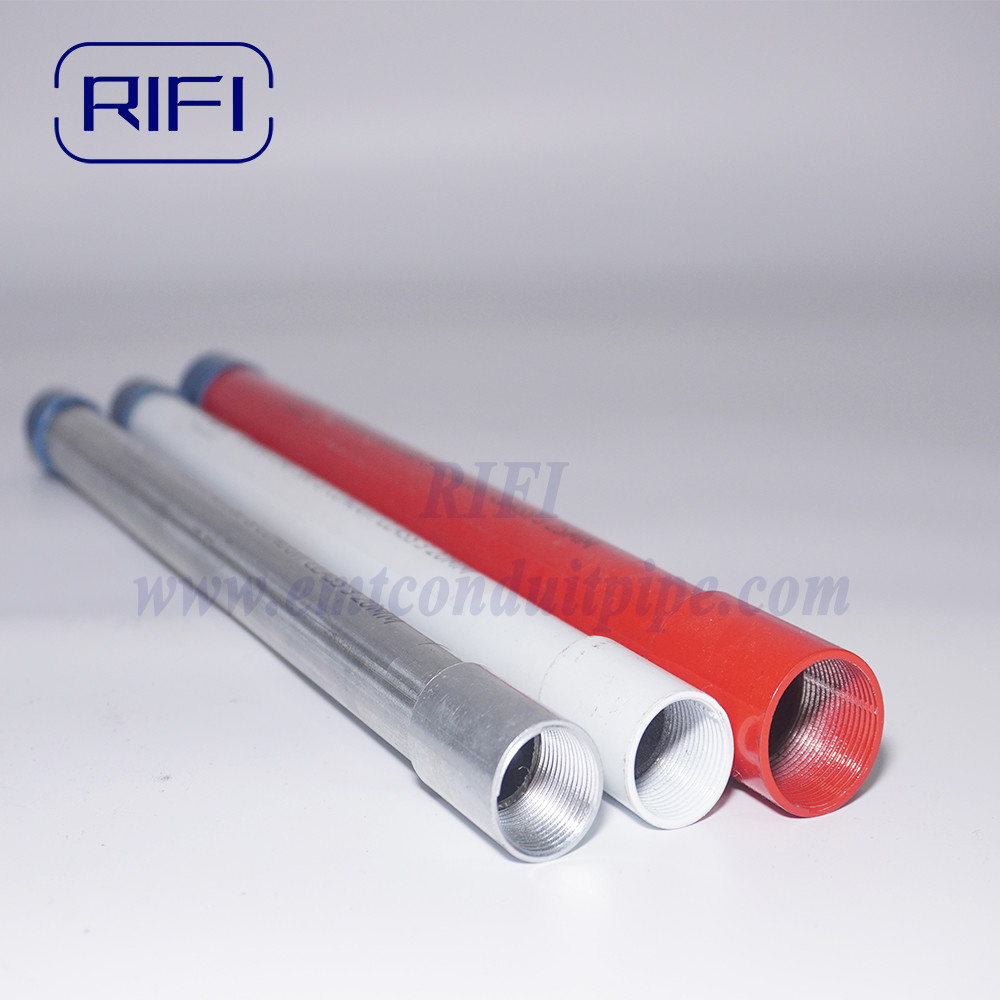

Red / White / Orange PVC Coated BS4568 GI Electrical Conduits With 1.2mm-1.6mm Thickenss 1

Packing

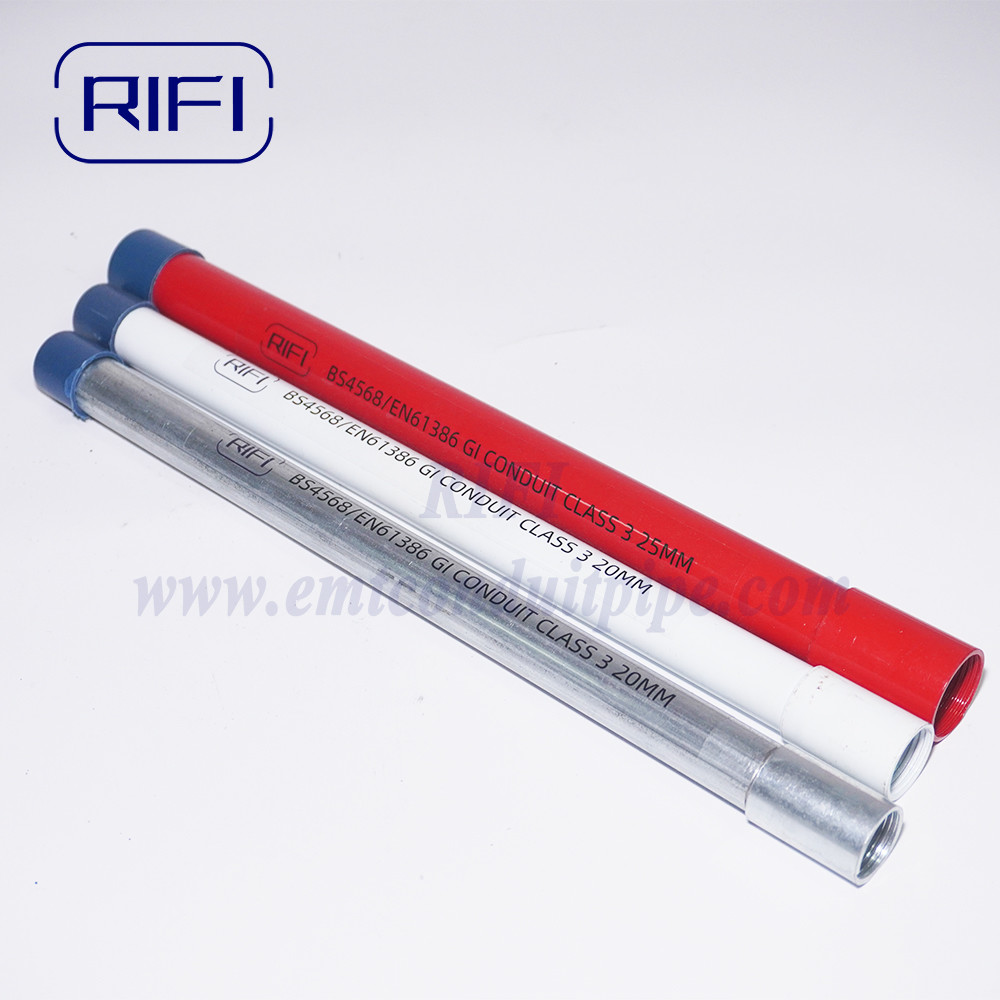

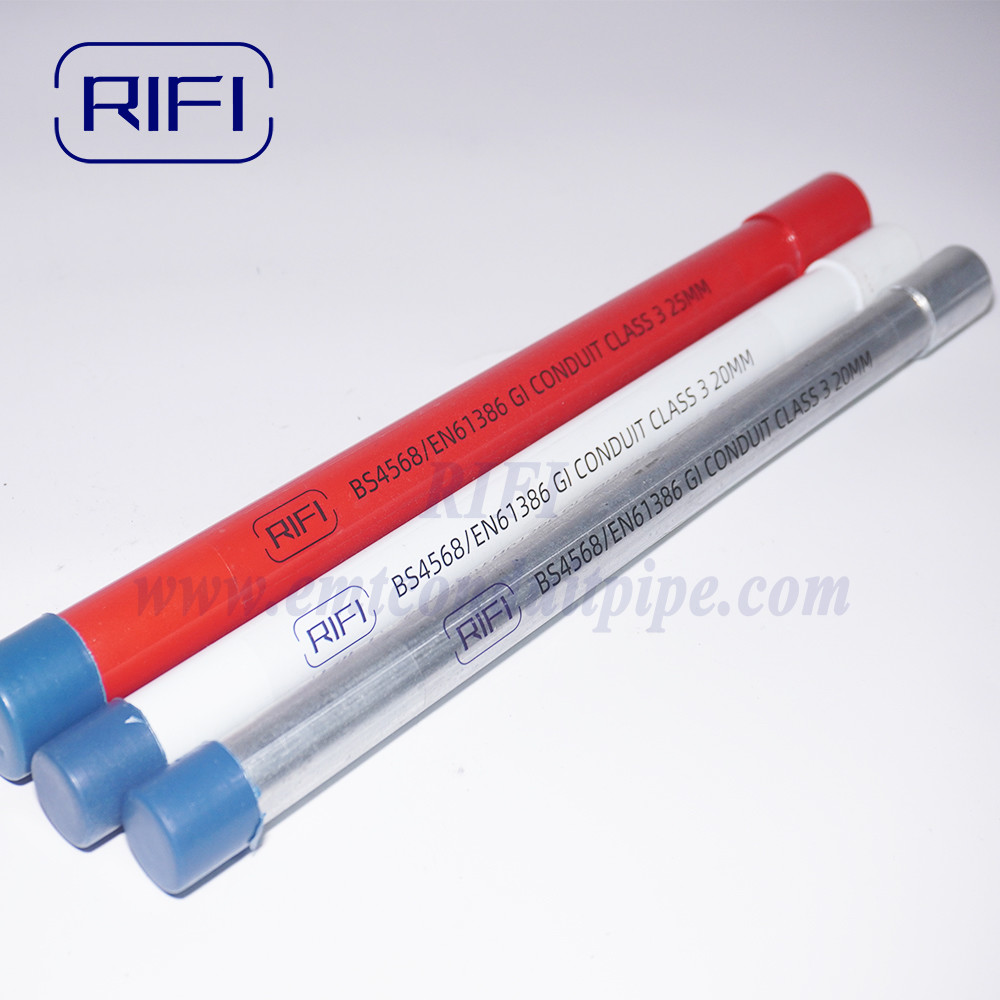

Red / White / Orange PVC Coated BS4568 GI Electrical Conduits With 1.2mm-1.6mm Thickenss 4

FAQ
Q1: How can I request a product catalog?
A: Pls send us your email and we will send you our e catalog ( pdf file ).
The PDF catalog we can send to you by email or WeTransfer.

Q2: What is your payment terms?
A:Normally 30% T/T deposit,balance against B/L copy;
the other is irrevocable L/C 100% at sight.

Q3: How about the delivery time?
A: Accord to your order list and quantity,mostly delivery in 30days.

Q4: How do we control the products' quality?
A: 1. high quality mold
2. raw materials control
3. production process quality control
4. final inspection
5. water testing (no leaking)
