Home ProductsEMT Conduit PipeUL Standard EMT Conduit Pipe with Customizable Length for Exposed and Concealed Work in Lighting Circuits

UL Standard EMT Conduit Pipe with Customizable Length for Exposed and Concealed Work in Lighting Circuits

UL Standard EMT Conduit Pipe with Customizable Length for Exposed and Concealed Work in Lighting Circuits
UL Standard EMT Conduit Pipe with Customizable Length for Exposed and Concealed Work in Lighting Circuits UL Standard EMT Conduit Pipe with Customizable Length for Exposed and Concealed Work in Lighting Circuits UL Standard EMT Conduit Pipe with Customizable Length for Exposed and Concealed Work in Lighting Circuits UL Standard EMT Conduit Pipe with Customizable Length for Exposed and Concealed Work in Lighting Circuits
Basic Information
Minimum Order Quantity: 1,000
Price: 0.8
Contact Now
Material: Carbon Steel Surface Finish: Pre-Galvanized ; Hot DIP Galvanized
Size Range: 1/2"-4" Thickness: Standard And Thinner ; As Customer Request
Standard Length: 3.05m Outside Diameter: 0.706-4.500 Inch (17.93-114.30 Mm)
Wall Thickness: 0.042-0.083 Inch (1.07-2.11 Mm) Length Tolerance: ±0.25 Inch (6.35 Mm)
Diameter Tolerance: 1/2"-2": ±0.005 Inch (0.13 Mm); 2-1/2"-4": ±0.016 Inch (0.41 Mm) Packing Quantity: 20pcs (1/2"), 15pcs (3/4"), 10pcs (1"), 5pcs (1-1/4" To 2"), 1pc (2-1/2" To 4")
Production Capacity: 250 Ton/ Month Model Number: EMT
Trade Size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4" Bundle Packing: Small Bundle And Big Bundle Available
Transport Package: Plastic Woven Bag Packing
Highlight:

Customizable Length EMT Conduit Pipe

,

Exposed and Concealed Work Electrical Metallic Tubing

,

Lighting Circuits Metal Wire Tube

UL Standard 3/4 Inch 1 Inch Electrical Conduit Metal Wire Tube
Product Description

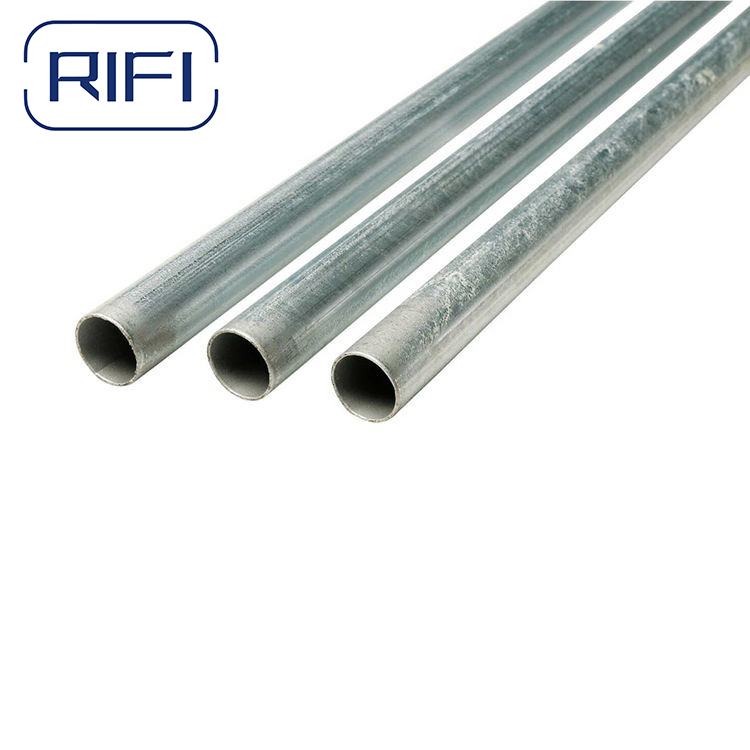

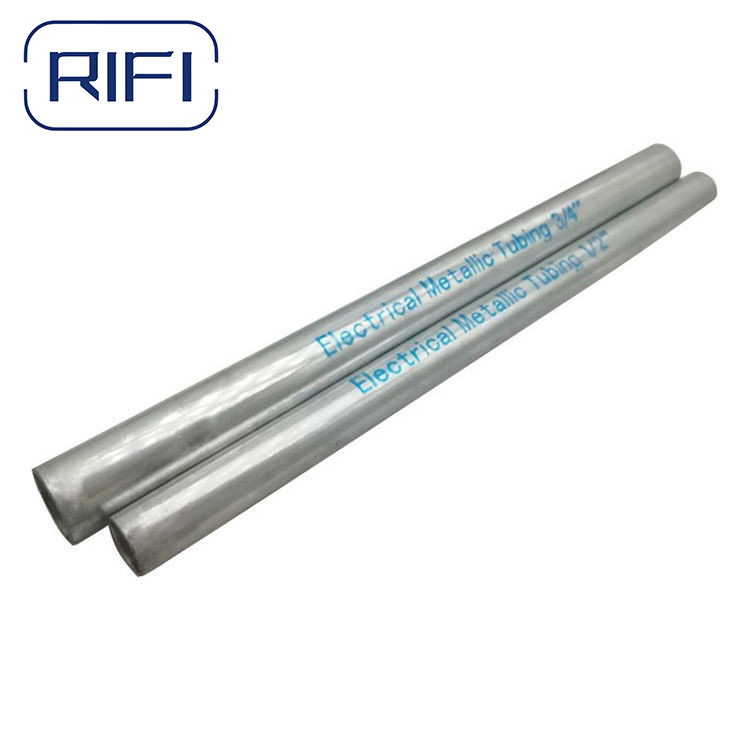

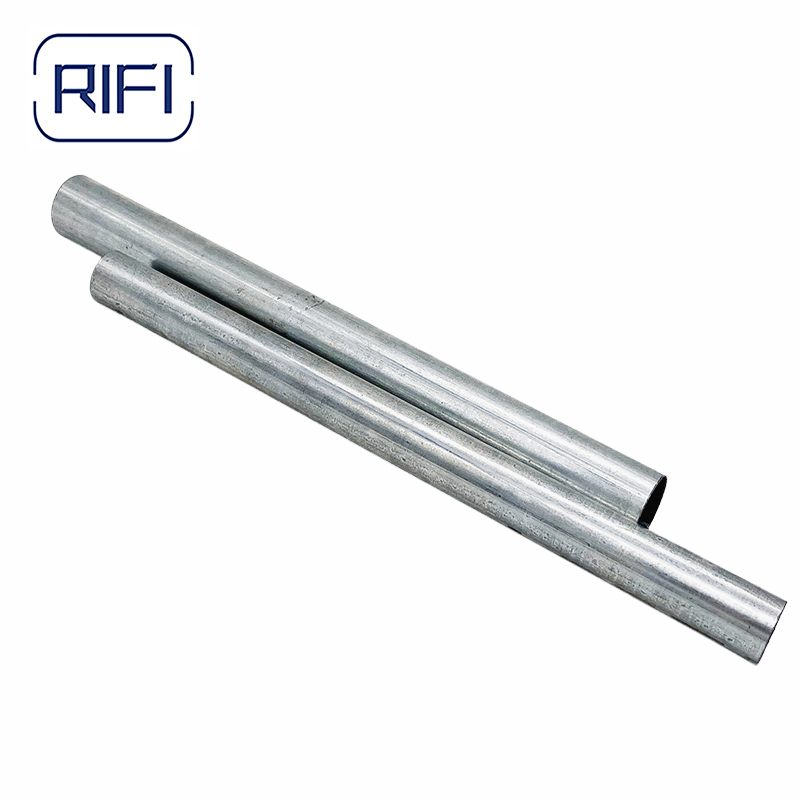

UL standard 3/4 inch 1 inch electrical conduit metal wire tube available in Pre-galvanized or Hot-Dipped Galvanized finishes.

Product Specifications
Trade Size Outside Diameter Wall Thickness Length Packing
1/2" 0.706" (17.93mm) 0.042" (1.07mm) 10' (3050mm) 20pcs/bundle
3/4" 0.922" (23.42mm) 0.049" (1.25mm) 10' (3050mm) 15pcs/bundle
1" 1.163" (29.54mm) 0.057" (1.45mm) 10' (3050mm) 10pcs/bundle
1-1/4" 1.510" (38.35mm) 0.065" (1.65mm) 10' (3050mm) 5pcs/bundle
1-1/2" 1.740" (44.20mm) 0.065" (1.65mm) 10' (3050mm) 5pcs/bundle
2" 2.197" (55.80mm) 0.065" (1.65mm) 10' (3050mm) 5pcs/bundle
2-1/2" 2.875" (73.03mm) 0.072" (1.83mm) 10' (3050mm) 1pc/bundle
3" 3.500" (88.90mm) 0.072" (1.83mm) 10' (3050mm) 1pc/bundle
3-1/2" 4.000" (101.60mm) 0.083" (2.11mm) 10' (3050mm) 1pc/bundle
4" 4.500" (114.30mm) 0.083" (2.11mm) 10' (3050mm) 1pc/bundle

Tolerances: Length ±0.25" (6.35mm), Outside Diameter 1/2" through 2" ±0.005" (0.13mm), 2-1/2" through 4" ±0.016" (0.41mm)

Note: Custom thicknesses or lengths available upon request.

UL Standard EMT Conduit Pipe with Customizable Length for Exposed and Concealed Work in Lighting Circuits 0 UL Standard EMT Conduit Pipe with Customizable Length for Exposed and Concealed Work in Lighting Circuits 1 UL Standard EMT Conduit Pipe with Customizable Length for Exposed and Concealed Work in Lighting Circuits 2 UL Standard EMT Conduit Pipe with Customizable Length for Exposed and Concealed Work in Lighting Circuits 3 UL Standard EMT Conduit Pipe with Customizable Length for Exposed and Concealed Work in Lighting Circuits 4
Applications

Designed to protect and route electrical cables and conductors. Suitable for both exposed and concealed work, including above-ground applications for lighting circuits, control lines, and other low-power electrical systems.

UL Standard EMT Conduit Pipe with Customizable Length for Exposed and Concealed Work in Lighting Circuits 5
Our Service
  • 24-hour prompt email response
  • Custom thicknesses and sizes available upon request
  • Free samples available for reference
  • Flexible trade terms and payment options
  • Excellent after-sales service
Frequently Asked Questions
Q: Are you a trading company or manufacturing company?
A: We are both - we have 2 production bases and about 10 sourcing factories to meet customer demand for complete product lines.
Q: When can I get the quotation?
A: For regular items within 24 hours; for special or custom items, we may need slightly more time.
Q: How can I request product samples?
A: Samples are free but courier charges apply. Please send us your sample list and courier account number.
Q: How can I request a product catalog?
A: Please provide your email address and we will send you our PDF catalog via email or WeTransfer.
Q: What are your payment terms?
A: Normally 30% T/T deposit with balance against B/L copy; we also accept irrevocable L/C 100% at sight.
Q: What is your typical delivery time?
A: Depending on your order list and quantity, most deliveries are completed within 30 days.
Q: How do you ensure product quality?
A: Our quality control process includes: high-quality molds, raw materials control, production process quality control, final inspection, and water testing (no leaking).
