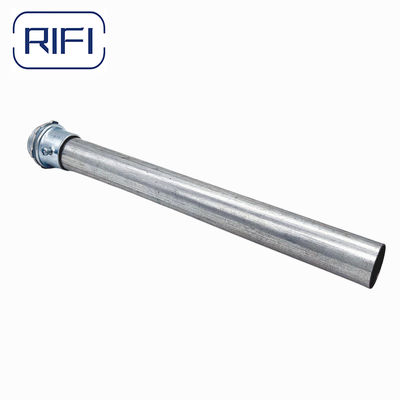

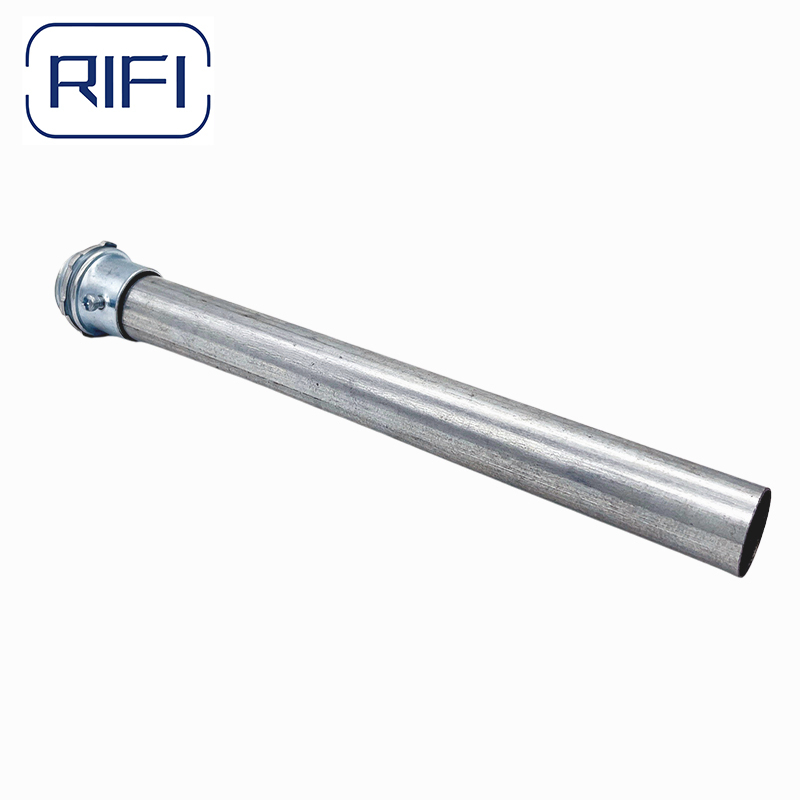

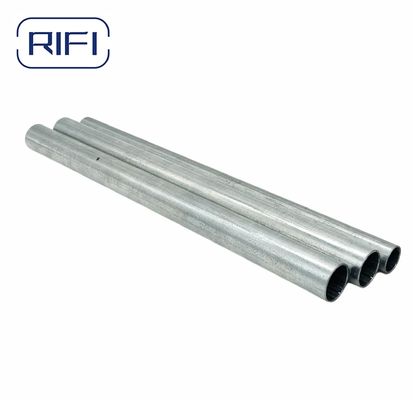

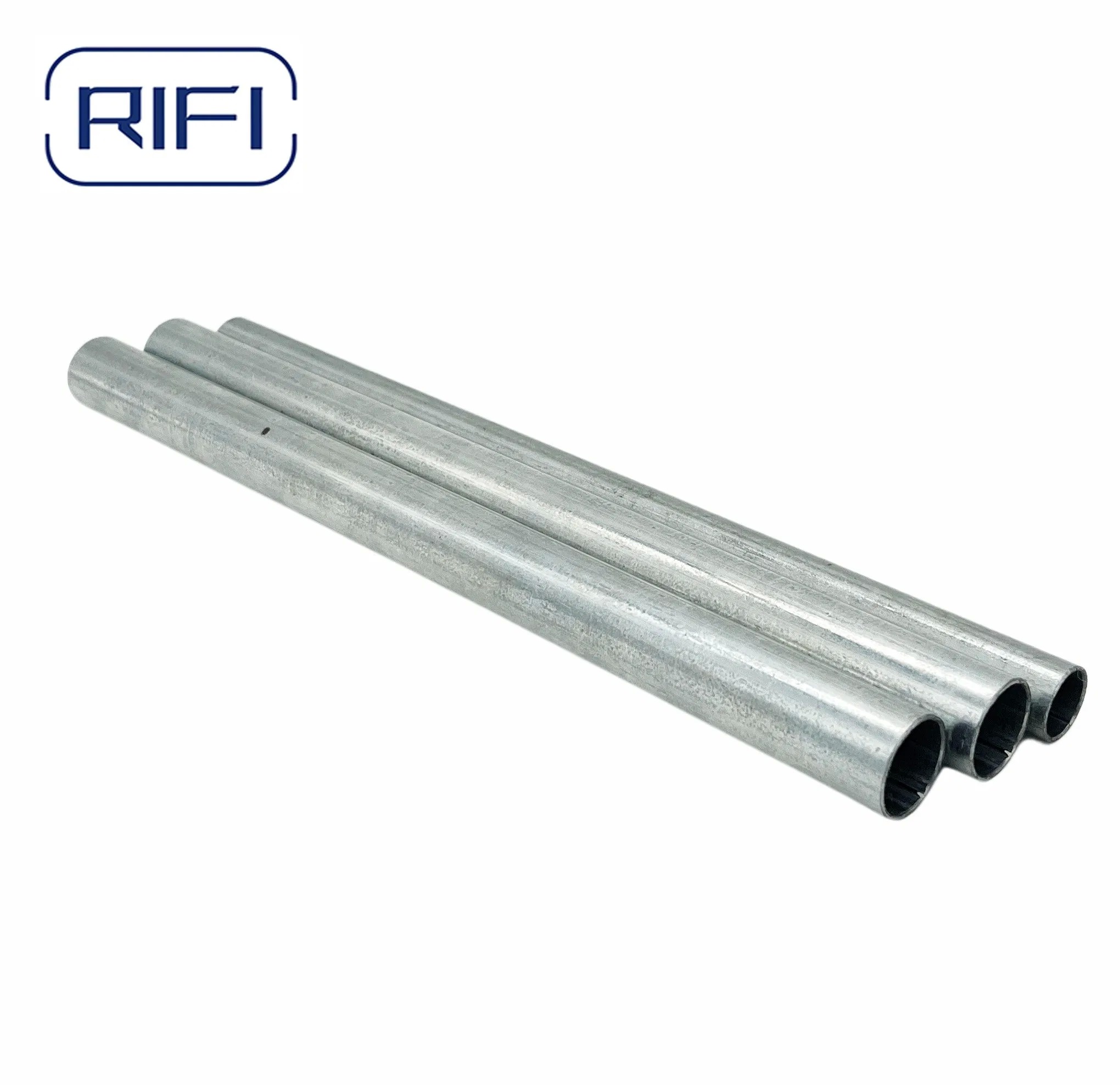

ANSI C80.3 EMT Conduit Pipe 1/2"-4" Galvanized Carbon Steel for Exposed and Concealed Work with Customizable Length and Small Bundle Packing

ANSI C80.3 EMT Conduit Pipe 1/2"-4" Galvanized Carbon Steel for Exposed and Concealed Work with Customizable Length and Small Bundle Packing
ANSI C80.3 EMT Conduit Pipe 1/2"-4" Galvanized Carbon Steel for Exposed and Concealed Work with Customizable Length and Small Bundle Packing ANSI C80.3 EMT Conduit Pipe 1/2"-4" Galvanized Carbon Steel for Exposed and Concealed Work with Customizable Length and Small Bundle Packing ANSI C80.3 EMT Conduit Pipe 1/2"-4" Galvanized Carbon Steel for Exposed and Concealed Work with Customizable Length and Small Bundle Packing
Basic Information
Certification: UL
Minimum Order Quantity: 1,000
Price: 0.8
Contact Now
Material: Carbon Steel Surface Treatment: Galvanised
Surface Finish: Pre-Galvanized ; Hot DIP Galvanized Size Range: 1/2"-4"
Thickness: Standard And Thinner ; As Customer Request Standard Length: 3.05m
Outside Diameter: 0.706"-4.500" Wall Thickness: 0.042"-0.083"
Length Tolerance: ±0.25"(6.35mm) Diameter Tolerance: 1/2"-2": ±0.005"(0.13mm); 2-1/2"-4": ±0.016"(0.41mm)
Packing Options: Small Bundle And Big Bundle Available Transport Package: Plastic Woven Bag Packing
Production Capacity: 250 Ton/ Month Standard Compliance: UL797, ANSI C80.3
Bundle Quantity: 1pcs-20pcs (varies By Size)
Highlight:

Customizable Length EMT Conduit Pipe

,

Small Bundle Packing Electrical Metallic Tubing

,

Exposed and Concealed Work EMT Tube

ANSI C80.3 EMT Tube Sizes 1/2"-4" EMT Conduit Pipe
Pre-galvanized / Hot-Dipped Galvanized
Trade Size Outside Diameter Wall Thickness Length Packing
1/2" 0.706 (17.93mm) 0.042 (1.07mm) 10 (3050mm) 20pcs
3/4" 0.922 (23.42mm) 0.049 (1.25mm) 10 (3050mm) 15pcs
1" 1.163 (29.54mm) 0.057 (1.45mm) 10 (3050mm) 10pcs
1-1/4" 1.510 (38.35mm) 0.065 (1.65mm) 10 (3050mm) 5pcs
1-1/2" 1.740 (44.20mm) 0.065 (1.65mm) 10 (3050mm) 5pcs
2" 2.197 (55.80mm) 0.065 (1.65mm) 10 (3050mm) 5pcs
2-1/2" 2.875 (73.03mm) 0.072 (1.83mm) 10 (3050mm) 1pcs
3" 3.500 (88.90mm) 0.072 (1.83mm) 10 (3050mm) 1pcs
3-1/2" 4.000 (101.60mm) 0.083 (2.11mm) 10 (3050mm) 1pcs
4" 4.500 (114.30mm) 0.083 (2.11mm) 10 (3050mm) 1pcs
Tolerances: Length ±0.25" (6.35mm), Outside Diameter 1/2" through 2" ±0.005" (0.13mm), 2-1/2" through 4" ±0.016" (0.41mm)
Note: If you need different thickness or length, please contact us.
ANSI C80.3 EMT Conduit Pipe 1/2"-4" Galvanized Carbon Steel for Exposed and Concealed Work with Customizable Length and Small Bundle Packing 0
EMT Conduit Applications
1/2" 10 feet EMT conduit galvanized steel EMT tubing protects and routes cables and conductors. Can be used for both exposed and concealed work, above ground for lighting circuits, control lines, and other low power applications.
ANSI C80.3 EMT Conduit Pipe 1/2"-4" Galvanized Carbon Steel for Exposed and Concealed Work with Customizable Length and Small Bundle Packing 1
Packaging & Shipping
ANSI C80.3 EMT Conduit Pipe 1/2"-4" Galvanized Carbon Steel for Exposed and Concealed Work with Customizable Length and Small Bundle Packing 2
Our Service
  • 24 hours prompt reply by email
  • Other thickness & size available on request
  • Free samples for your reference
  • Flexible trade terms and payment terms
  • Excellent after-sale service
Our Other Products
ANSI C80.3 EMT Conduit Pipe 1/2"-4" Galvanized Carbon Steel for Exposed and Concealed Work with Customizable Length and Small Bundle Packing 3
EMT/IMC/Rigid conduit and fittings
ANSI C80.3 EMT Conduit Pipe 1/2"-4" Galvanized Carbon Steel for Exposed and Concealed Work with Customizable Length and Small Bundle Packing 4
FAQ
Q1: Are you a trading company or manufacturing company?
A: Both we are, we have 2 production bases and about 10 sourcing factories to meet customer whole line items demand.
Q2: When can I get the quotation?
A: For regular items within 24 hours; For special items or customized items need a little more time.
Q3: How can I request product samples?
A: The samples are free but courier charge will be collected. Please send us samples list and courier account number.
Q4: How can I request a product catalog?
A: Please send us your email and we will send you our e-catalog (PDF file). The PDF catalog we can send to you by email or WeTransfer.
Q5: What is your payment terms?
A: Normally 30% T/T deposit, balance against B/L copy; the other is irrevocable L/C 100% at sight.
Q6: How about the delivery time?
A: According to your order list and quantity, mostly delivery in 30 days.
Q7: How do we control the products' quality?
A: 1. High quality mold
2. Raw materials control
3. Production process quality control
4. Final inspection
5. Water testing (no leaking)
