Carbon Steel EMT Conduit Elbow with 1/2"-4" Size Range for Wall Application

Carbon Steel EMT Conduit Elbow with 1/2"-4" Size Range for Wall Application
Carbon Steel EMT Conduit Elbow with 1/2"-4" Size Range for Wall Application Carbon Steel EMT Conduit Elbow with 1/2"-4" Size Range for Wall Application Carbon Steel EMT Conduit Elbow with 1/2"-4" Size Range for Wall Application Carbon Steel EMT Conduit Elbow with 1/2"-4" Size Range for Wall Application Carbon Steel EMT Conduit Elbow with 1/2"-4" Size Range for Wall Application
Basic Information
Certification: UL
Minimum Order Quantity: 1,000
Price: 0.12
Contact Now
Model NO.: EE Surface Treatment: Galvanised
Material: Carbon Steel Finish: Pre-Galvanized; Hot DIP Galvanized
Type: Metal Electrical Conduit Elbow Specification: 1/2"-4"
Production Capacity: 50000 Trade Size: 1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4"
Radius: 102mm, 114mm, 146mm, 184mm, 210mm, 241mm, 267mm, 330mm, 406mm Bend Angle: 90°
Transport Package: Carton HS Code: 7306309000
Electrical Properties: EMT Conduit Size Range: 1/2" To 4"
Conduit Type: EMT
Highlight:

1/2"-4" EMT Conduit Elbow

,

Carbon Steel EMT Conduit Elbow

,

Wall Application EMT Conduit Elbow

Wholesale High Quality Pre-Galvanized Steel EMT Conduit Elbow 90 Degree EMT Elbow
RIFI EMT Elbow provides a seamless and efficient method to navigate turns and corners in your Electrical Metallic Tubing (EMT) conduit system. Achieve clean and organized conduit routing without compromising wire integrity.
Product Specifications
  • Material: Steel
  • Finish: Electrical Pre-galvanized / Hot-dipped Galvanized
  • Place of origin: China
  • Size range: 1/2" to 4"
  • Brand: RIFI
Technical Specifications
Trade Size Radius (mm)
1/2" 102
3/4" 114
1" 146
1-1/4" 184
1-1/2" 210
2" 241
2-1/2" 267
3" 330
4" 406
Applications
Designed for coupling two ends of EMT conduit to form a 90° bend in electrical installations.
Product Images

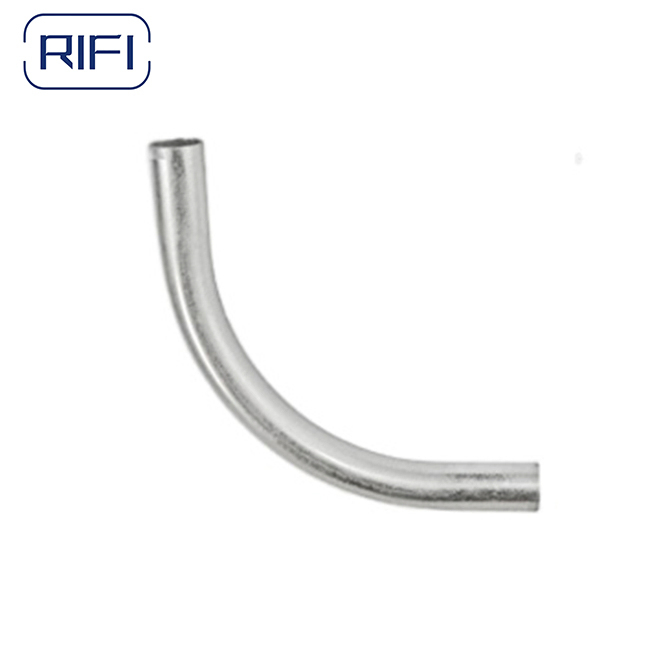

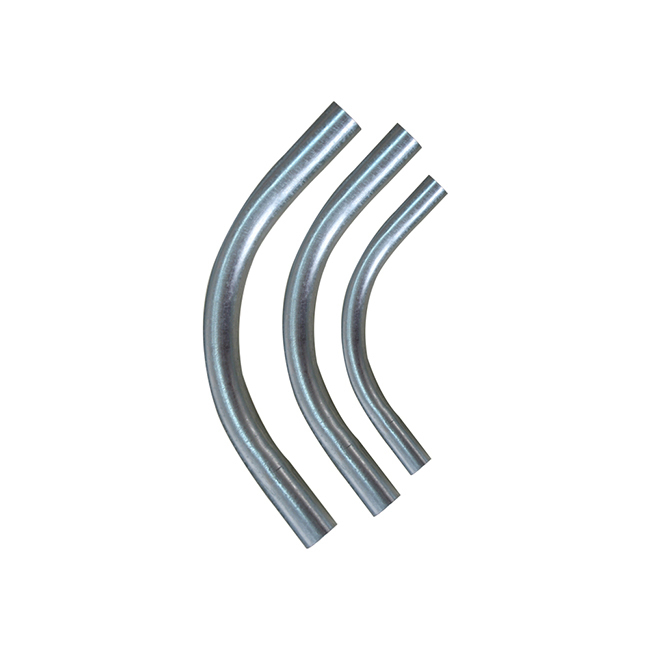

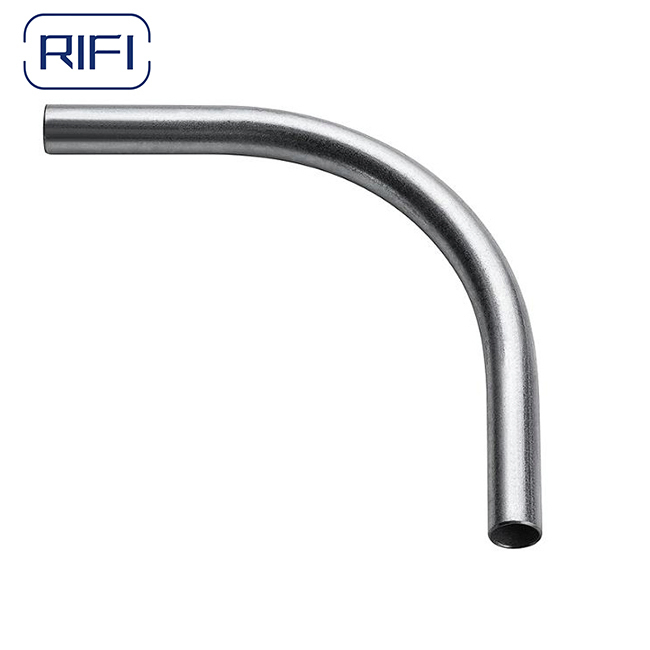

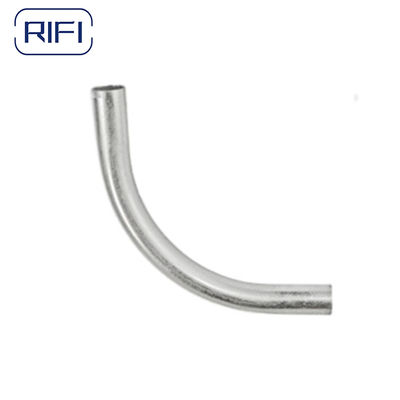

Carbon Steel EMT Conduit Elbow with 1/2"-4" Size Range for Wall Application 0
Carbon Steel EMT Conduit Elbow with 1/2"-4" Size Range for Wall Application 1
Carbon Steel EMT Conduit Elbow with 1/2"-4" Size Range for Wall Application 2
Carbon Steel EMT Conduit Elbow with 1/2"-4" Size Range for Wall Application 3
Carbon Steel EMT Conduit Elbow with 1/2"-4" Size Range for Wall Application 4
