Home ProductsEMT Conduit PipeHot Dip Galvanized EMT Conduit Pipe 1/2"-4" Size Range UL797 ANSI C80.3 Standard Electrical Metallic Tubing

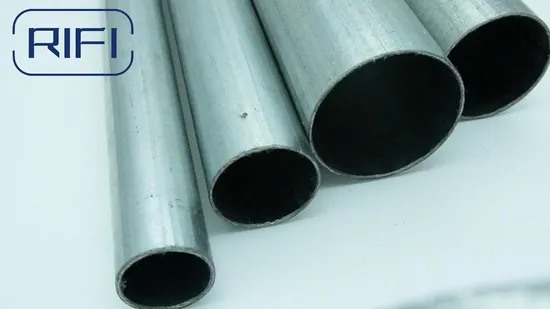

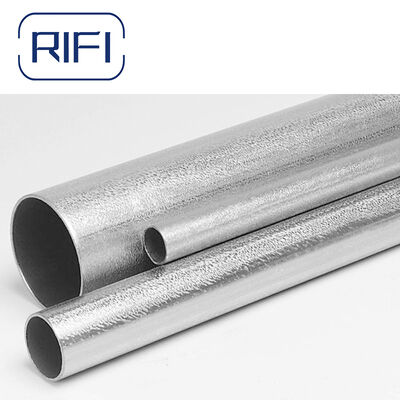

Hot Dip Galvanized EMT Conduit Pipe 1/2"-4" Size Range UL797 ANSI C80.3 Standard Electrical Metallic Tubing

Hot Dip Galvanized EMT Conduit Pipe 1/2"-4" Size Range UL797 ANSI C80.3 Standard Electrical Metallic Tubing
Hot Dip Galvanized EMT Conduit Pipe 1/2"-4" Size Range UL797 ANSI C80.3 Standard Electrical Metallic Tubing Hot Dip Galvanized EMT Conduit Pipe 1/2"-4" Size Range UL797 ANSI C80.3 Standard Electrical Metallic Tubing Hot Dip Galvanized EMT Conduit Pipe 1/2"-4" Size Range UL797 ANSI C80.3 Standard Electrical Metallic Tubing Hot Dip Galvanized EMT Conduit Pipe 1/2"-4" Size Range UL797 ANSI C80.3 Standard Electrical Metallic Tubing Hot Dip Galvanized EMT Conduit Pipe 1/2"-4" Size Range UL797 ANSI C80.3 Standard Electrical Metallic Tubing
Basic Information
Minimum Order Quantity: 1,000
Price: 0.8
Contact Now
Material: Carbon Steel Surface Finish: Pre-Galvanized ; Hot DIP Galvanized
Size: 1/2"-4" Thickness: Standard And Thinner ; As Customer Request
Length: Standard 3.05m , Can As Customer Request Outside Diameter: 0.706-4.500 Inch (17.93-114.30 Mm)
Wall Thickness: 0.042-0.083 Inch (1.07-2.11 Mm) Bundle Packing: 20pcs (1/2"), 15pcs (3/4"), 10pcs (1"), 5pcs (1-1/4" To 2"), 1pc (2-1/2" To 4")
Length Tolerance: ±0.25 Inch (6.35 Mm) Diameter Tolerance: ±0.005 Inch (0.13 Mm) (1/2"-2"), ±0.016 Inch (0.41 Mm) (2-1/2"-4")
Production Capacity: 250 Ton/ Month Transport Package: Plastic Woven Bag Packing
Standard: UL797, ANSI C80.3 HS Code: 7306309000
Packing Options: Small Bundle And Big Bundle Available
Highlight:

Hot Dip Galvanized EMT Conduit Pipe

,

1/2"-4" Size Range Electrical Metallic Tubing

,

UL797 ANSI C80.3 Standard EMT Tubing

1 1/2 Inch Electrical Metallic Tubing Hot Dip Galvanized EMT Pipe
High-quality electrical metallic tubing with hot dip galvanized coating for superior corrosion resistance and durability.
Product Specifications
Trade Size Outside Diameter Wall Thickness Length Packing
1/2"0.706" (17.93mm)0.042" (1.07mm)10' (3050mm)20pcs
3/4"0.922" (23.42mm)0.049" (1.25mm)10' (3050mm)15pcs
1"1.163" (29.54mm)0.057" (1.45mm)10' (3050mm)10pcs
1-1/4"1.510" (38.35mm)0.065" (1.65mm)10' (3050mm)5pcs
1-1/2"1.740" (44.20mm)0.065" (1.65mm)10' (3050mm)5pcs
2"2.197" (55.80mm)0.065" (1.65mm)10' (3050mm)5pcs
2-1/2"2.875" (73.03mm)0.072" (1.83mm)10' (3050mm)1pcs
3"3.500" (88.90mm)0.072" (1.83mm)10' (3050mm)1pcs
3-1/2"4.000" (101.60mm)0.083" (2.11mm)10' (3050mm)1pcs
4"4.500" (114.30mm)0.083" (2.11mm)10' (3050mm)1pcs
Tolerances: Length ±0.25" (6.35mm), Outside Diameter 1/2" through 2" ±0.005" (0.13mm), 2-1/2" through 4" ±0.016" (0.41mm)
Note: Custom thickness and length options available upon request.
Hot Dip Galvanized EMT Conduit Pipe 1/2"-4" Size Range UL797 ANSI C80.3 Standard Electrical Metallic Tubing 0
EMT Conduit Applications
Designed to protect and route electrical cables and conductors. Suitable for both exposed and concealed installations, ideal for above-ground lighting circuits, control lines, and other low-power applications.
Hot Dip Galvanized EMT Conduit Pipe 1/2"-4" Size Range UL797 ANSI C80.3 Standard Electrical Metallic Tubing 1
Packaging & Shipping
Hot Dip Galvanized EMT Conduit Pipe 1/2"-4" Size Range UL797 ANSI C80.3 Standard Electrical Metallic Tubing 2
Company Profile
Hot Dip Galvanized EMT Conduit Pipe 1/2"-4" Size Range UL797 ANSI C80.3 Standard Electrical Metallic Tubing 3
Our Services
  • 24-hour prompt email response
  • Custom thickness and size options available
  • Free samples for evaluation
  • Flexible trade and payment terms
  • Excellent after-sales service
Complete EMT/IMC/Rigid Conduit and Fittings
Hot Dip Galvanized EMT Conduit Pipe 1/2"-4" Size Range UL797 ANSI C80.3 Standard Electrical Metallic Tubing 4
Frequently Asked Questions
Q1: Are you a trading company or manufacturing company?
A: We operate as both, with 2 production bases and approximately 10 sourcing factories to meet comprehensive customer requirements.
Q2: When can I get the quotation?
A: Standard items quoted within 24 hours; specialized or custom items may require additional time.
Q3: How can I request product samples?
A: Samples are provided free of charge, with courier fees to be covered by the customer. Please provide your sample list and courier account number.
Q4: How can I request a product catalog?
A: Please provide your email address and we will send our PDF catalog via email or WeTransfer.
Q5: What are your payment terms?
A: Standard terms include 30% T/T deposit with balance against B/L copy, or 100% irrevocable L/C at sight.
Q6: What is the delivery time?
A: Delivery typically within 30 days, depending on order specifications and quantity.
Q7: How do you control product quality?
A: Our quality control process includes: high-quality molds, raw materials inspection, production process monitoring, final inspection, and water testing for leak prevention.
