Product Description

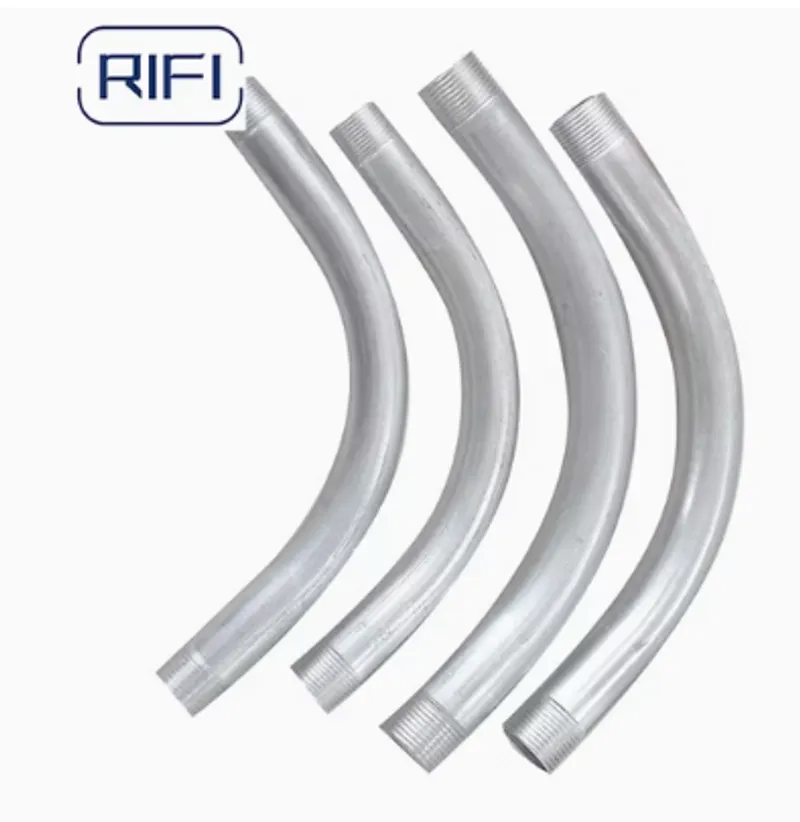

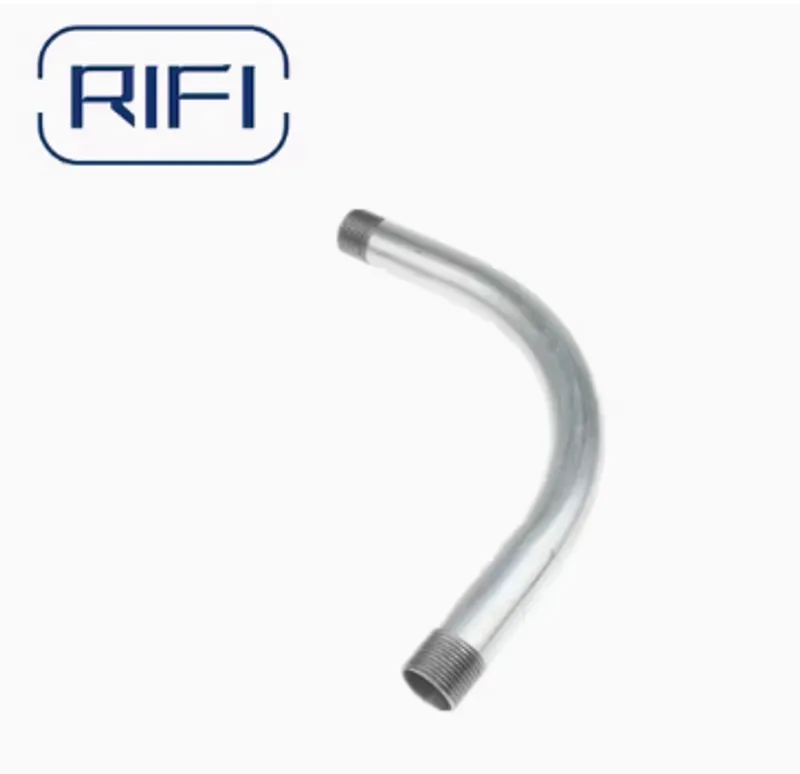

IMC (Intermediate Metal Conduit) elbows are galvanized steel fittings used to change the routing direction of IMC conduits. They are available in 45° and 90° angles and feature NPT threads at both ends for a secure connection. Made of hot-dip galvanized steel, these elbows offer excellent corrosion resistance, a smooth inner wall, and a large radius for easy cable routing, protecting wires from damage while maintaining the integrity of the cable tray. Compatible with IMC conduits, connectors, and junction boxes, these elbows are suitable for indoor/outdoor, surface/concealed installations in commercial, industrial, and heavy-duty residential applications. Compliant with UL 1242 and ANSI C80.6 standards.
Specification
Galvanized Rigid Conduit Fittings 90° Degree Rigid Steel Conduit Elbows
Rigid 90 degree Elbow
| RE050 | 1/2" |
| RE075 | 3/4" |
| RE100 | 1" |
| RE125 | 1-1/4" |
| RE150 | 1-1/2" |
| RE200 | 2" |
| RE300 | 3" |
| RE400 | 4" |
Rigid 45 degree elbow
| HRE050 | 1/2" |
| HRE075 | 3/4" |
| HRE100 | 1" |
| HRE125 | 1-1/4" |
| HRE150 | 1-1/2" |
| HRE200 | 2" |

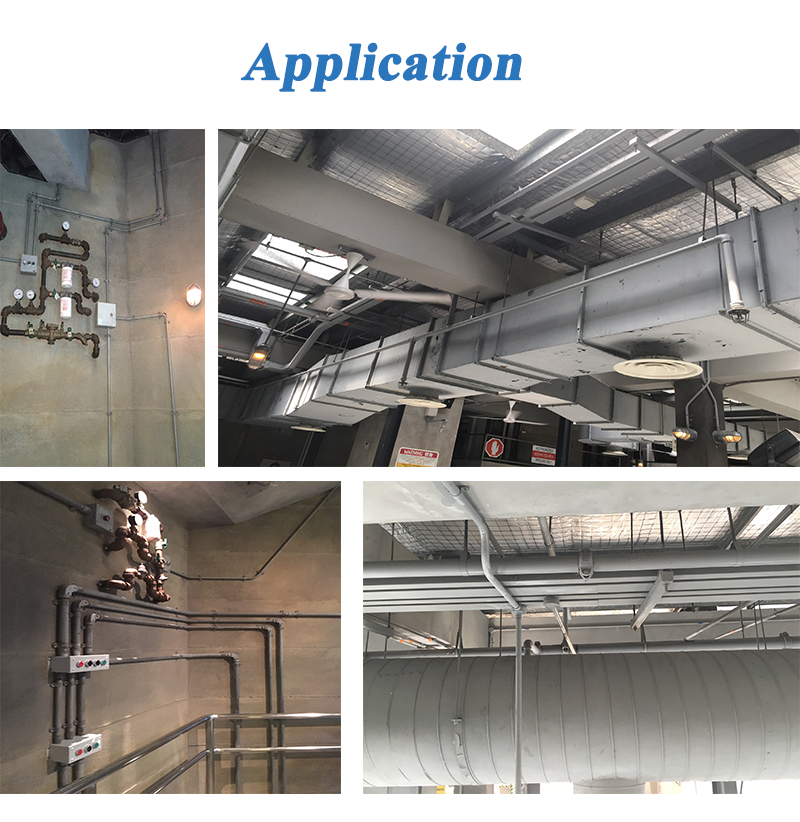

Application

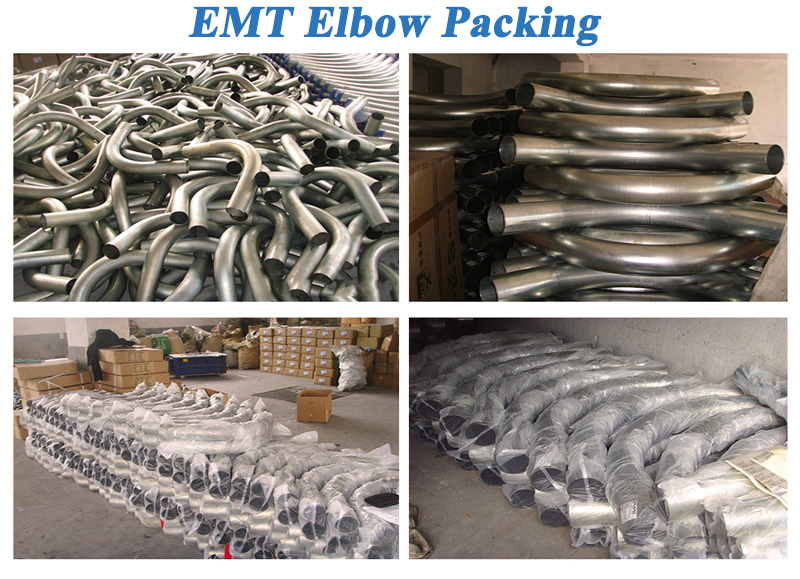

Packing
