Epoxy Coated Strut Channel
Description
The Epoxy Coated Strut Channel is designed for structural support applications in environments requiring enhanced corrosion and chemical resistance. Manufactured from high-quality carbon steel and finished with a durable epoxy coating, it provides superior protection against moisture, chemicals, and harsh industrial conditions.
Compared with pre-galvanized or hot dip galvanized finishes, epoxy coating offers additional surface durability and aesthetic appearance, making it suitable for indoor, semi-outdoor, and corrosive environments. It is widely used in MEP systems, cable management structures, mechanical installations, and industrial support frameworks..
Specification
Product Name: Epoxy Coated Strut Channel
Material: Carbon Steel
Common Sizes: 41×21mm, 41×41mm, 41×62mm, 41×82mm (customizable)
Thickness: 1.5mm – 2.5mm
Length: 3m / 6m (customizable)
Type: Slotted / Solid (available)
Surface Treatment: Epoxy Powder Coated

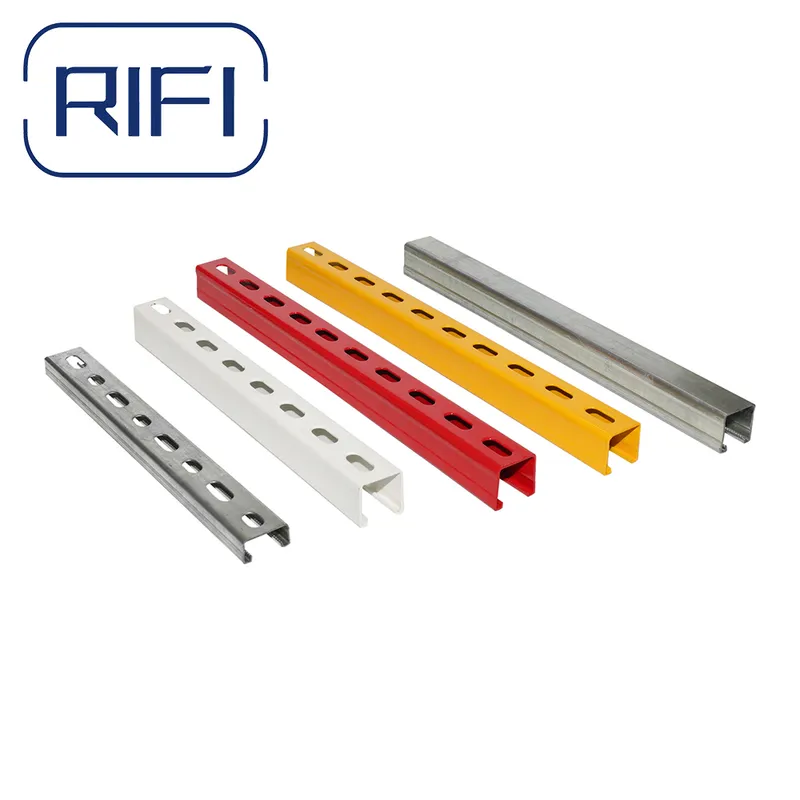

Color: Green / Black / Custom RAL colors
Load Capacity: According to thickness and installation methodOEM/ODM: Supported
| CAT# | Channel Dimension | Thickness | ||
|---|---|---|---|---|
| Plain Type/Slotted Type | Height “H” | Width “W” | Gauge | MM |
| RF 205/215 | 13/16"(21mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 305/315 | 1" (25mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 405/415 | 1-5/8" (41mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 605/615 | 2-7/16"(62mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 805/815 | 3-1/4"(82mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 204/214 | 13/16"(21mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 304/314 | 1" (25mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 404/414 | 1-5/8" (41mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 604/614 | 2-7/16"(62mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 804/814 | 3-1/4"(82mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 203/213 | 13/16"(21mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 303/313 | 1" (25mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 403/413 | 1-5/8" (41mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 202/212 | 13/16"(21mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| RF 302/212 | 1" (25mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| RF 402/412 | 1-5/8" (41mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| For Serrated channel add " S"after the CAT# No. Ex： RF 205S | ||||
| For Ribbed channel add " R" after the CAT# No. Ex： RF 205R | ||||
| For Serrated and Ribbed channel add " SR "after the CAT# No. Ex： RF 520SR |

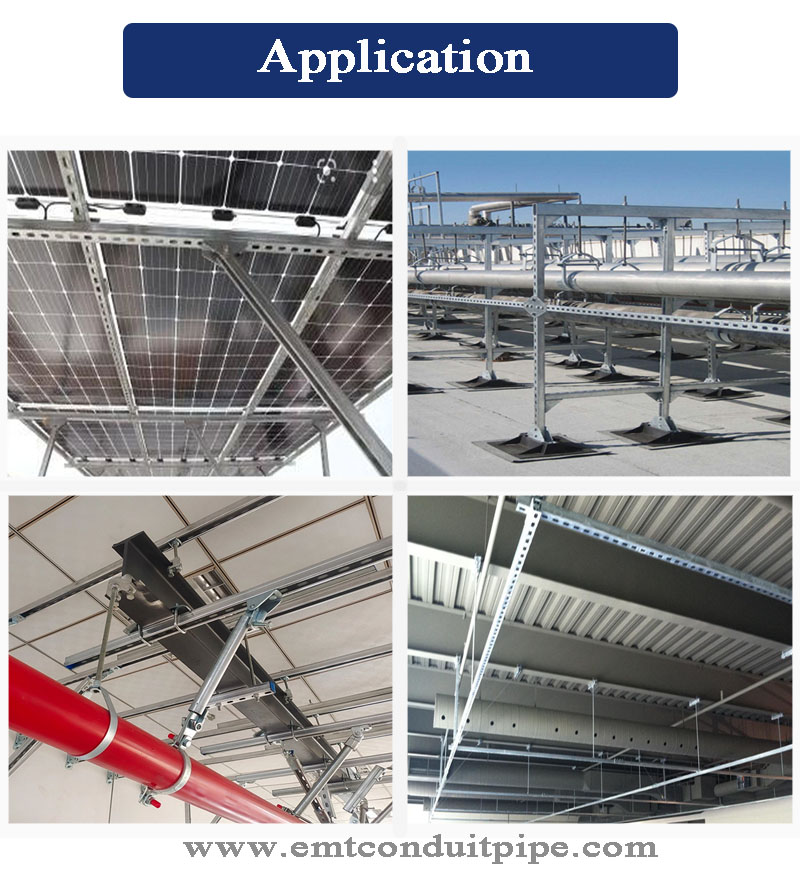

Application
Electrical conduit support systems
Cable tray support structures
HVAC and mechanical installations
Chemical plants and humid environments
Industrial facilities requiring corrosion protection
Seismic bracing systems

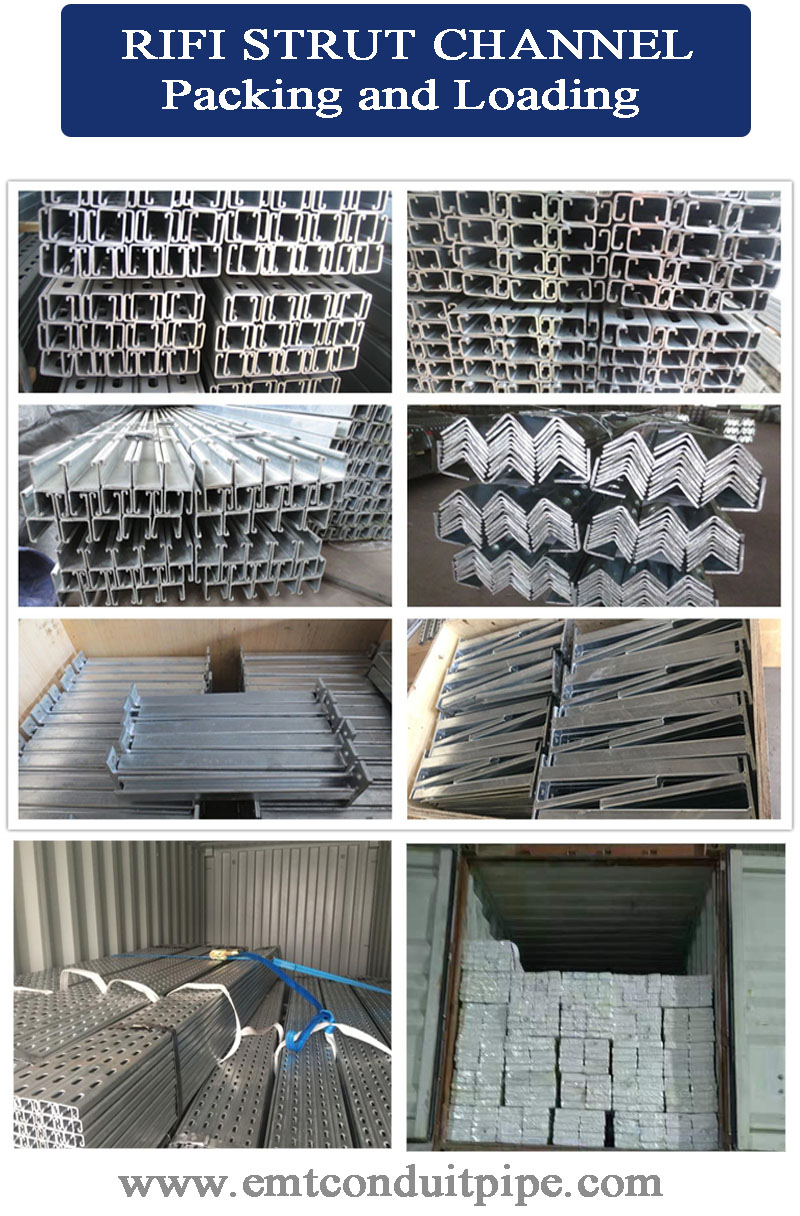

Packing
Bundled packing with steel straps
Plastic wrapping available
Pallet packing available
Customized packaging supported
Advantage
High load-bearing strength
Pre-galvanized surface for corrosion resistance
Slotted design for flexible installation
Compatible with full range of strut fittings
Easy cutting and assembly
Stable monthly production capacity

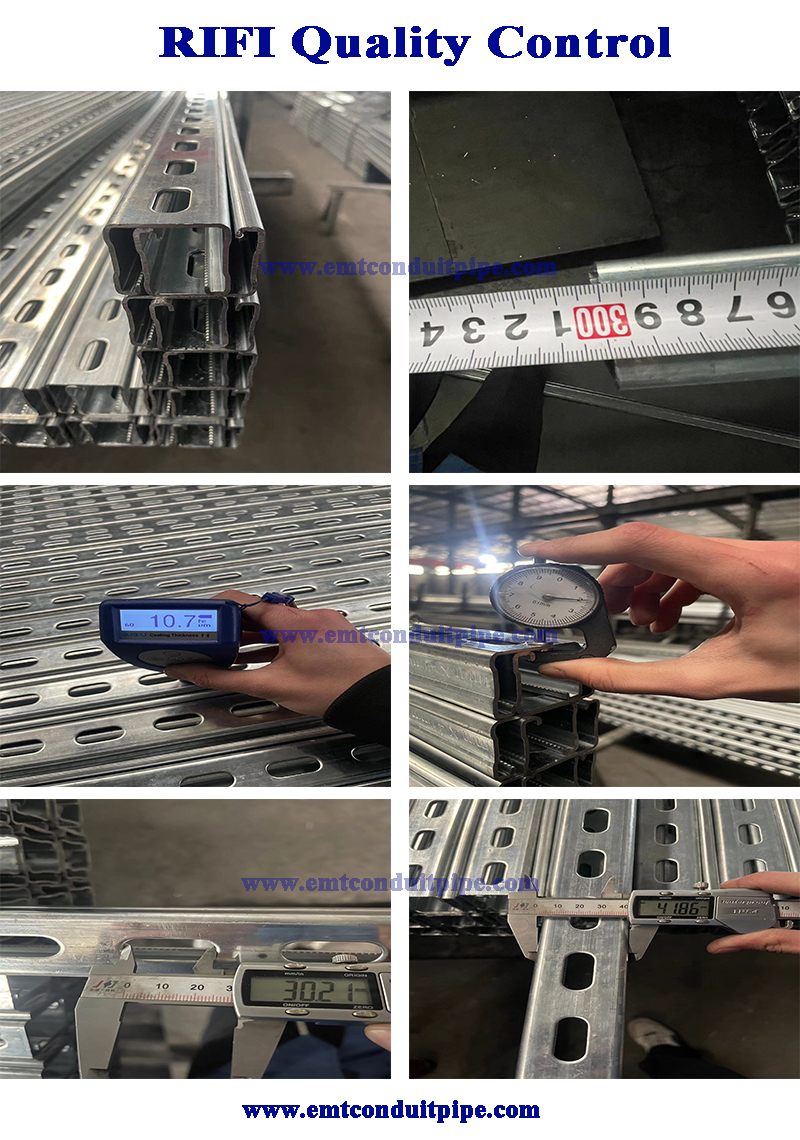

Strict quality control from raw material to finished product
