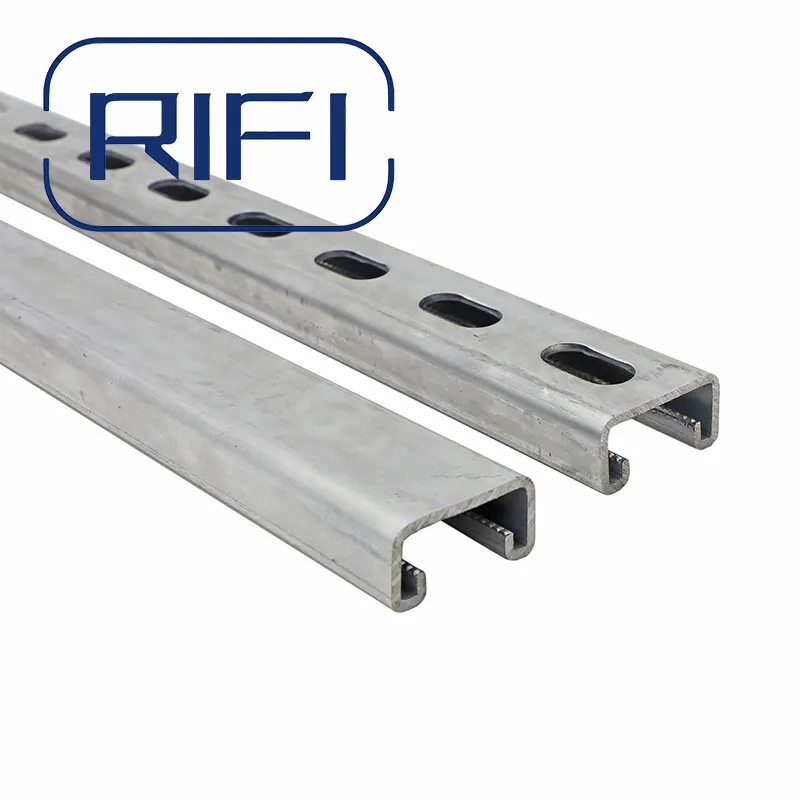

13/16" Unistrut Hot Dip Galvanized Slotted Channel
Description
The 13/16" Unistrut Hot Dip Galvanized Slotted Channel is designed for light to medium-duty support applications in electrical and mechanical installations. Manufactured from high-quality carbon steel and finished with hot dip galvanization, it provides excellent corrosion resistance for outdoor and humid environments.
The compact 13/16" profile makes it ideal for space-limited installations while maintaining reliable structural strength. The slotted design allows flexible positioning and easy mounting of pipe clamps, conduit supports, cable trays, and brackets. It is widely used in MEP systems, light-duty framing, and auxiliary support structures.
Specification
Product Name: 13/16" Unistrut Hot Dip Galvanized Slotted Channel
Material: Carbon Steel
Width: 13/16" (21mm)
Height: 13/16" (21mm)
Thickness: 12 Gauge / 14 Gauge (customizable)
Length: 10 ft / 20 ft (customizable)
Type: Slotted
Surface Treatment: Hot Dip Galvanized (HDG)
Load Capacity: According to thickness and installation method
OEM/ODM: Supported
| CAT# | Channel Dimension | Thickness | ||
|---|---|---|---|---|
| Plain Type/Slotted Type | Height “H” | Width “W” | Gauge | MM |
| RF 205/215 | 13/16"(21mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 305/315 | 1" (25mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 405/415 | 1-5/8" (41mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 605/615 | 2-7/16"(62mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 805/815 | 3-1/4"(82mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 204/214 | 13/16"(21mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 304/314 | 1" (25mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 404/414 | 1-5/8" (41mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 604/614 | 2-7/16"(62mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 804/814 | 3-1/4"(82mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 203/213 | 13/16"(21mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 303/313 | 1" (25mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 403/413 | 1-5/8" (41mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 202/212 | 13/16"(21mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| RF 302/212 | 1" (25mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| RF 402/412 | 1-5/8" (41mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| For Serrated channel add " S"after the CAT# No. Ex： RF 205S | ||||
| For Ribbed channel add " R" after the CAT# No. Ex： RF 205R | ||||
| For Serrated and Ribbed channel add " SR "after the CAT# No. Ex： RF 520SR |
Application
Electrical conduit support
Cable tray support systems
Light-duty mechanical installations
Wall-mounted bracket systems
MEP support structures
Packing
Bundled packing with steel straps
Plastic wrapping available
Customized packaging supported
Advantage
High load-bearing strength
Pre-galvanized surface for corrosion resistance
Slotted design for flexible installation
Compatible with full range of strut fittings
Easy cutting and assembly
Stable monthly production capacity
Strict quality control from raw material to finished product
