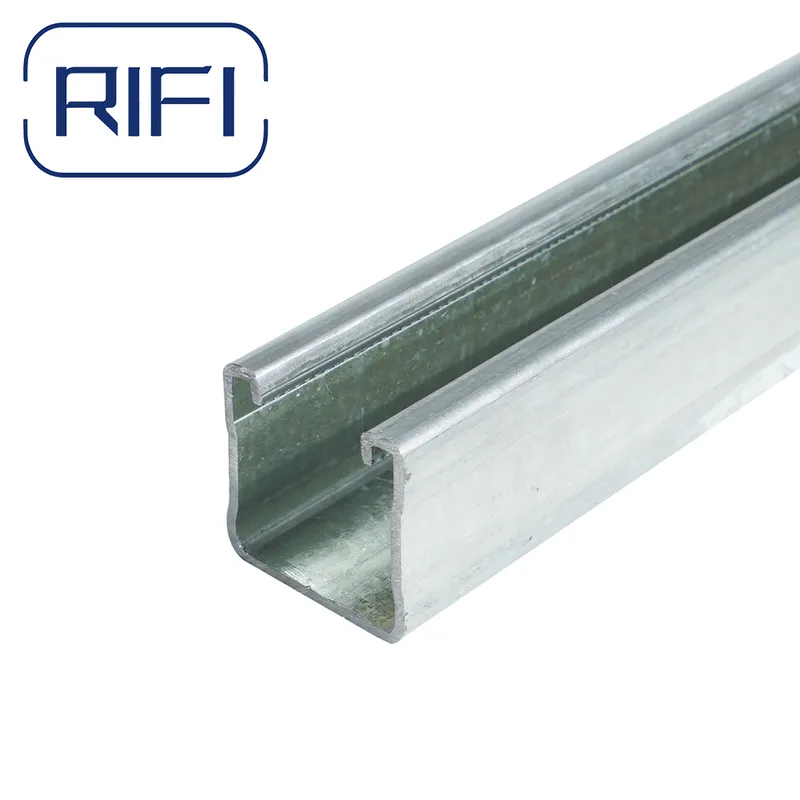

41mm × 41mm Pre-Galvanized Solid Strut Channel
Description
The 41mm × 41mm Pre-Galvanized Solid Strut Channel is designed for heavy-duty structural support applications in electrical, mechanical, and industrial installations. Manufactured from high-quality pre-galvanized steel, it provides excellent load-bearing strength and corrosion resistance for indoor and general construction environments.
The solid (unslotted) design offers higher structural integrity compared to slotted types, making it suitable for customized drilling, welding, and applications requiring enhanced rigidity. It is widely used in MEP support systems, cable tray frameworks, equipment mounting structures, and seismic bracing systems.
Specification
Product Name: 41mm × 41mm Pre-Galvanized Solid Strut Channel
Material: Pre-Galvanized Steel (GI)
Size: 41mm × 41mm
Thickness: 1.2mm – 2.5mm
Length: 3m / 6m (customizable)
Slot Type: Slotted
Surface Treatment: Pre-Galvanized
Load Capacity: According to thickness and installation method
OEM/ODM: Supported
| CAT# | Channel Dimension | Thickness | ||
|---|---|---|---|---|
| Plain Type/Slotted Type | Height “H” | Width “W” | Gauge | MM |
| RF 205/215 | 13/16"(21mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 305/315 | 1" (25mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 405/415 | 1-5/8" (41mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 605/615 | 2-7/16"(62mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 805/815 | 3-1/4"(82mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 204/214 | 13/16"(21mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 304/314 | 1" (25mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 404/414 | 1-5/8" (41mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 604/614 | 2-7/16"(62mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 804/814 | 3-1/4"(82mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 203/213 | 13/16"(21mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 303/313 | 1" (25mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 403/413 | 1-5/8" (41mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 202/212 | 13/16"(21mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| RF 302/212 | 1" (25mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| RF 402/412 | 1-5/8" (41mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| For Serrated channel add " S"after the CAT# No. Ex： RF 205S | ||||
| For Ribbed channel add " R" after the CAT# No. Ex： RF 205R | ||||
| For Serrated and Ribbed channel add " SR "after the CAT# No. Ex： RF 520SR |
Application
Electrical conduit support systems
Cable tray support structures
HVAC and mechanical installations
Seismic bracing systems
Solar mounting structures
Industrial framing systems
Packing
Bundled packing with steel straps
Plastic wrapping available
Pallet packing available
Customized packaging supported
Advantage
High load-bearing strength
Pre-galvanized surface for corrosion resistance
Slotted design for flexible installation
Compatible with full range of strut fittings
Easy cutting and assembly
Stable monthly production capacity
Strict quality control from raw material to finished product
Tags
41x41 Solid Strut Channel, Unslotted Strut Channel, Pre-Galvanized Strut Channel, GI Support Channel, Heavy Duty Strut System, MEP Support Channel, Metal Framing System
