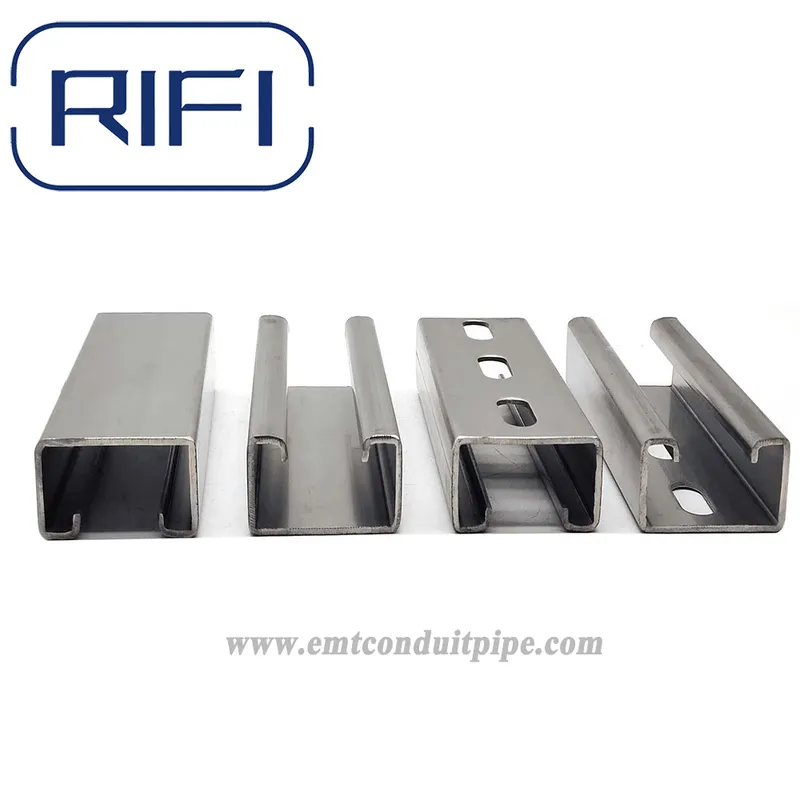

Stainless Steel Unistrut Channel
Description
The Stainless Steel Unistrut Channel is designed for high-corrosion and high-strength support applications in industrial, marine, chemical, and outdoor environments. Manufactured from premium-grade stainless steel (SS304 / SS316), it offers excellent corrosion resistance, durability, and load-bearing capacity.
The channel is ideal for supporting electrical conduits, cable trays, HVAC systems, piping, and mechanical equipment in harsh environments. Its slotted or solid design allows flexible installation and compatibility with a wide range of strut fittings and accessories.
Specification
Product Name: Stainless Steel Unistrut Channel
Material: Stainless Steel SS304 / SS316
Common Sizes: 41×21mm, 41×41mm, 41×62mm, 41×82mm (customizable)
Thickness: 1.5mm – 2.5mm
Length: 3m / 6m (customizable)
Type: Slotted / Solid (available)
Surface Treatment: Natural stainless finish / Brushed / Polished
Load Capacity: According to thickness and installation method
OEM/ODM: Supported
| CAT# | Channel Dimension | Thickness | ||
|---|---|---|---|---|
| Plain Type/Slotted Type | Height “H” | Width “W” | Gauge | MM |
| RF 205/215 | 13/16"(21mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 305/315 | 1" (25mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 405/415 | 1-5/8" (41mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 605/615 | 2-7/16"(62mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 805/815 | 3-1/4"(82mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 204/214 | 13/16"(21mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 304/314 | 1" (25mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 404/414 | 1-5/8" (41mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 604/614 | 2-7/16"(62mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 804/814 | 3-1/4"(82mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 203/213 | 13/16"(21mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 303/313 | 1" (25mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 403/413 | 1-5/8" (41mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 202/212 | 13/16"(21mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| RF 302/212 | 1" (25mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| RF 402/412 | 1-5/8" (41mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| For Serrated channel add " S"after the CAT# No. Ex： RF 205S | ||||
| For Ribbed channel add " R" after the CAT# No. Ex： RF 205R | ||||
| For Serrated and Ribbed channel add " SR "after the CAT# No. Ex： RF 520SR |
Application
Marine and coastal electrical installations
Chemical and corrosive environments
Outdoor MEP support systems
Cable tray and conduit support
HVAC and piping installations
Industrial and food processing facilities
Packing
Bundled packing with stainless steel or plastic straps
Protective film or plastic wrapping available
Pallet packing available
Customized packaging supported
Advantage
Bundled packing with stainless steel or plastic straps
Protective film or plastic wrapping available
Pallet packing available
Customized packaging supported
