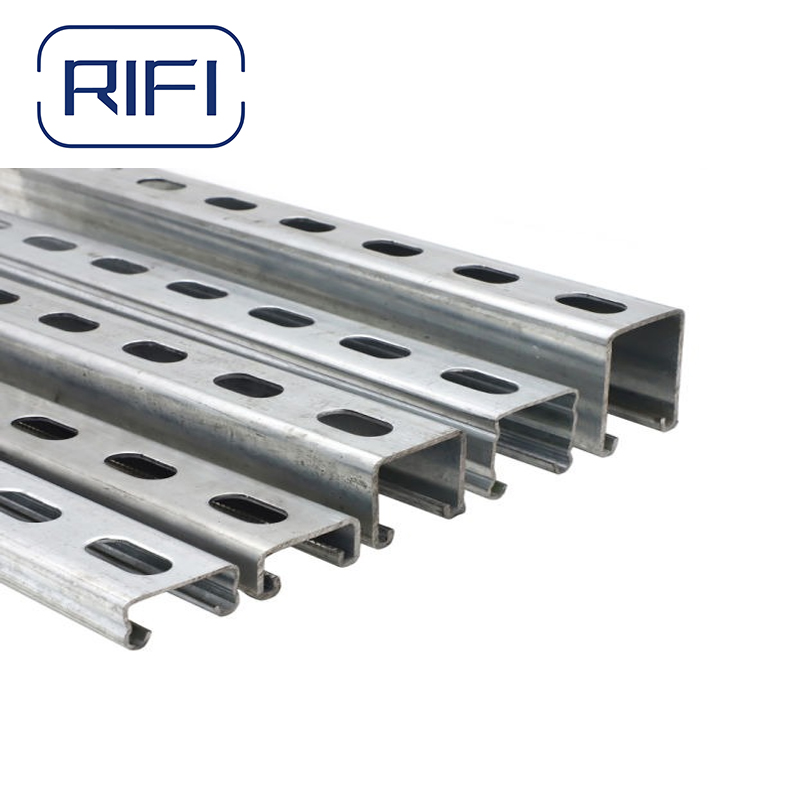

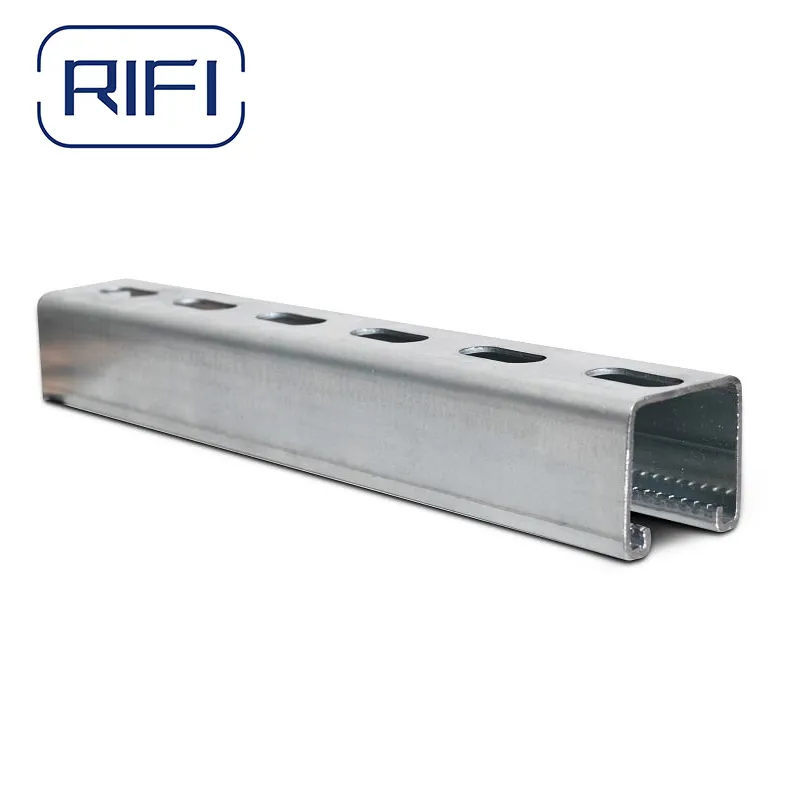

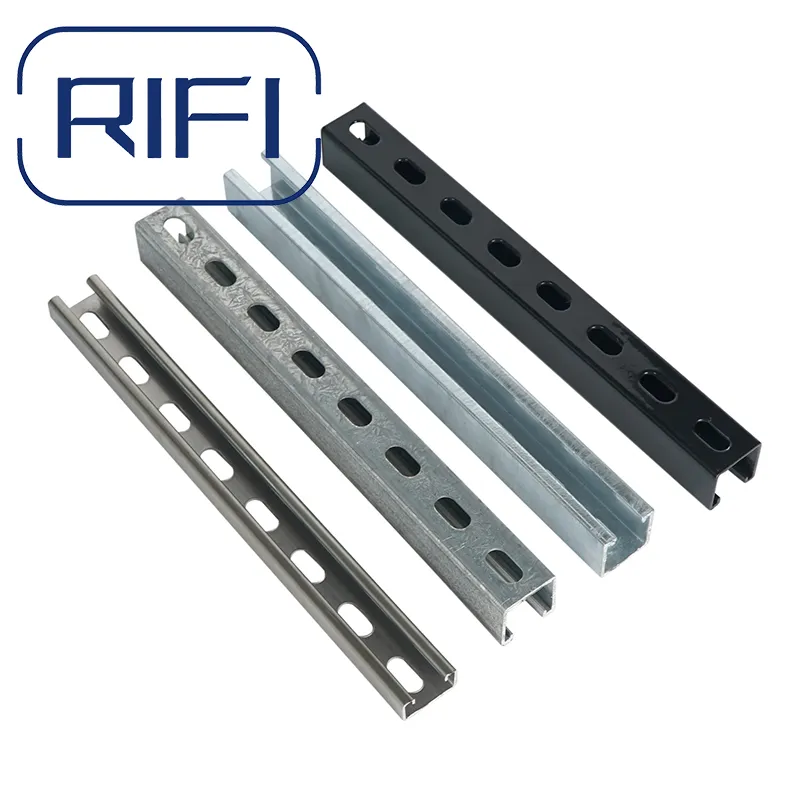

41mm × 41mm Pre-Galvanized Slotted Strut Channel
Description
The 41mm × 41mm Pre-Galvanized Slotted Strut Channel is designed for structural support and cable management applications in electrical, mechanical, and seismic systems. Manufactured from high-quality pre-galvanized steel, it provides strong load-bearing performance and excellent corrosion resistance.
The slotted design allows flexible installation and easy adjustment for brackets, pipe clamps, cable trays, and support systems. It is widely used in MEP installations, solar mounting structures, and industrial support frameworks.
Specification
Product Name: 41mm × 41mm Pre-Galvanized Slotted Strut Channel
Material: Pre-Galvanized Steel (GI)
Size: 41mm × 41mm
Thickness: 1.2mm – 2.5mm
Length: 3m / 6m (customizable)
Slot Type: Slotted
Surface Treatment: Pre-Galvanized
Load Capacity: According to thickness and installation method
OEM/ODM: Supported
| CAT# | Channel Dimension | Thickness | ||
|---|---|---|---|---|
| Plain Type/Slotted Type | Height “H” | Width “W” | Gauge | MM |
| RF 205/215 | 13/16"(21mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 305/315 | 1" (25mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 405/415 | 1-5/8" (41mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 605/615 | 2-7/16"(62mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 805/815 | 3-1/4"(82mm) | 1-5/8"(41mm) | 12 | 2.5mm |
| RF 204/214 | 13/16"(21mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 304/314 | 1" (25mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 404/414 | 1-5/8" (41mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 604/614 | 2-7/16"(62mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 804/814 | 3-1/4"(82mm) | 1-5/8"(41mm) | 14 | 2.0mm |
| RF 203/213 | 13/16"(21mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 303/313 | 1" (25mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 403/413 | 1-5/8" (41mm) | 1-5/8"(41mm) | 16 | 1.5mm |
| RF 202/212 | 13/16"(21mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| RF 302/212 | 1" (25mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| RF 402/412 | 1-5/8" (41mm) | 1-5/8"(41mm) | 18 | 1.2mm |
| For Serrated channel add " S"after the CAT# No. Ex： RF 205S | ||||
| For Ribbed channel add " R" after the CAT# No. Ex： RF 205R | ||||
| For Serrated and Ribbed channel add " SR "after the CAT# No. Ex： RF 520SR |
Application
Electrical conduit support systems
Cable tray support structures
HVAC and mechanical installations
Seismic bracing systems
Solar mounting structures
Industrial framing systems
Packing
Bundled packing with steel straps
Plastic wrapping available
Pallet packing available
Customized packaging supported
Advantage
High load-bearing strength
Pre-galvanized surface for corrosion resistance
Slotted design for flexible installation
Compatible with full range of strut fittings
Easy cutting and assembly
Stable monthly production capacity
Strict quality control from raw material to finished product
