| Place of Origin: | China |
|---|---|
| Brand Name: | RIFI |
| Certification: | ISO |
| Model Number: | GFC038-400 |
| Minimum Order Quantity: | 1000 meter |
| Price: | $0.8-20/m |
| Packaging Details: | carton / plastic bag packing |
| Delivery Time: | 15-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 meter per month |
| Product Name: | Galvanized Steel Flexible Conduit | Size: | 1/2"-4" |
|---|---|---|---|
| Material: | Galvanized Steel | Standard: | American Standard |
| Color: | Silver | Type: | Flexible |
| Application: | Electric Cable Wire Protection,Electrical Raceway | Packing: | Roll |
| Highlight: | Flexible Conduit Galvanized Steel Strip,Galvanzied Steel Flexible Conduit |
||

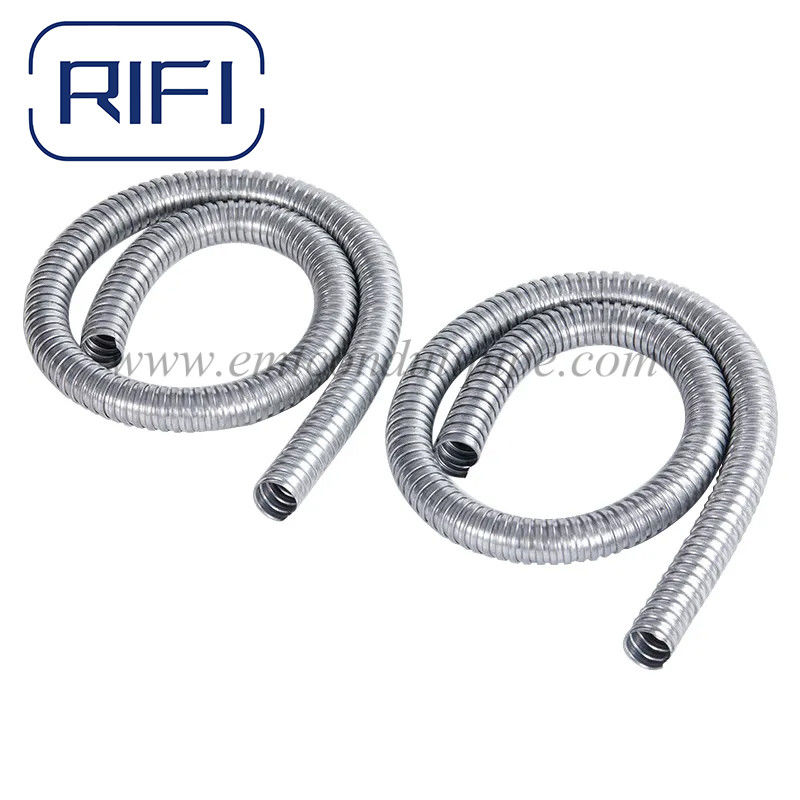

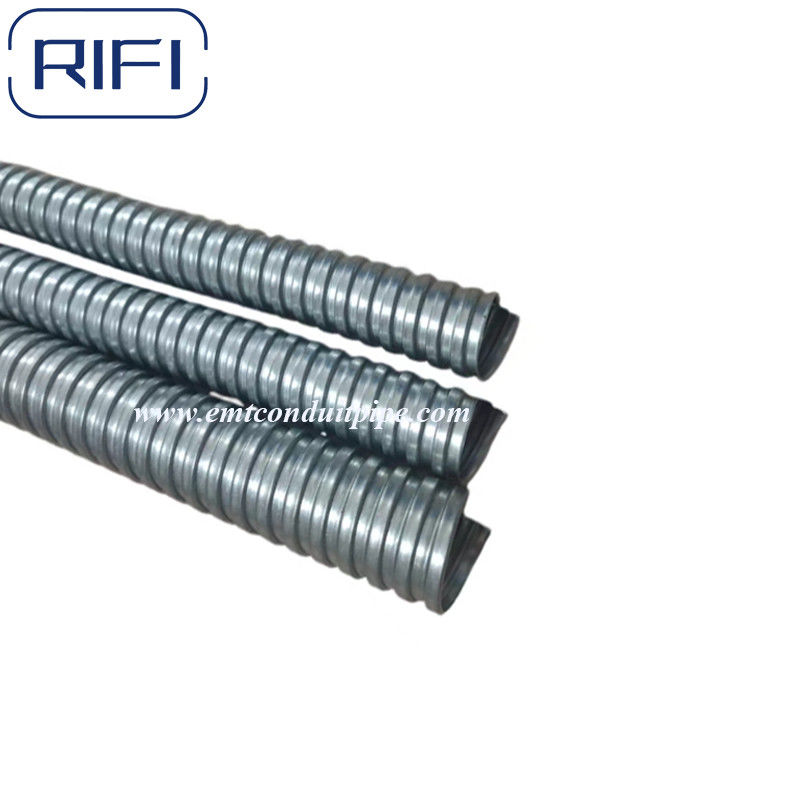

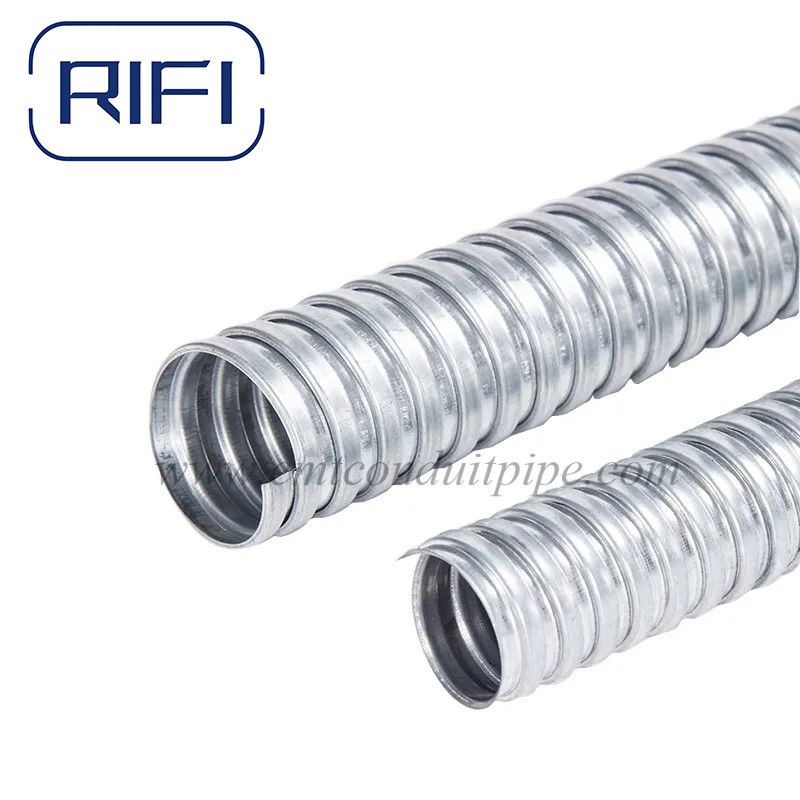

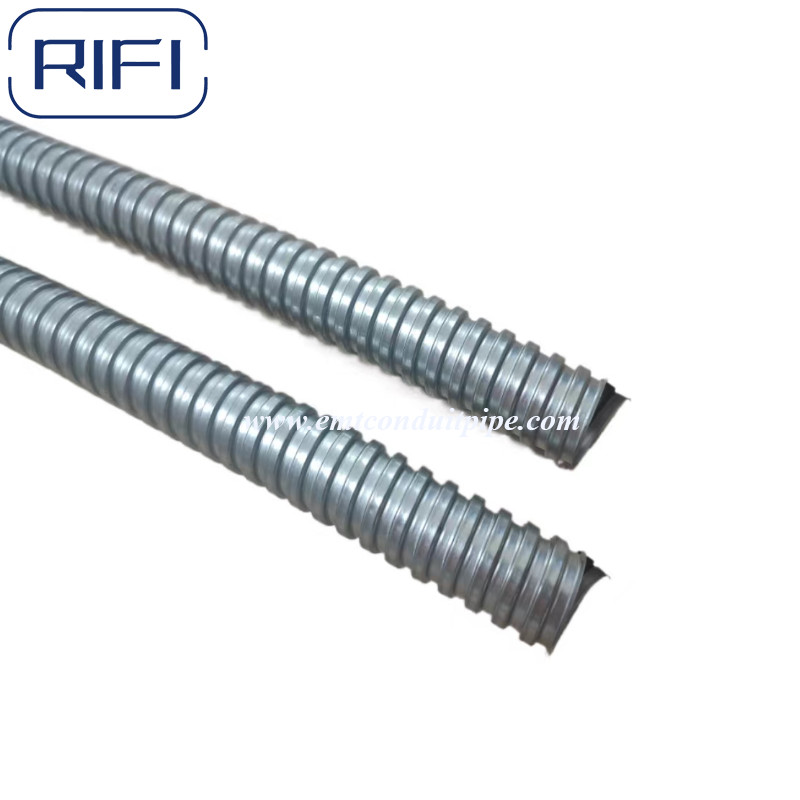

3/4" Galvanized Steel Electrical Flexible Conduit for Wire and Cable Protection
Galvanized steel electrical flexible conduit is made of 304 stainless steel or 301 stainless steel, and is used as a wire and cable protection tube for wires, cables, and automatic instrument signals, with specifications from 3mm to 150mm. Ultra-small diameter metal hose (inner diameter 3mm-25mm) is mainly used for precision optical ruler sensor line protection, industrial sensor line protection, with good softness, corrosion resistance, high temperature resistance, wear resistance, tensile resistance.
| Product Name | Galvanized Steel Electrical Flexible Conduit for Wire and cable protection |
| Place of origin | China |
| Material | Galvanized Steel |
| Size | 3/8"-4" |
| Function | protecting wires/cables and provide insulation, waterproofing as well as beautiful outlook of the wiring. |
3/4" Galvanized Steel Electrical Flexible Conduit for Wire and Cable Protection
| Trade size | Inside Diameter(mm) | Outside Diameter(mm) | Bending radius(mm) | ||
| Min | Max | Min | Max | Min | |
| 3/8" | 12.30 | 12.8 | 15.7 | 16.20 | 50 |
| 1/2" | 15.80 | 16.30 | 19.20 | 19.70 | 65 |
| 3/4" | 20.70 | 21.20 | 24.50 | 25.10 | 75 |
| 1" | 26.00 | 26.60 | 30.40 | 31.00 | 100 |
| 1-1/4" | 34.70 | 35.40 | 39.60 | 40.30 | 125 |
| 1-1/2" | 40.00 | 40.60 | 45.20 | 45.80 | 150 |
| 2" | 51.30 | 51.90 | 56.50 | 57.10 | 175 |
| 2-1/2" | 63.00 | 63.60 | 70.20 | 70.80 | 200 |
| 3" | 78.00 | 78.70 | 85.20 | 85.90 | 225 |
| 4" | 101.60 | 102.60 | 108.50 | 109.50 | 275 |

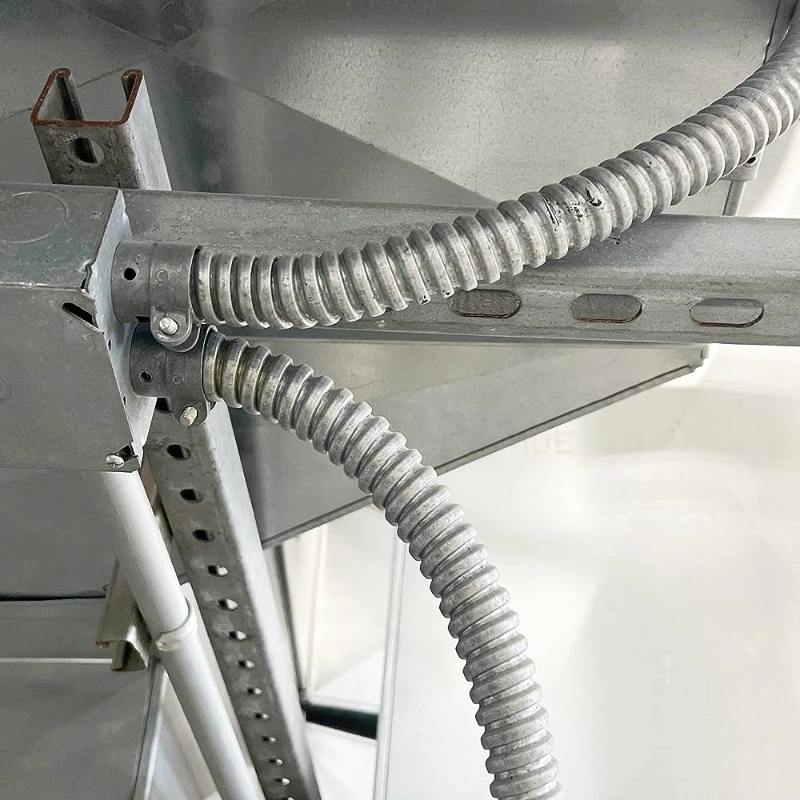

Galvanized Steel Electrical Flexible Conduit for Wire and cable protection Protecting wires and cable in Power plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.
