| Place of Origin: | China |
|---|---|
| Brand Name: | RIFI |
| Certification: | ISO |
| Model Number: | PFC |
| Minimum Order Quantity: | 1000 Meter |
| Price: | 0.01-2 |
| Packaging Details: | plastic bag packing |
| Delivery Time: | 15-30 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500000 meter per month |
| Usage: | Protecting Wires/Cables | Trade Size: | 3/8"-4" |
|---|---|---|---|
| Surface Finish: | PVC Coated | Product Name: | Electrical PVC Coated Flexible Steel Conduit |
| Supply Ability: | 100000 Meter /Month | Surface Treatment: | Galvanized Steel |
| Application: | Wiring | Material: | Galvanized Steel |
| Function: | Protecting Wires/Cables And Provide Insulation |
Product Description

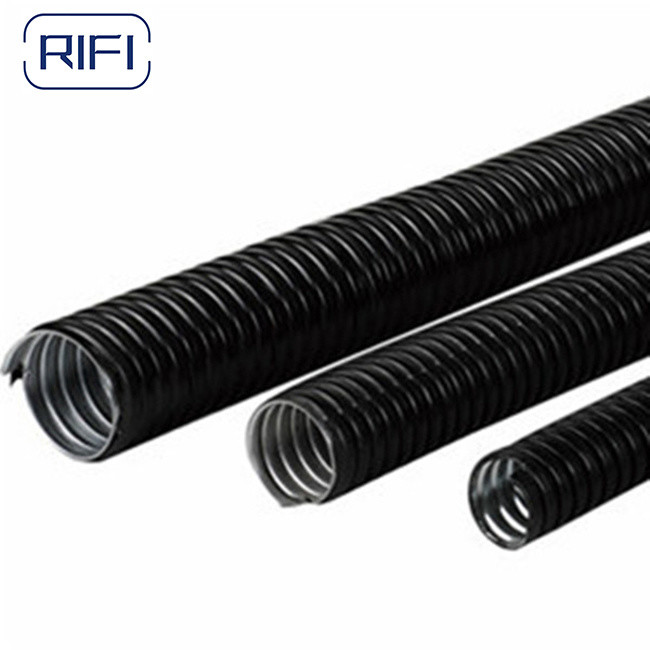

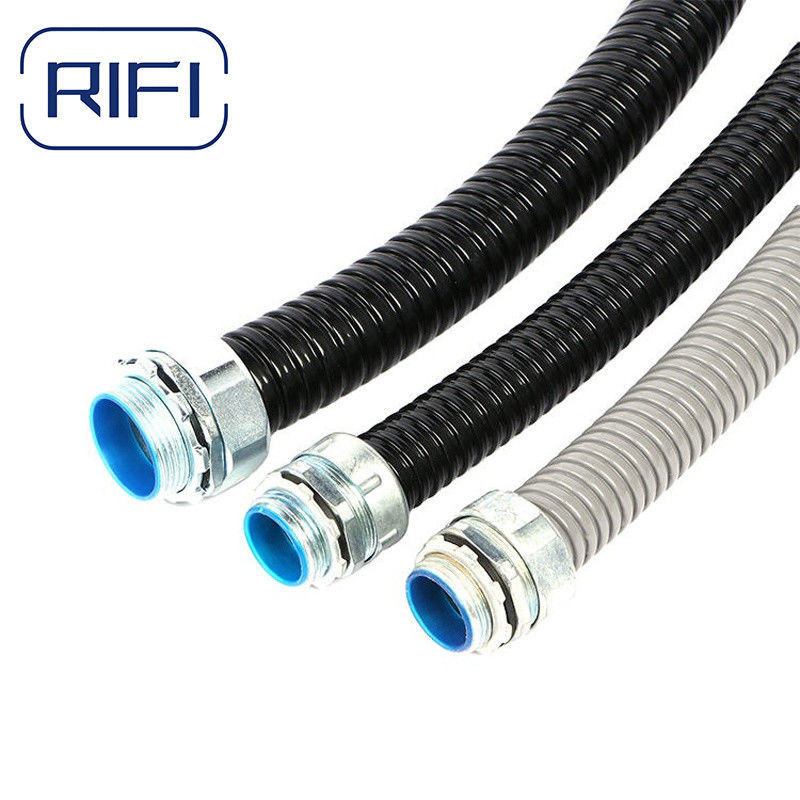

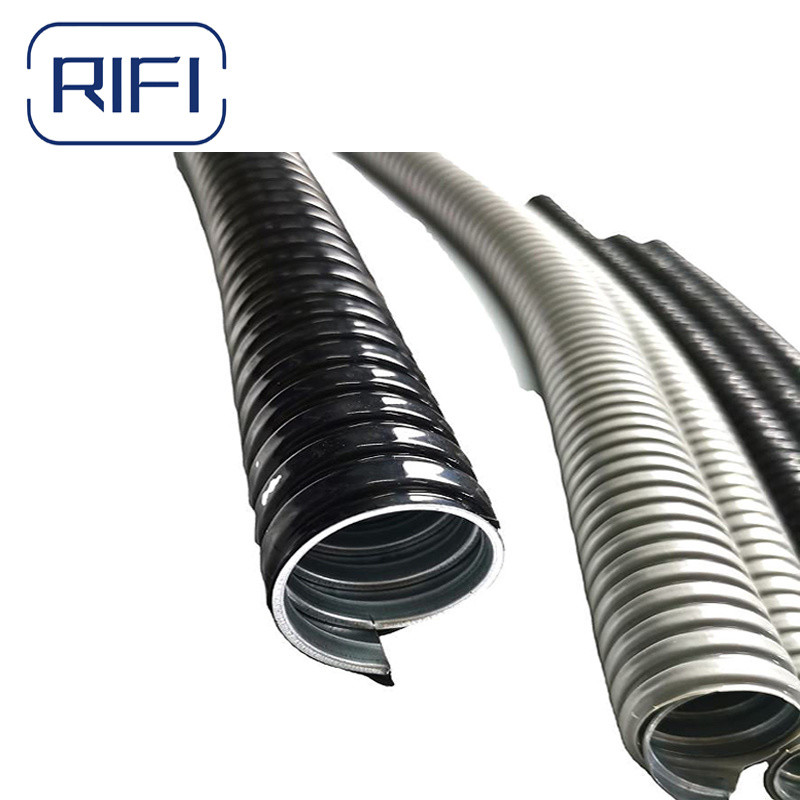

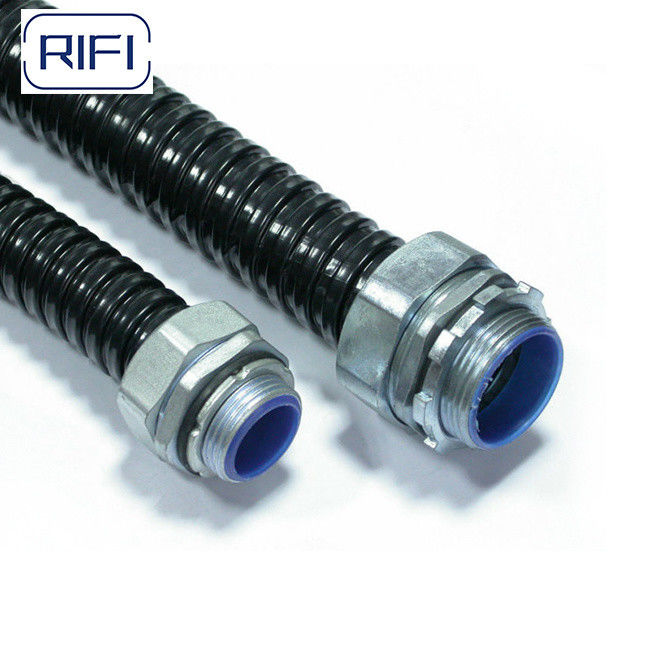

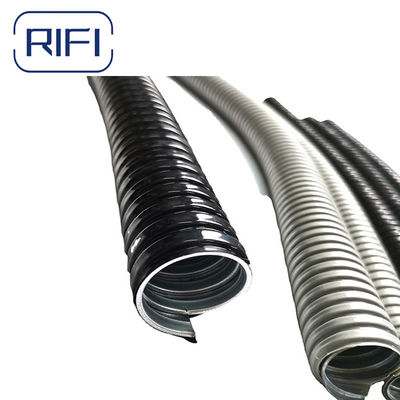

Black Orange Grey PVC Flexible Conduit Electrical Galvanized Steel Flexible Pipe Conduit
PVC coated flexible conduit is a type of electrical conduit used for protecting and routing electrical wires and cables in various applications. It is designed to provide a flexible and durable enclosure that offers protection against moisture, corrosion, oil, chemicals, and other environmental factors.
Material: PVC (polyvinyl chloride) coated flexible conduit consists of a flexible metal core (usually made of steel or aluminum) that is coated with a layer of PVC. This combination provides the conduit with flexibility, strength, and resistance to environmental hazards.
Flexibility: The flexible metal core allows the conduit to be easily bent and routed, making it suitable for installations in tight or challenging spaces, as well as applications where the conduit needs to follow curves or bends.
PVC Coating: The PVC coating on the exterior of the conduit provides protection against moisture, chemicals, UV radiation, and other corrosive elements. It also helps to insulate the wires and cables inside, offering electrical safety.
| Trade size | Inside Diameter(mm) | Outside Diameter(mm) | Bending radius(mm) | ||
| Min | Max | Min | Max | Min | |
| 3/8" | 12.30 | 12.8 | 16.7 | 17.20 | 50 |
| 1/2" | 15.80 | 16.30 | 20.20 | 20.70 | 65 |
| 3/4" | 20.70 | 21.20 | 25.50 | 26.10 | 75 |
| 1" | 26.00 | 26.60 | 31.6 | 32.2 | 100 |
| 1-1/4" | 34.70 | 35.40 | 40.8 | 41.5 | 125 |
| 1-1/2" | 40.00 | 40.60 | 46.60 | 47.20 | 150 |
| 2" | 51.30 | 51.90 | 58.10 | 58.70 | 175 |
| 2-1/2" | 63.00 | 63.60 | 71.80 | 72.40 | 200 |
| 3" | 78.00 | 78.70 | 87.20 | 87.90 | 225 |
| 4" | 101.60 | 102.60 | 112.20 | 112.30 | 275 |
Application:
Black Orange Grey PVC Flexible Conduit Electrical Galvanized Steel Flexible Pipe Conduit Protecting wires and cable in Power plant, Power transmission system, communication system, building factory, railway, train, transportation system project, air conditioner, various machines, automates controlling plant. And protecting the electrical wire or cable outside the construction and plant.
